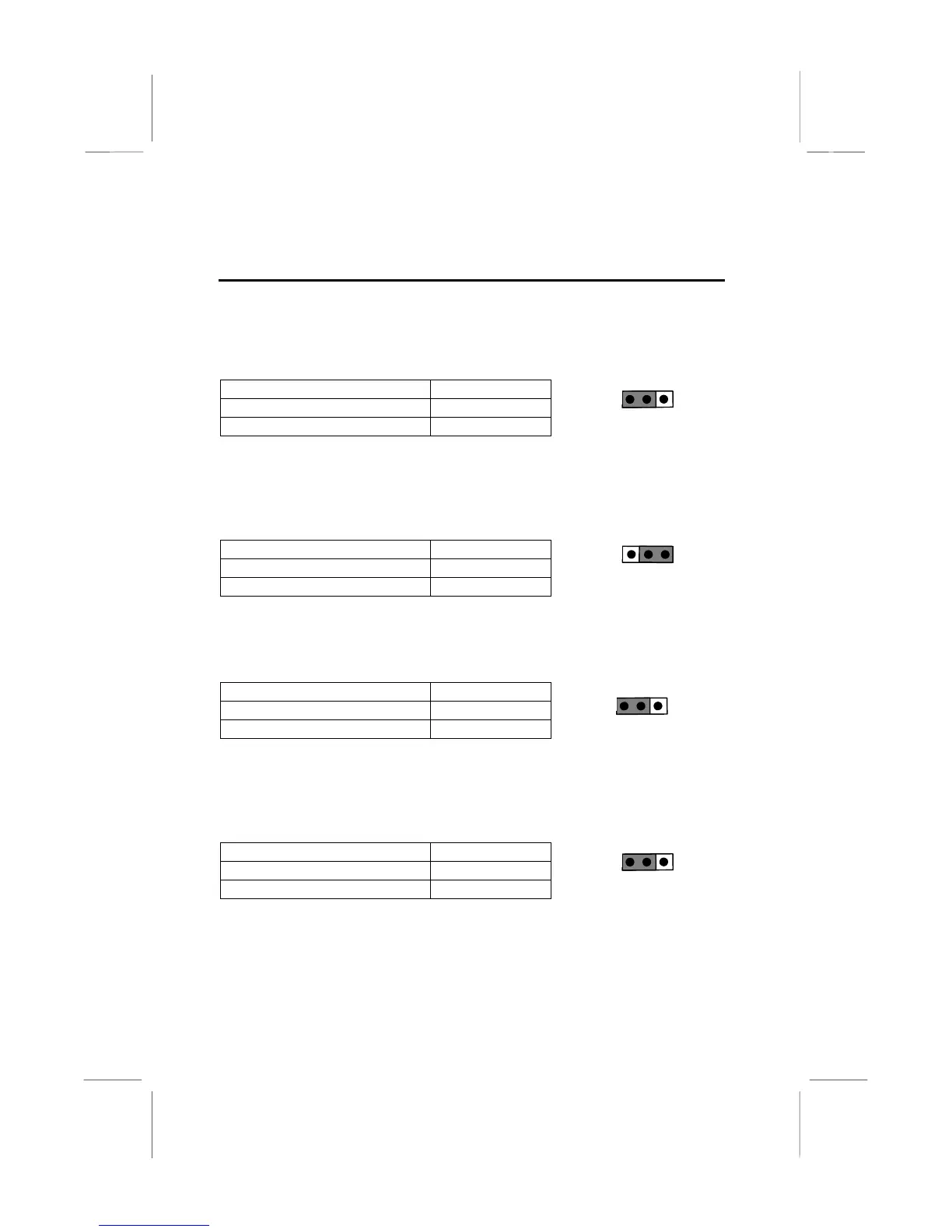

Appendix 1: Quick Jumper Setting Reference
JP1: Clear CMOS memory jumper
Use this 3-pin jumper to clear all the current data stored in the CMOS
memory.
Function Jumper Cap
Normal operation Short pins 1-2
Clear CMOS Short pins 2-3
JP2: Keyboard power on jumper
Use this 3-pin jumper to enable keyboard power on with hot keys or
password.
Function Jumper Cap
Disable keyboard power on Short pins 1-2
Enable keyboard power on Short pins 2-3
JP7: Suspend-to-RAM jumper
Use this 3-pin jumper to enable the Suspend-to-RAM function.
Function Jumper Cap
Enable Suspend-to-RAM Short pins 1-2
Disable Suspend-to-RAM Short pins 2-3
JP8: Flash BIOS jumper
Use this 3-pin jumper to enable or disable Flash BIOS protection. If
enabled, the existing BIOS cannot be flashed with another version.
Function Jumper Cap
Enable Flash BIOS Short pins 1-2
Disable Flash BIOS Short pins 2-3
1 2 3
JP1
1 2 3
JP7
1 2 3
JP8
1 2 3
JP2
