gate tamper feature
Many different safety devices can be wired to the GATE TAMPER. After device is wired to relay, it MUST be ARMED to function.
Security
Camera
EX
PRIMARY/
SECONDARY
LIN
K
OK
D
ND
G
NUAL RELEASE
AD / CARD
G
ND
(
-
)
(+)
CLO
CO
STOP
O
PEN
24VDC
OU
TP
UT
OUTPUT
GND
L
OO
P PWR
P
RIMAR
Y
SECONDA
O
LOOP
L
OOP
ALARM
OSING
PROGRAMM
LAR MODE
P
R
OG
RAM
OPE
G
ATE
S
PEED
EN
R
E
S
ET
/
MANUAL
R
ELEA
SE
ID
G
MODU
PORT
ID PLU
G
ERR
OR
Q
UI
CK
CL
OSE
GAT
O
FF
1
2
3
4
5
6
1
2
3
4
5
6
MIN
MAX
O
N
MODE A

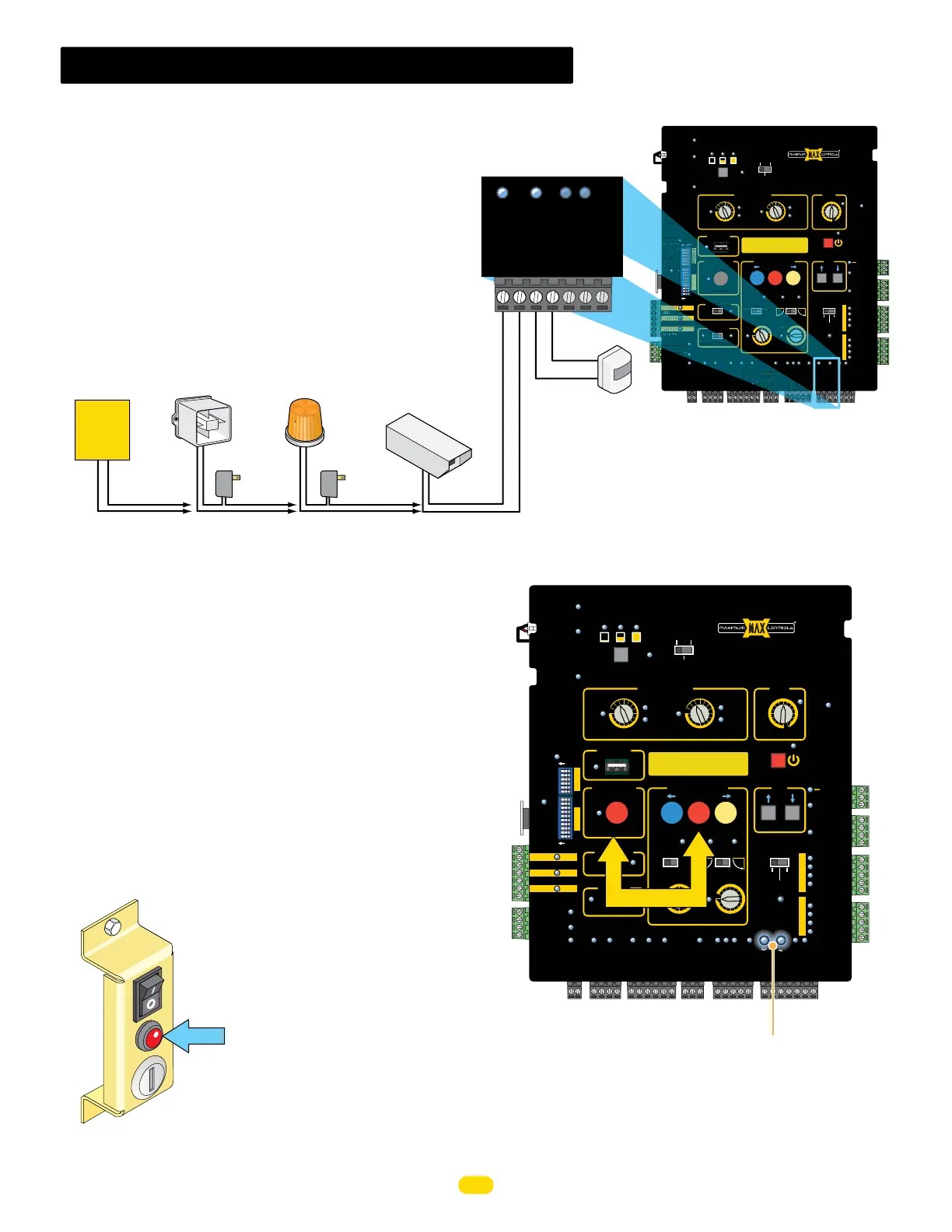

Wiring Gate Tamper
The GATE TAMPER can be used for various functions such as
turning a warning light, siren or camera on when the gate is
tampered with (Vandalized Gate).
The gate operator defines a “Vandalized Gate” as UNAUTHORIZED
movement of the gate. This can occur if the chain is dropped and
gate is manually moved from the closed position or the gate is
forced open from the closed position without authorization.
TAMPER NO/Com Relay: Connect a warning light, siren, camera or
an existing alarm system to relay.
TAMPER IN/GND Input: Connect a sensor device to input. When
Tamper In/GND gets triggered, device that is wired to Tamper relay
(NO/Com) will activate.
Arm Gate Tamper (Turn ON)
Siren
Warning
Light
Motion
Sensor
Power
Power
Existing
Building
Alarm
System
The GATE TAMPER is factory set to OFF (Unarmed). It MUST be turned
ON (Armed) or safety device connected to the GATE TAMPER relay will
NOT activate.
• Press and HOLD the STOP button while simultaneously pressing
the PROGRAM button. Hold BOTH buttons down until
Gate Tamper LEDs light up then turn OFF and a beep is heard.
Gate Tamper is now ARMED (ON).
NOTE: DO NOT press the PROGRAM button before
the STOP button or Gate Tamper will NOT Arm.
• To UNARM (Turn OFF) Gate Tamper repeat above step.
When GATE TAMPER is triggered, the
OPERATOR ALARM and GATE TAMPER
relay will activate. The operator will shut
down all operating functions.
The alarm reset button MUST be pressed to
turn OFF the alarm and reset the operator.
If GATE TAMPER is armed and relay is connected to
an existing building alarm system, then they will get a
triggering of their alarm system and should be
notified of the situation.
Alarm Reset Button
GND GND JOG LEFT JOG RIGHT TAMPER IN TAMPER NO COM
N
N
N
O
O
O
O
O
O
O
O
Gate Tamper LEDs
Press buttons together
