NC
NC
NC
Power
Additional Unlearned Input
Factory Learned Input
Factory Learned Input
Unlearned Input
Unlearned Input
Additional Unlearned
Input
Power
NC
Normally Closed Photocells
Closing Direction -
Factory Learned Input,
does NOT need to be learned.
Opening Direction -
Factory Learned Input,
does NOT need to be learned.
10K Sensing Edges
Bi-Parting Gates NOTE: Connect
sensors to EITHER operator
when using dual gates.
Learned Inputs NOTE: Connect sensors will function when they are NOT
learned but they will NOT be MONITORED and NOT recommended.
See pages 23-26
for specific wiring.
Opening Direction
must be learned to be
monitored, see page 12.
Closing Direction
must be learned to be
monitored, see page 12.
MAG
LOCK
UL
ENTRAP
MAGLOCK
DELAY
GND
OPEN ONLY NC
OPEN ONLY 10K
PHOTO CLS NC
OPEN/CLS NC
GND
12VDC OUT
GND
GND
GND
JOG LEFT
JOG RIGHT
TAMPER IN
TAMPER NO
COM
CLS ONLY 10K
OPEN/CLS 10K
12VDC OUT
NO
COM
NC
LEFT RIGHT
OFF 2.5 sec
1.5 sec
UL SENSOR N.C.UL SENSOR 10K

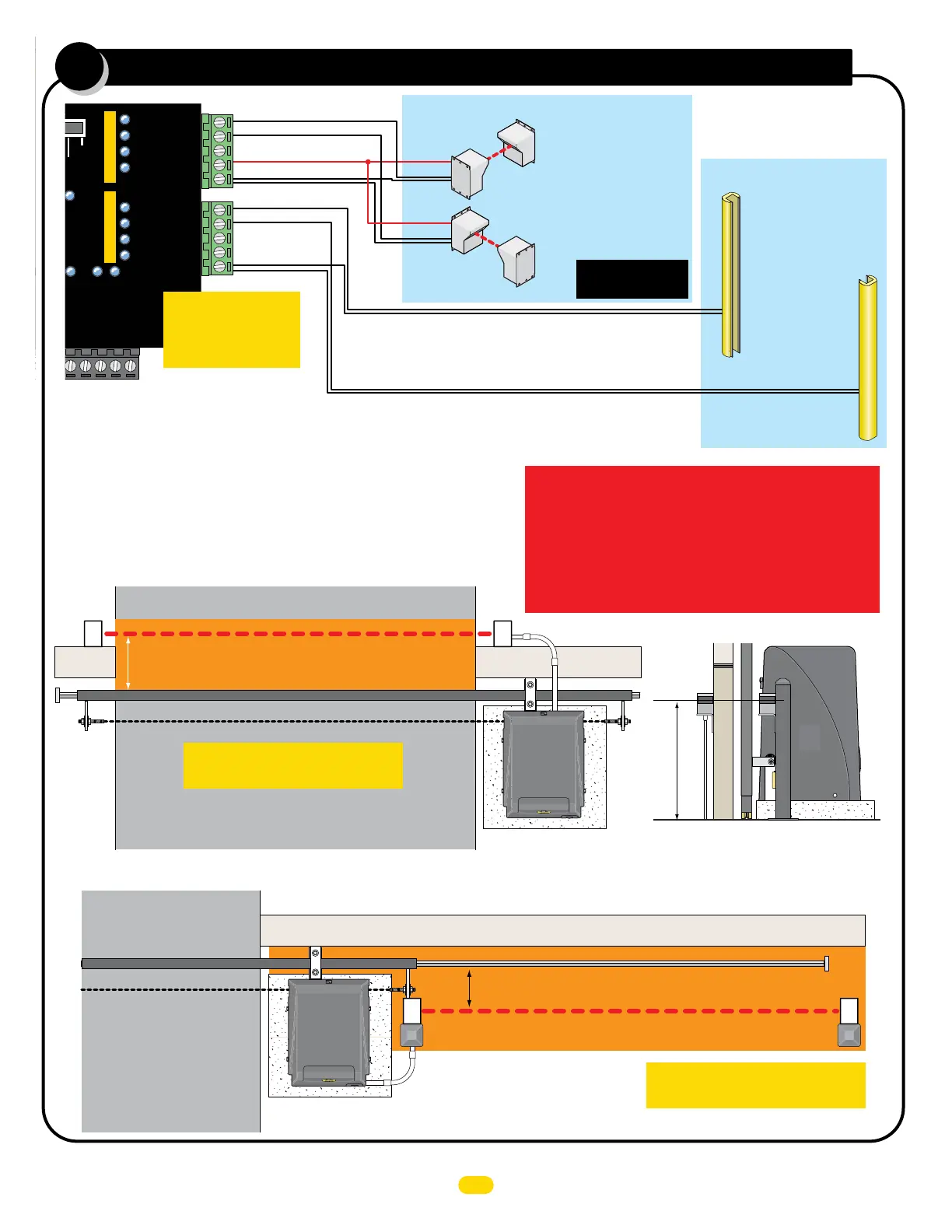

entrapment protection wiring
5
Entrapment Protection Device Options and Locations:
Beam: 5” or LESS
from CLOSED gate.
Conduit
Entrapment Area
CLOSING Direction Photocell
Wall
Gate Closed
Outside Property
Inside Property
Continued on next page.
IMPORTANT: Photocells MUST
be in alignment or fault will occur.
Gate
Wall
Outside
Property
Inside
Property
Entrapment Area
Photo Beam
OPENING Direction Photocell
Beam: 5” or LESS from OPEN gate.
Gate Closed
Wall
Conduit
Illustrations not to scale
Outside Property
Inside Property
IMPORTANT: Photocells MUST
be in alignment or fault will occur.
Beam Height:
21” for most installations but No
higher than 27.5” above ground.
UL 325 2018 Standard
IMPORTANT: N.C. type
sensing devices MUST be
powered by Matrix III
12VDC OUT input or they
will NOT be MONITORED.
A minimum of TWO entrapment protection sensors
MUST be installed, ONE in EACH direction of gate
travel or operator will NOT function.
They MUST be MONITORED and NORMALLY CLOSED
(N.C.)/10K. All entrapment zones should be protected
by MONITORED sensors.
12VDC OUT monitored
7
UL 325 2018 Standard - MAX 1500 PRO/2200 PRO/F18 PRO Matrix III Instal
l Version 7a
