EXIT PWR
ALARM
POWER /
SOLAR IN
BATTERY
INPUT
OPENING CLOSING
CLOSINGOPENING
ERD
OBD PORT
BLACK BOX
PROGRAMMING
SOLAR MODE
PROGRAM
MOTOR
OVER
LOAD
ERD
MOTOR
OVER
LOAD
MAX
OFF
MAX
SENSE
MAX
SENSE
BATTERY
BACKUP MODE
ERD SENSITIVITY
MOTION CONTROL
OPEN
GATE SPEED
MAG
LOCK
UL
ENTRAP
PRIMARY/
SECONDARY
LINK
STOP CLOSE
MOTOR
INPUTS
CLOSE
TIMER
MAGLOCK
DELAY
JOG
BATTERY
TEST
INPUT
ERROR
BATTERY
BATTERY
IN USE
REPLACE
BATTERY
LEAVE
CLOSED
LEAVE
OPEN
OPEN
1 TIME
BATTERY VOLTAGE
EF1/2
RESET /
MANUAL
RELEASE
ID
PLUG
LINK
OK
MODULE
PORT
MOTOR
POSITION
INPUTS
SLIDER
LIMIT
SWING
LIMIT
GND
OPEN ONLY NC
OPEN ONLY 10K
PHOTO CLS NC
OPEN/CLS NC
GND
12VDC OUT
GND
GND
GND
GND
GND
GND
JOG RIGHT
JOG LEFT
TAMPER IN
TAMPER NO
GATE DISABLE
MANUAL RELEASE
KEYPAD / CARD
GND
(-)
(+)
GND
GND
MAX OPEN
FIRE DEPT
RADIO GND
RADIO SIGNAL
STRIKE
CLOSE
COM
COM
STOP
OPEN
CLS ONLY 10K
OPEN/CLS 10K
12VDC OUT
NO
COM
NC
ID PLUG
ERROR
24VDC OUTPUT
12VDC OUTPUT
GND
GND
GND
LOOP PWR
OFF
PRIMARY
LEFT
ON/OFF
BATTERY
RIGHT
SECONDARY
ON
QUICK
CLOSE
OPEN
LEFT
OPEN
RIGHT
GATE
OFF
1
2
3
4
5
6
7
8
9
10
1
2
3
4
5
6
MIN MIN
MAX MAX
ON
OFF 2.5 sec
1.5 sec
FAULTS
OPERATOR
MATRIX III
OFF
OFF
3
1
14
16
MIN
16
MIN
12
9
7
3
1
14 12
9
7
UL SENSOR N.C.UL SENSOR 10K
POWER
MODE A MODE B
EXIT LOOP
LOOP
LOOP
CENTER
SAFETY
GATE OPEN
COM
GATE CLOSED
MIN
MATRIX III
SWING / SLIDE
Gate
Tamper
Relay
The GATE TAMPER is factory set to OFF (Unarmed). See previous page for more information about ARMING GATE TAMPER.
If an existing alarm system (Building alarm system) is connected to the GATE TAMPER relay (see previous page), notify proper
authorities BEFORE dropping the chain.
IMPROPER Dropping of Chain (Vandalize):
Gate Shut-Off switch is NOT turned ON.
When the chain is improperly dropped (Vandalized), the OPERATOR ALARM and GATE TAMPER relay will activate. The
operator will shut down all operating functions.
The alarm reset button MUST be pressed to turn OFF the alarm and reset the operator. If GATE TAMPER relay is connected to
an existing building alarm system, then they will get a triggering of their alarm system and should be notified of the situation.
PROPER Dropping of Chain while GATE TAMPER is ARMED:
1. Turn Gate Shut-Off switch ON to disable operator alarm.
2. Drop the Chain.
3. GATE TAMPER relay WILL be activated.
4. Service operator.
5. Reconnect the chain to gate.
6. Turn Gate Shut-Off switch OFF.
7. Rearm an alarm system that may be connected to the GATE TAMPER relay.
ON
OFF
Gate
Shut-Off
ON
OFF
Gate
Shut-Off

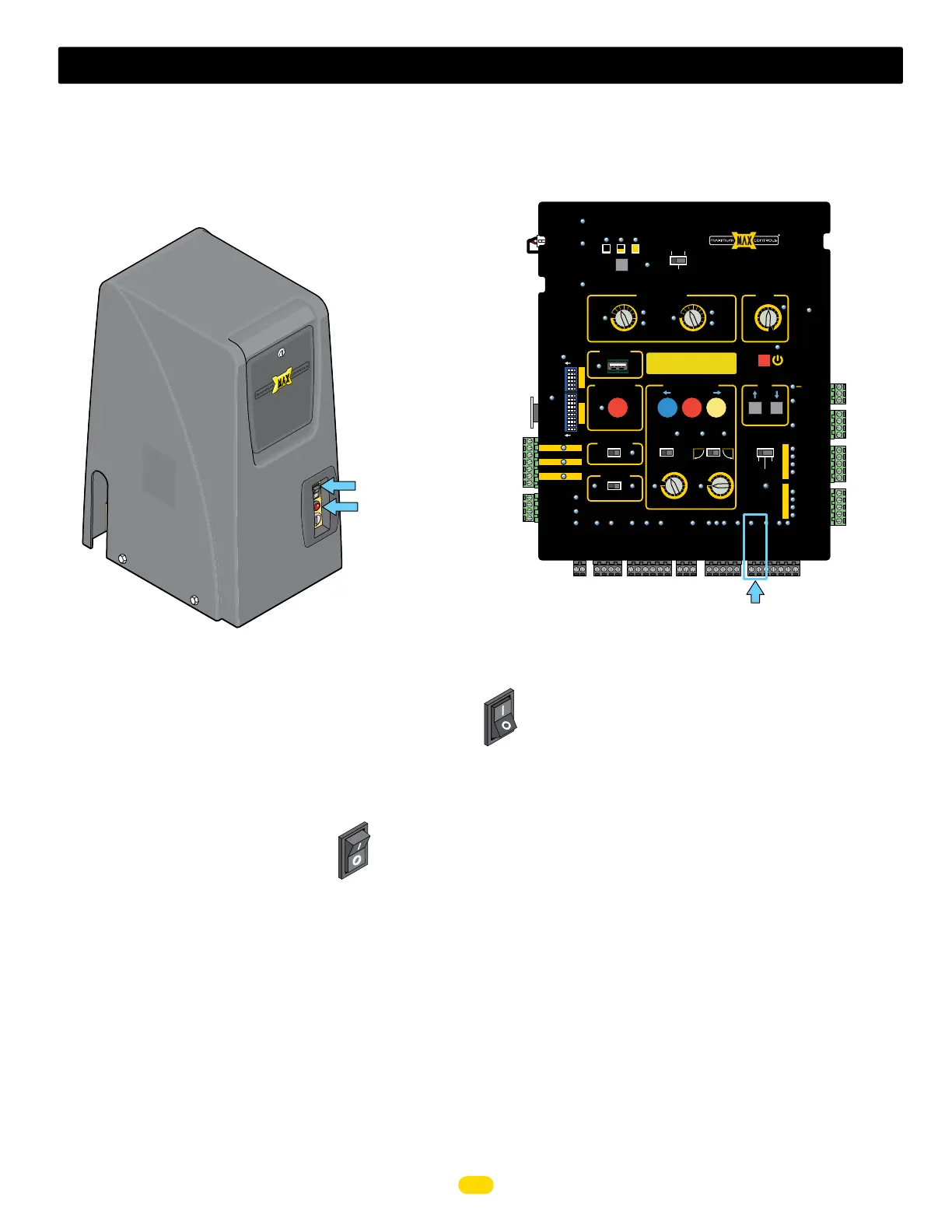

Dropping the Chain - GATE TAMPER is ARMED (ON)
Gate Shut-Off Switch
Alarm Reset Button
16
UL 325 2018 Standard - MAX 1500 PRO/2200 PRO/F18 PRO Matrix III Instal
l Version 7a
To Next Page
