INSTALLATION PROCEDURES
3-2
3.2 MACHINE FOUNDATION
A proper foundation is an absolute necessity when installing a fixed mount washes
extractor. Do not neglect details when doing foundation work. These details will ensure a stable
installation, reducing the possibility of excess vibration at high speeds.
The machine must be anchored to a smooth level surface so that the entire base of the
machine is supported and rests on the mounting surface.
NOTE: Do not support the machine at only four points.
A concrete base designed to elevate the washer-extractor to a more comfortable working
height may be used. Use care when designing a base, as the forces generated during extract are
extreme. The base must be adequately tied into existing floor.
The factory can provide, at extra cost, elevated base frames designed to handle the extreme
forces encountered during the extract phase of the cycle. Using other non ā factory designs can cause
undesirable operation, machine damage, and in extreme circumstances, injury or death. Damage
caused by use of non ā factory base frames is not covered under warranty.
Do not attempt to install this machine on wooden flooring of any kind, above ground level,
or over basements. Installation must be slab on grade or equal.
Ensure that the machine is installed on a level floor of sufficient strength and that the
recommended clearances for inspection and maintenance are provided. Never allow the inspection
and maintenance space to be blocked.
Table 3-2 Floor load data
Model

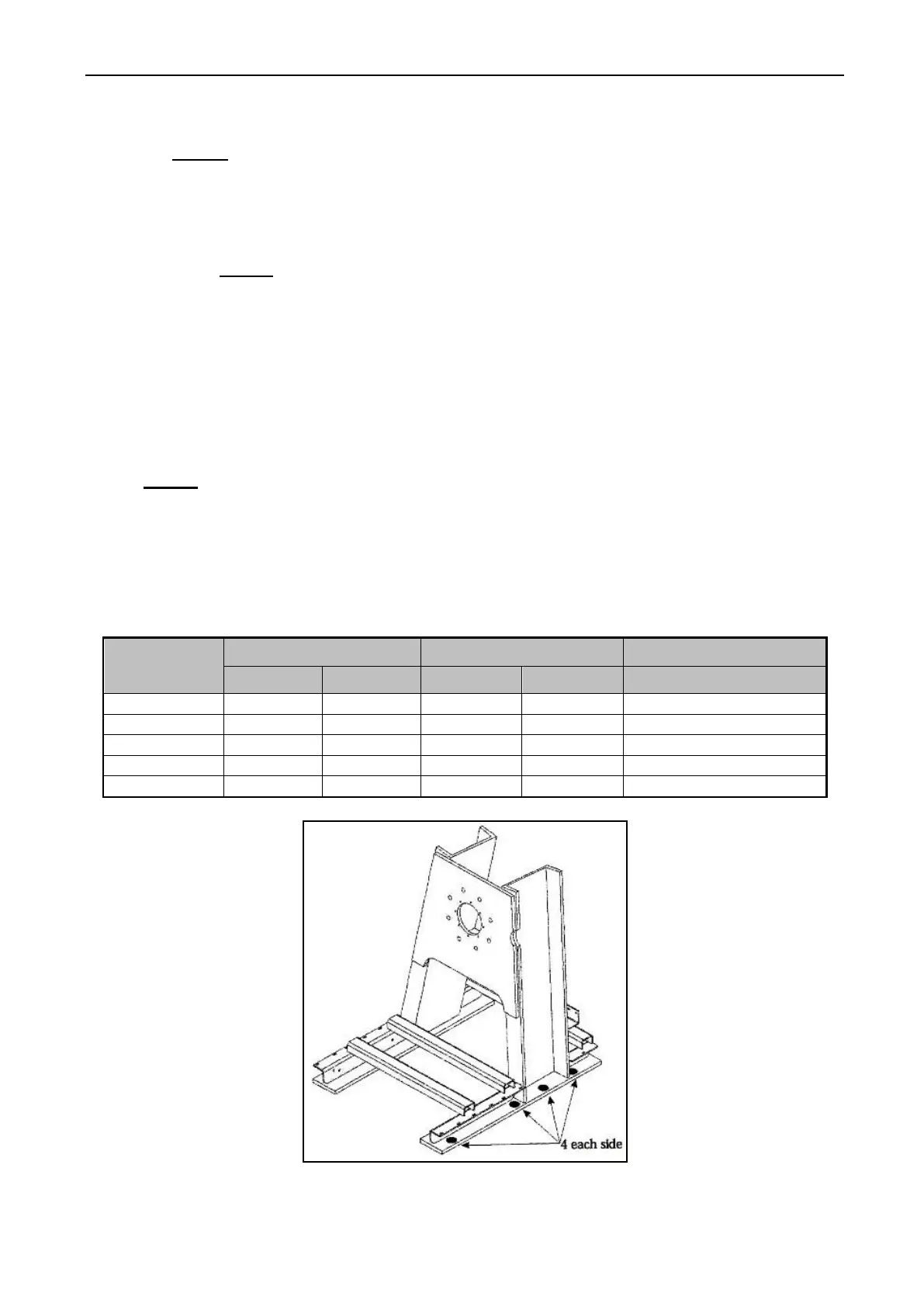

Fig. 3-2 Foundation bolt location
