5-10t Internal Combustion Counterbalance Forklift Truck Operation & Maintenance Manual
1. Clamping Brake Caliper Body 7. Piston
2. Deflating Valve 8. Inlet Oil Sealed Pump Cover
3. Friction Block Assembly Oil Seal Wheel Cylinder Head
4. O-Ring 9. Hole Plug
5. Rectangular Seal Ring 10. Screw Plug
6. Dust Ring 11. Brake Disc

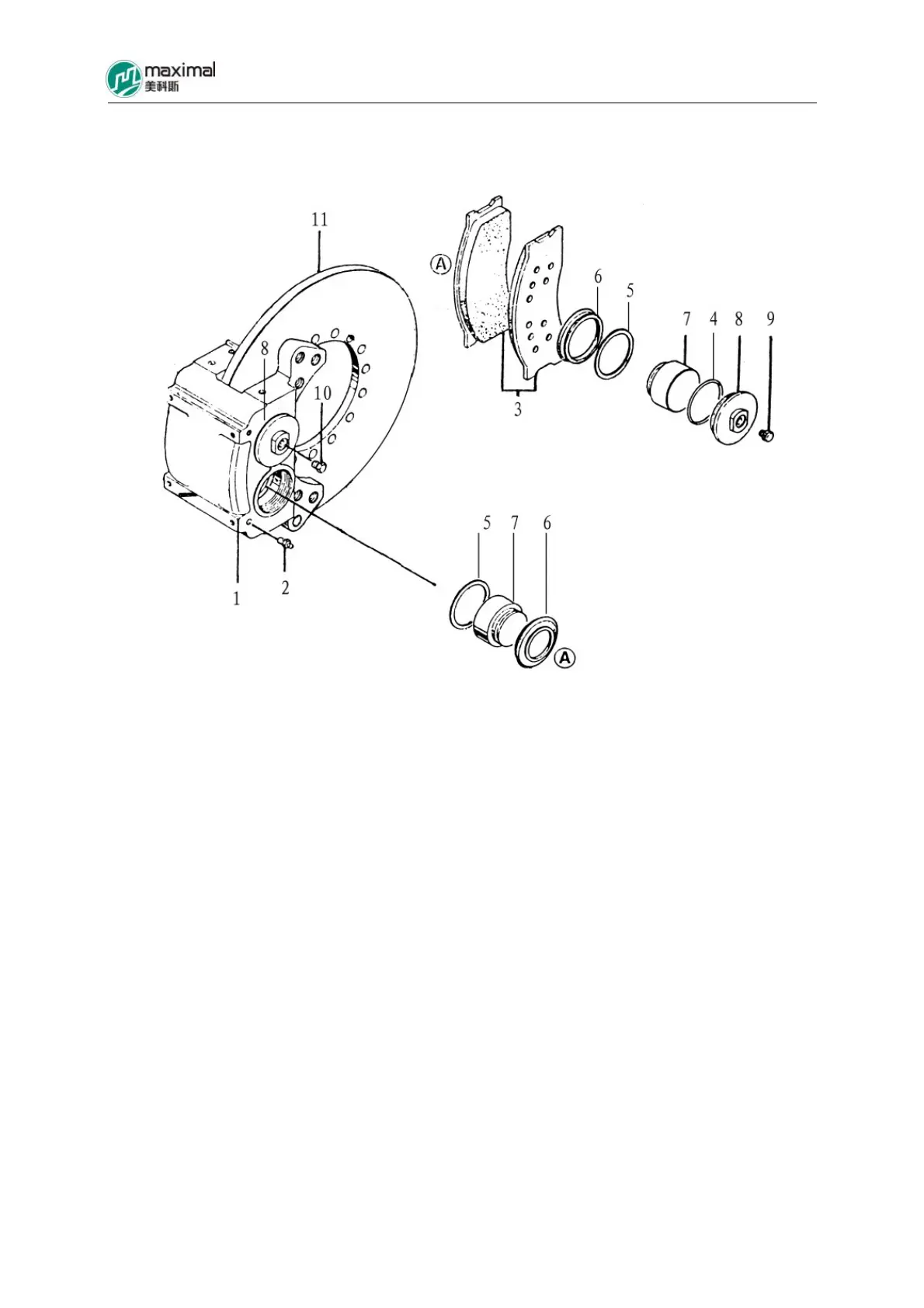

Fig 5-9 Clamping Brake (8-10t)
