XStream™OEMRFModule–ProductManualv5.x00[2006.02.24]
Wiring Diagram: RS-232 DTE Device to a DCE Module Assembly

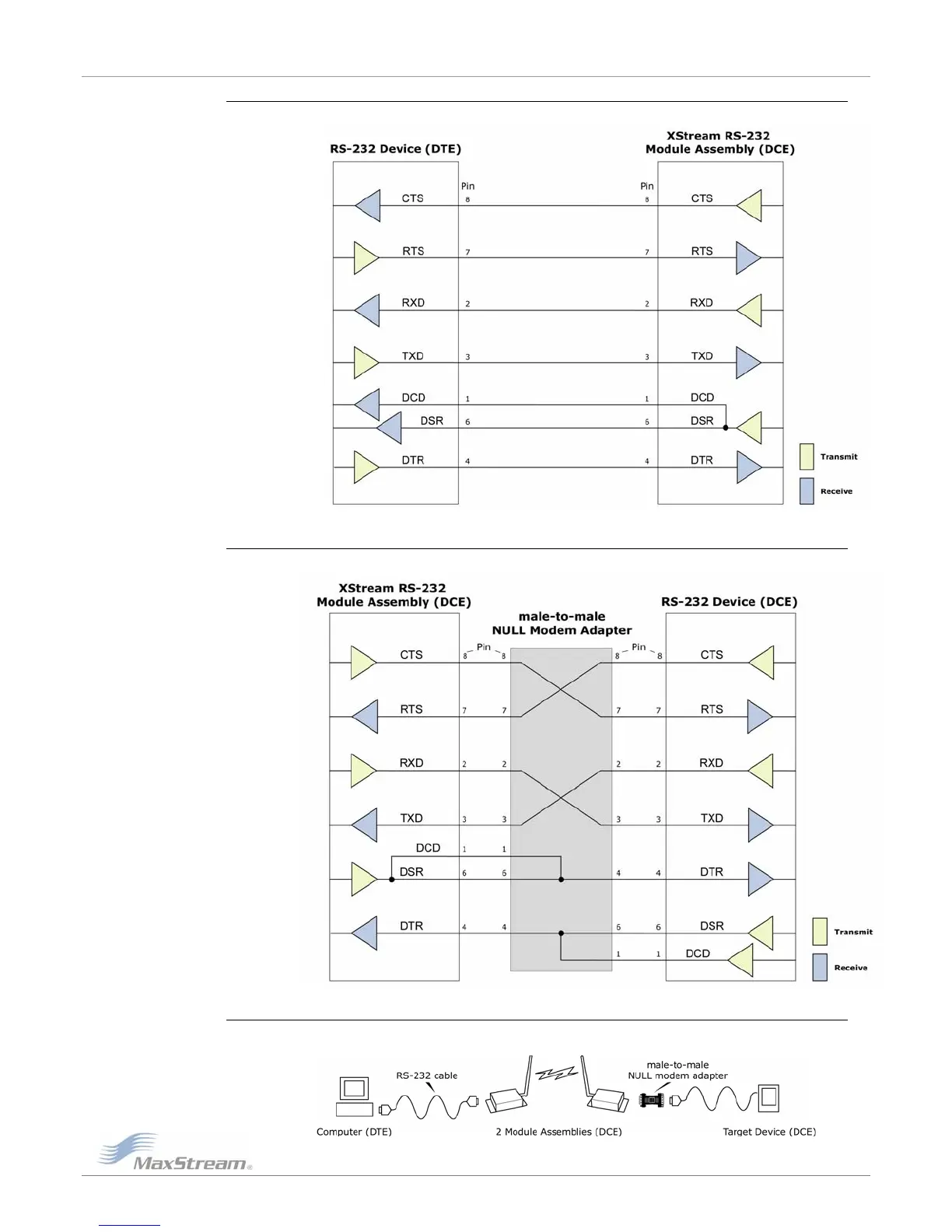

FigureB‐10.RS‐232DTE(maleconnector)devicewiredtoanXStreamModuleAssembly(femaleconnector)
©2006MaxStream,Inc.ConfidentialandProprietary 58
Wi ng Diagram: DCE Module Assembly to an RS-232 DCE Device
ri
FigureB‐11.XStreamModuleAssembly(femaleconnector)wiredtoanRS‐232DTE(maleconnector)device
Sample Wireless Connection: DTE Ù DCE Å--------Æ DCE Ù DCE
FigureB‐12TypicalwirelessconnectionusedforserialcommunicationsbetweenDTEandDCEdevices
