XStream™OEMRFModule–ProductManualv5.x00[2006.02.24]

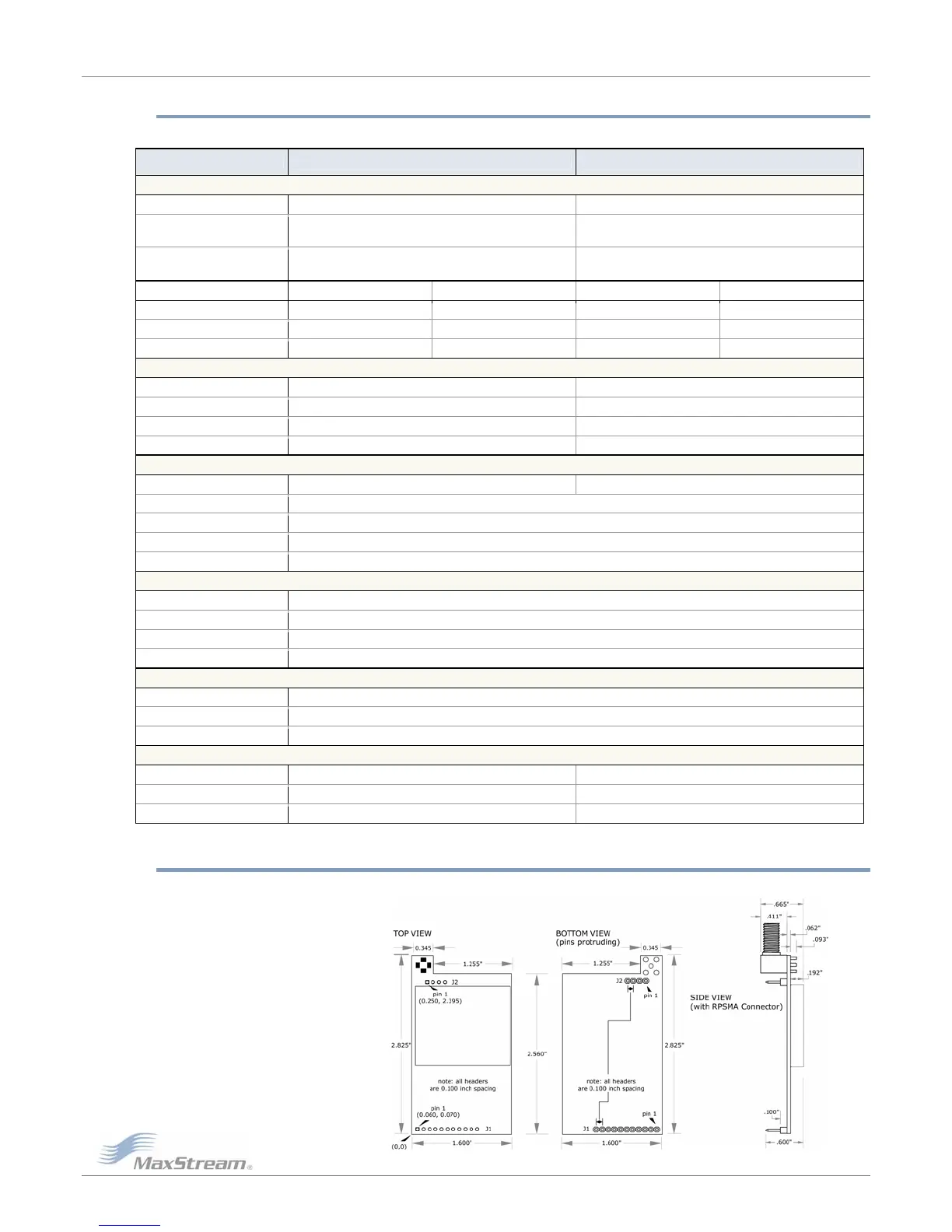

1.2. Specifications
Table1‐01. XStreamOEMRFModuleSpecifications
Specification
9XStream (900 MHz) OEM RF Module 24XStream (2.4 GHz) OEM RF Module
Performance
Indoor/Urban Range up to 1500’ (450 m) up to 600’ (180 m)
Outdoor line-of-sight Range
Up to 7 miles (11 km) w/ dipole antenna
Up to 20 miles (32 km) w/ high-gain antenna
Up to 3 miles (5 km) w/ dipole antenna
Up to 10 miles (16 km) w/ high-gain antenna
Interface Data Rate
1200 – 57,600 bps
(non-standard baud rates also supported)
1200 – 57,600 bps
(non-standard baud rates also supported)
Throughput Data Rate 9,600 bps 19,200 bps 9,600 bps 19,200 bps
RF Data Rate 10,000 bps 20,000 bps 10,000 bps 20,000 bps
Transmit Power Output 100 mW (20 dBm) 100 mW (20 dBm) 50 mW (17 dBm) 50 mW (17 dBm)
Receiver Sensitivity -110 dBm -107 dBm -105 dBm -102 dBm
Power Requirements
Supply Voltage 5 VDC (± 0.25 V) regulated 5 VDC (± 0.25 V) regulated
Receive Current 50 mA 80 mA
Transmit Current 140 mA 150 mA
Power Down Current < 26 µA < 26 µA
General
Frequency Range 902-928 MHz 2.4000-2.4835 GHz
Spread Spectrum Frequency Hopping, Wide band FM modulator
Network Topology Peer-to-Peer, Point-to-Multipoint, Point-to-Point, Multidrop
Channel Capacity 7 hop sequences share 25 frequencies
Serial Data Interface CMOS UART
Physical Properties
Module Board Size 1.600” x 2.825” x 0.350” (4.06 cm x 7.18 cm x 0.89 cm)
Weight 0.8 oz (24 g)
Connector 11-pin & 4-pin, 0.1” spaced male Berg-type headers
Operating Temperature 0 to 70º C (commercial), -40 to 85º C (industrial)
Antenna
Integrated Wire (optional) ¼ wave monopole, 3” (7.62 cm) length, 1.9 dBi Gain
Connector (optional) Reverse-polarity SMA or MMCX
Impedance 50 ohms unbalanced
Certifications (visit www.maxstream.net for complete list)
FCC Part 15.247 OUR9XSTREAM OUR-24XSTREAM
Industry Canada (IC) 4214A-9XSTREAM 4214A 12008
Europe N/A ETSI, CE
1.3. Mechanical Drawings
Figure1‐01. XStreamModuleMechanicalDrawings(shownwithRPSMAantennaconnectoroption)
©2006MaxStream,Inc.ConfidentialandProprietary 5
