3-18

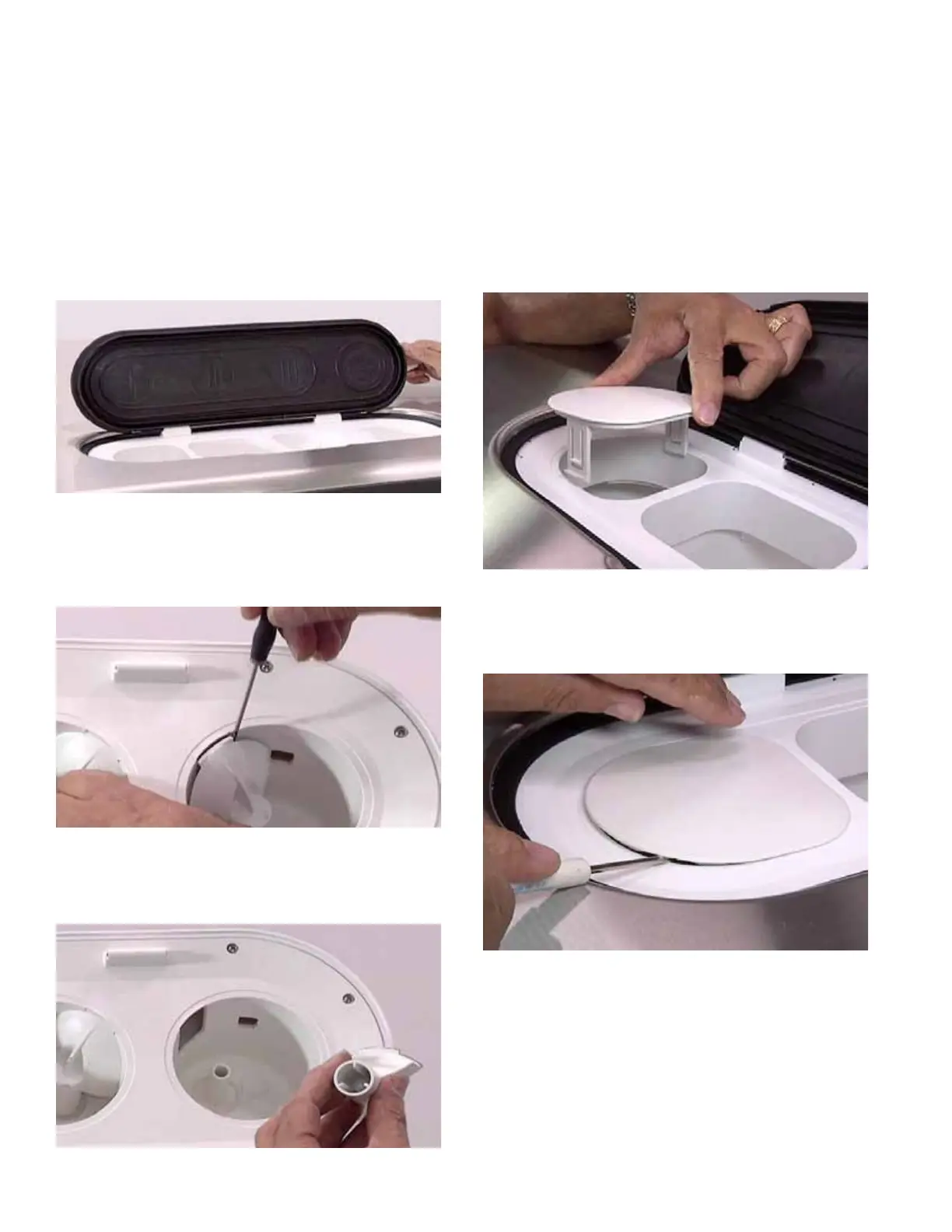

1. To access and service the chemical
dispenser, lift the cover of the dispenser.
2. The bottom side of the cover is marked 1,
2, 3 and a flower symbol for prewash, main
wash, bleach and fabric softener
3. The two right chemical dispenser cups have
siphon covers that can be removed for
cleaning. Use a small flat blade screwdriver
to pry the top corner of siphon away from
the edge and lift the siphon off the tube.
NOTE: These siphons need to be cleaned
frequently to avoid build up of chemicals.
Clean up inside the tube and all around the
chemical dispenser cup.
4. A dispenser block-off cover can be installed
to prevent access to the pre-wash or bleach
dispensers. Insert the block-off cover into
the desired dispenser and push down until
the tabs on the front and back of the cover
click into position.
5. To remove a block-off cover, use a small flat
blade screwdriver to pry under the corner
of the cover and release the clips from the
dispenser.
CHEMICAL DISPENSER
