3-46

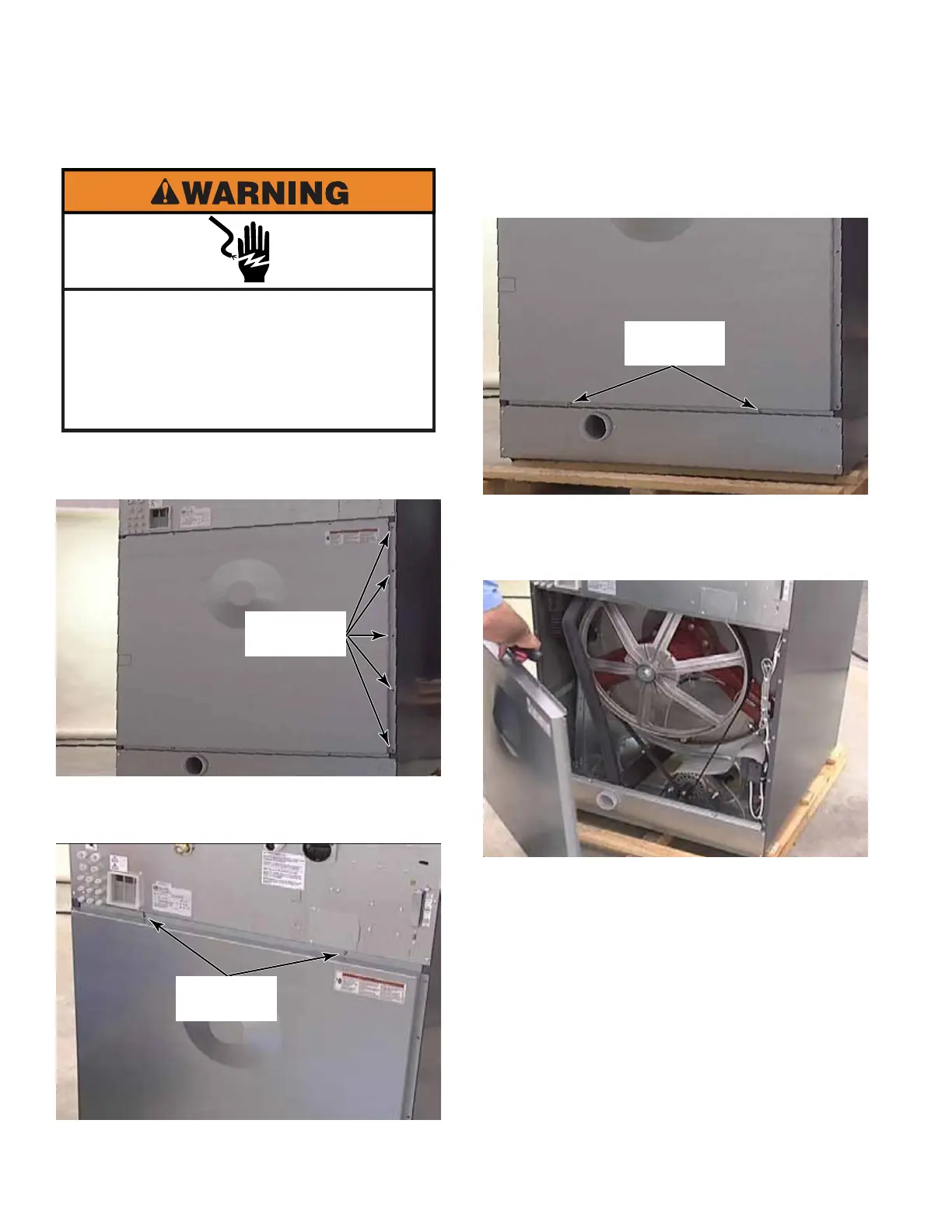

1. Remove five T-30 screws from each side of
the back panel.
2. Remove two T-30 screws from the top edge
of the panel.
Electrical Shock Hazard
Disconnect power before servicing.
Failure to do so can result in death or
electrical shock.
Replace all parts and panels before
operating.
BACK PANEL
3. Loosen the two T-30 screws at the bottom
of the panel.
4. Pull the top of panel away from the washer
and lift the slots off screws at the bottom to
remove panel from washer.
Five T-30
Screws
Two T-30
Screws
Two T-30
Screws
To Next Page
