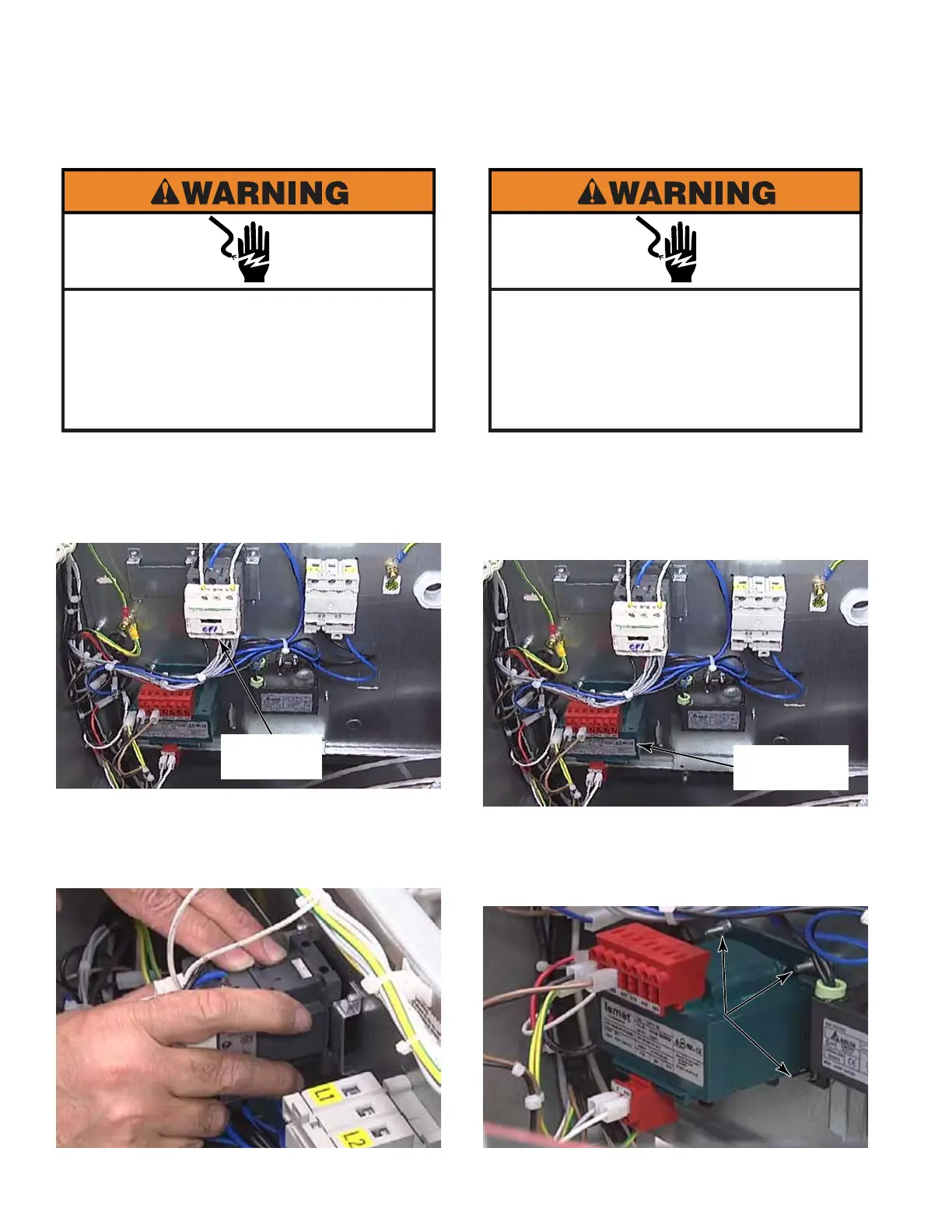

3-30
1. Open the top panel. (See page 3-1)
2. The motor contactor is near the top left back
corner, inside the cabinet.
3. To remove the motor contactor, press down
on the top and pull out at the bottom, then
lift up to release the spring loaded mount
from the bracket on the back panel.
Electrical Shock Hazard
Disconnect power before servicing.
Failure to do so can result in death or
electrical shock.
Replace all parts and panels before
operating.
MOTOR CONTACTOR
1. Open the top panel. (See page 3-1)
2. The Isolating Transformer is in left back
corner, below the contactor, inside the
cabinet of 40 to 65 pound model washers.
3. To remove the transformer remove four T-20
bolts on the back panel, with nuts inside the
cabinet, that secure the transformer to the
back panel.
Electrical Shock Hazard
Disconnect power before servicing.
Failure to do so can result in death or
electrical shock.
Replace all parts and panels before
operating.
ISOLATING TRANSFORMER
Motor
Contactor
Isolating
Transformer
To Next Page
