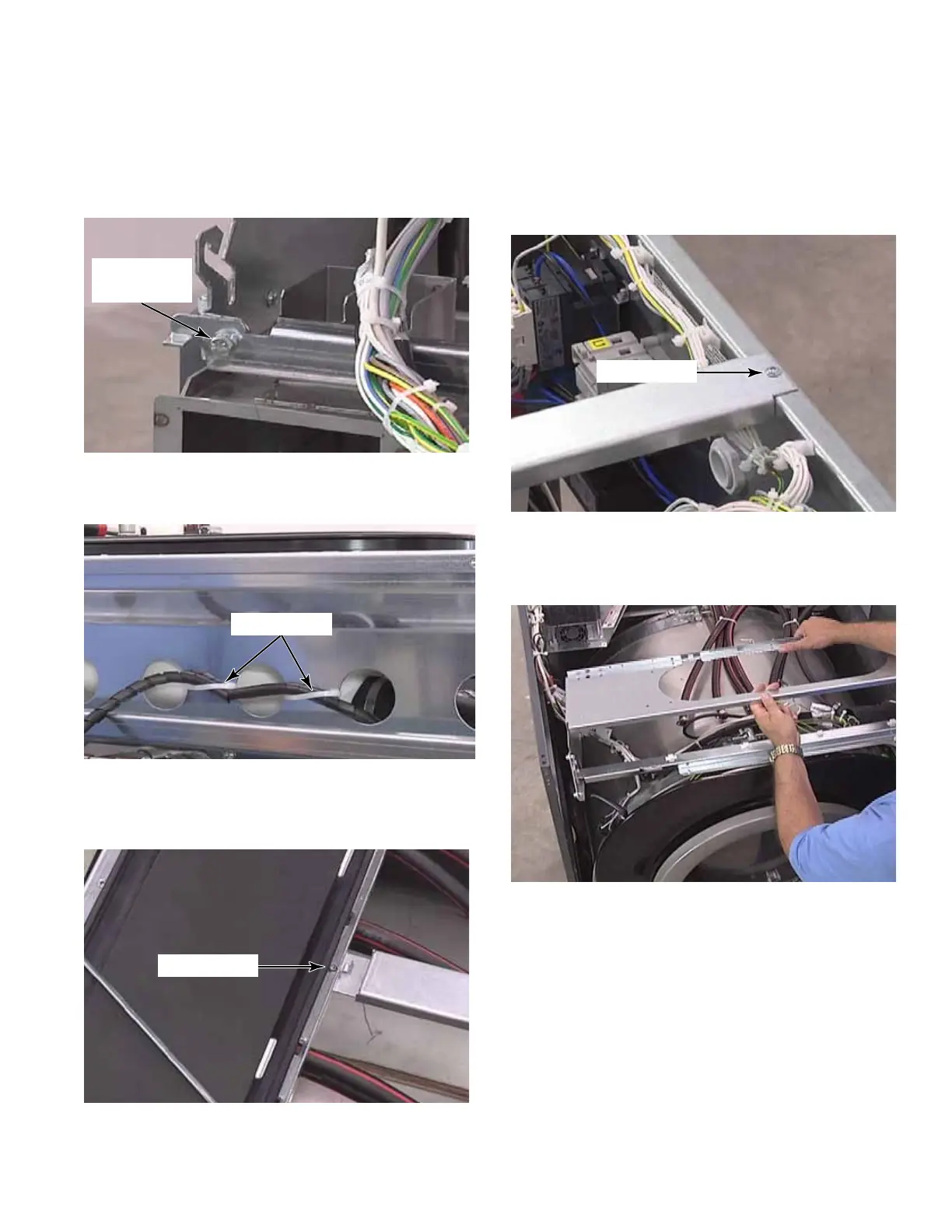

13. Remove the T-20 screw securing the
center support brace to the back edge of
washer.
14. Remove the center support brace.
15. Remove the chemical dispenser support.
10. Remove the 10mm hex head bolts from
front corners of chemical dispenser support.
11. Clip the wire ties that secure the air tube to
the front of the support.
12. Remove the T-20 screw securing the
center support brace to the chemical
dispenser support.
10mm Hex
Head Bolt
Wire Ties
T-20 Screw
T-20 Screw
To Next Page
