DISASSEMBLY
DASH AREA DISASSEMBLY 2018.5 Turbo S & 2019 RZR - Continued
STEP 7 – PREPARE FINAL ELECTRONICS FOR DASH REMOVAL

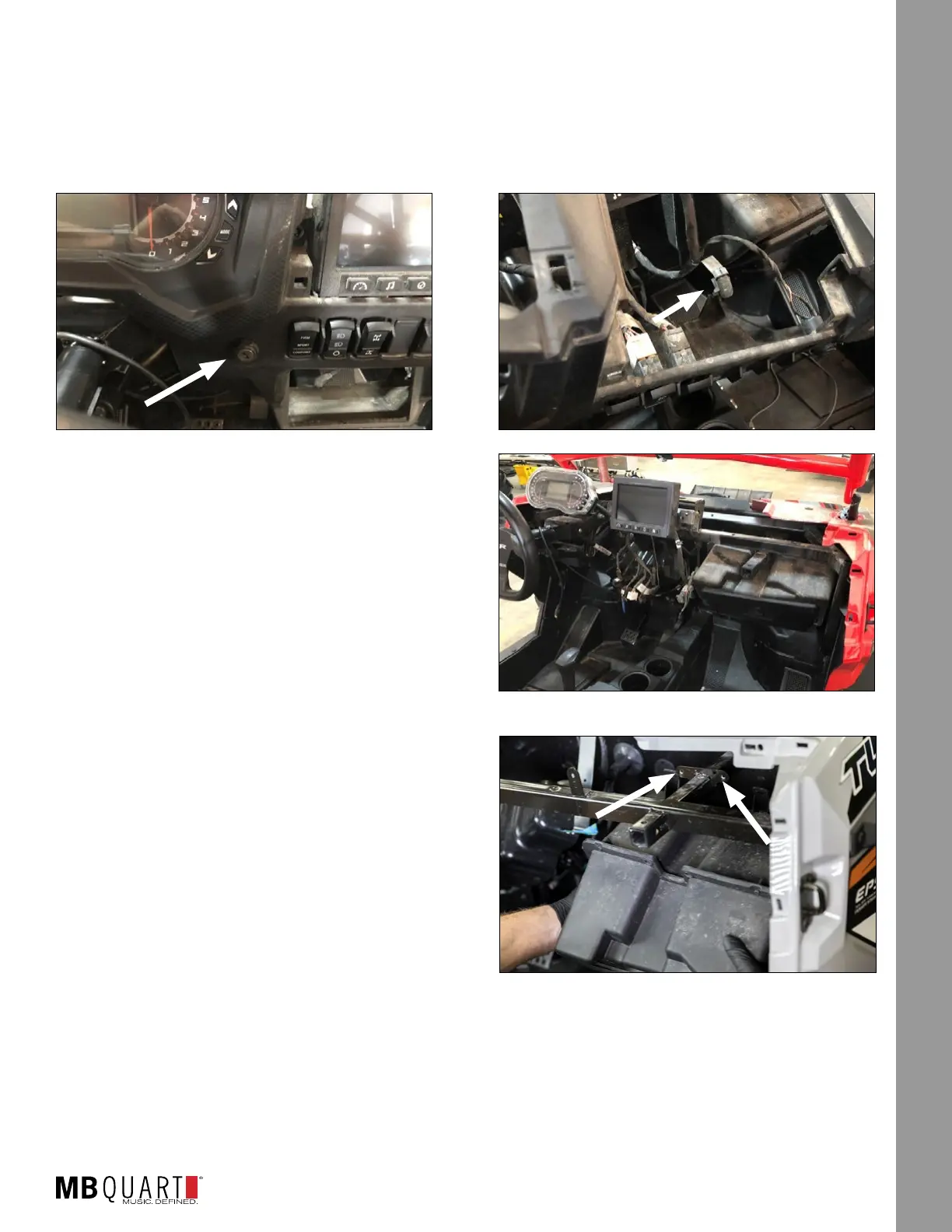

Gently remove the plastic nut holding the ignition switch to the dash as shown in Figure 7-7a. Next,
disconnect wires from back of switches as shown in Figure 7-7b. Take note of plug color and switch location
for reassembly purposes.
STEP 8– REMOVE DASH FASCIA
Gently pull dash fascia toward seat to remove as shown
in Figure 7-8. Set aside in a safe location until it’s time
for reassembly.
STEP 9 – REMOVE THE GLOVE BOX
Remove (2) 10mm bolts on the top of the glove box
where it is fastened to the grab bar framework. See
holes in Figure 7-9. The glove box will easily slide
out. A different mounting method is used for the new
subwoofer.
Go to page 12 for next steps on all model year RZR vehicles.
Figure 7-7a Figure 7-7b
Figure 7-9
Figure 7-8
