SUBWOOFER PREP
REMOVE & REINSTALL THE GLOVE BOX DOOR
With a small amount of pressure you can bend up on
the center portion of your OEM glove box door and
remove it from the brackets.
In a reverse movement you can now reinstall this
door onto your new subwoofer glove box to give your
subwoofer a stealth appearance as shown in Figure
5-1.
The subwoofer is now complete. Set aside the
subwoofer enclosure/glove box combination until it’s
time for installation and amplier wiring.
NOTE – Once the subwoofer is ready to be installed, ensure the wiring harness from the subwoofer
enclosure that connects to the amplier does not get pinched behind the enclosure. This will prevent
the enclosure from seating properly and will not allow the front dash to snap into place properly during
reassembly. The harness should be routed over the top of the push bar frame to the subwoofer amplier
connector. This is also noted in the subwoofer installation section, but important to consider at this stage.
SUBWOOFER ENCLOSURE MODIFICATION (2018.5 Turbo S and 2019 Models)
If you have a 2018 XP Turbo S or 2019 RZR XP vehicle, a simple modication to the subwoofer enclosure
which involves cutting four threaded metal studs and grinding them smooth is required. This modication in
no way will affect your product warranty. Complete this modication BEFORE loading the subwoofer into the
enclosure.
PREPARATION - You will need a at surface on which to work and someone to assist you in holding the
enclosure. You’ll also need a cutting tool (such as an Air Saw, Hacksaw, Sawzall) and a metal grinding tool
(such as a Dremel tool, electric disc grinder, etc.). Of course eye protection and heavy gloves are a must for
safety. Total modication time should be 10-15 minutes.
STEP 1 – IDENTIFY METAL STUDS TO BE CUT
Due to change in the metal work in the dash, the 4 front
studs on the enclosure must be removed so that it will
clear the support bar in the 2018 RZR Turbo S, 2019
RZR XP, XP Turbo and Turbo S machines as shown
in Figure 5-2. This is necessary for installation into the
vehicle later in the process.
STEP 2 – CUT OFF METAL STUDS
These 4 studs need to be removed with a cutting tool
(Air Saw, Hacksaw, Sawzall, i.e) or what other cutting
device that you would like to use.
STEP 3 – GRIND SMOOTH
After cutting the studs ush go back with a grinding
device and clean up the area. After removal the
subwoofer enclosure will look like Figure 5-3.

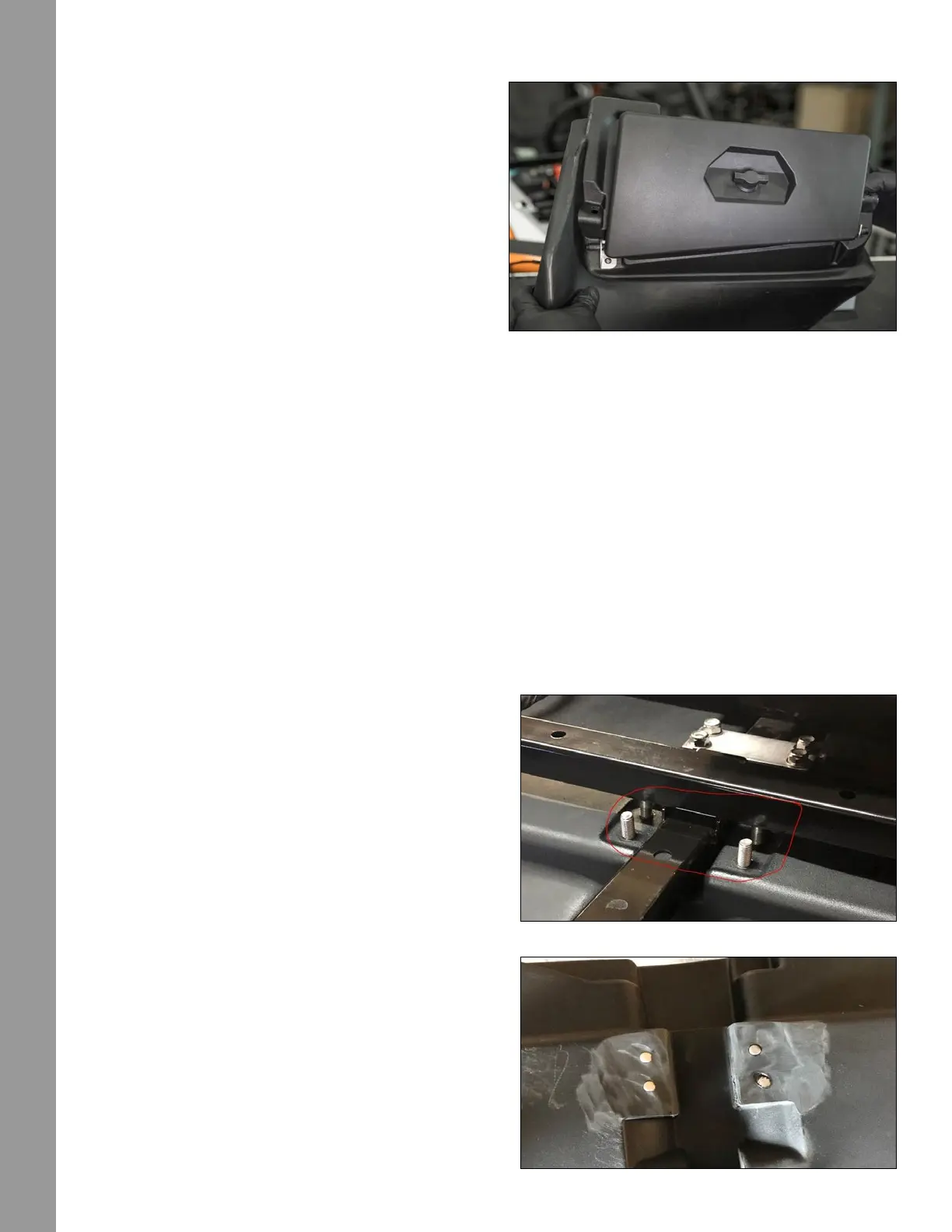

Figure 5-1
