HARNESS CONNECTIONS
AMPLIFIER AND SPEAKER WIRING HARNESS CONNECTIONS
With your amplier(s) mounted, subwoofer installed and connected to the mono amplier, you can now
begin laying in the front/rear speaker harnesses and plugging in all the remaining connectors.
NOTE - While you are working on your system, we recommend covering the ampliers to avoid scratching
them or inadvertently hitting the crossovers with a wrench or screw driver.
STEP 1 – POWER AND SPEAKER CONNECTORS AT AMPLIFIERS
Plug in the power/ground connector of the two channel and the mono ampliers
respectively. At the same time, if you have illumination, connect the red/black. Next,
connect full range speaker connectors to the two channel amplier. You should
already have connected the subwoofer to the mono amplier in the previous section.

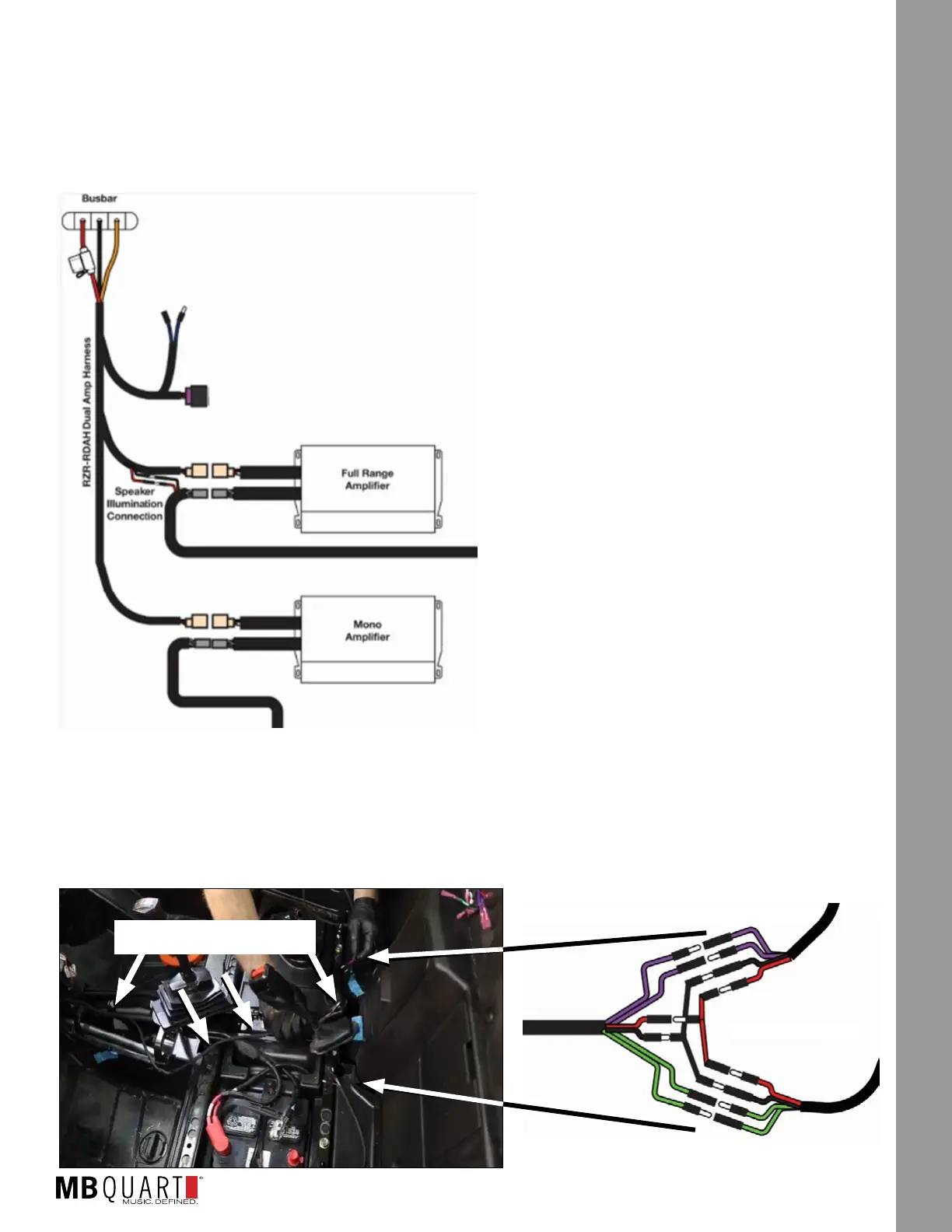

If not, do this step now. See Figure 12-1 for the connection diagram.
STEP 2 – ROUTE FRONT SPEAKER HARNESS
Make sure your front left and front right kick panel
harnesses are set into place.
The left front harness for the kick panel should be
routed down the left side of the steering column to
the kick panel area.
The right front harness for the kick panel needs to
be routed over the subwoofer, not behind, and then
to the kick panel area.
The kick panel pod installation will take place at a
later step. For now, you are simply pre-wiring the
harnesses to their respective areas.
STEP 3 – ROUTE REAR SPEAKER HARNESS
Route rear speaker harness toward rear speakers
through the console area as shown in Figure 12-2.
You can route the remaining harnesses to the rear
pod area by either removing the oil lter cover on
the back wall or route your wires through small
gaps in the body panels.
NOTE – On a four seat RZR (4P RZR) you will need to include the 4P jumper to extend the rear speaker
harness, past the rear seats and then to the rear pod area. See Figure 12-3 for connection.
Figure 12-1
Figure 12-2
Figure 12-3
Main Rear Speaker Harness
Routing Through Console Area
Connection Points to Right Rear Speaker Wiring
Connection Points to Left Rear Speaker Wiring
