PRE-INSTALLATION
INSTALLATION TIME
About 3.5 hours are required to complete this installation.
TOOLS AND SUPPLIES NEEDED
● Wire Strippers and Crimpers ● Blue Painter’s Tape and Marker Pen
● Flush Cut Wire Cutters (for trimming zip ties) ● Small (Jeweler’s) Screwdriver
● Hand-Held Drill and 5/16” Drill Bit ● Bojo Tools (Pry Tools)
● Ratchet ● Socket (preferably deep)
● 10mm Socket ● 1/2” Open Box Wrench
● T25 Torx Driver ● T40 Torx Driver
Depending on which vehicle-specic which system you are installing, you may or may not need all of the
tools listed below. You may also own more specialized tools to complete the installation. Share the pics of
your installation on our social media channels to help others.
In addition to the tools listed, is helpful to music ready for the TEST & TUNE step. We recommend:
● USB thumb drive with music pre-loaded
● Bluetooth device such as a smartphone with music or a music app
SAFETY PRECAUTIONS
Safely prepare your machine for the installation before
proceeding.
● Turn the ignition off and remove the key
● Remove the negative terminal of the battery (Figure S-1)
● Use a packing blanket other soft material to protect your
machine
● Safety Glasses - always wear eye protection
PREPARATION FOR INSTALLATION
Before dismantling your vehicle, we suggest you prepare
all your components, enclosures and wiring harnesses. It
increases efciency to have everything ready when each
component is installed.
STEP 1 – CONFIRMING POWER TO BUSBAR
(Applies to 2013-2018 RZR Models)
The Polaris RZR and the MB Quart RZR-Tuned Audio
System upgrade requires a harness that connects the
battery under the seat to the busbar harness located under
the hood.
The harness is shown in Figure 1-1. Check that your
2013-2018 machine has this harness installed. If not, you
can purchase from your dealer or Polaris online. The part
numbers are 2881551 or 2881646 depending on which
specic RZR model you own. 2018.5 Turbo S and all 2019+
RZR models already contain a busbar harness.

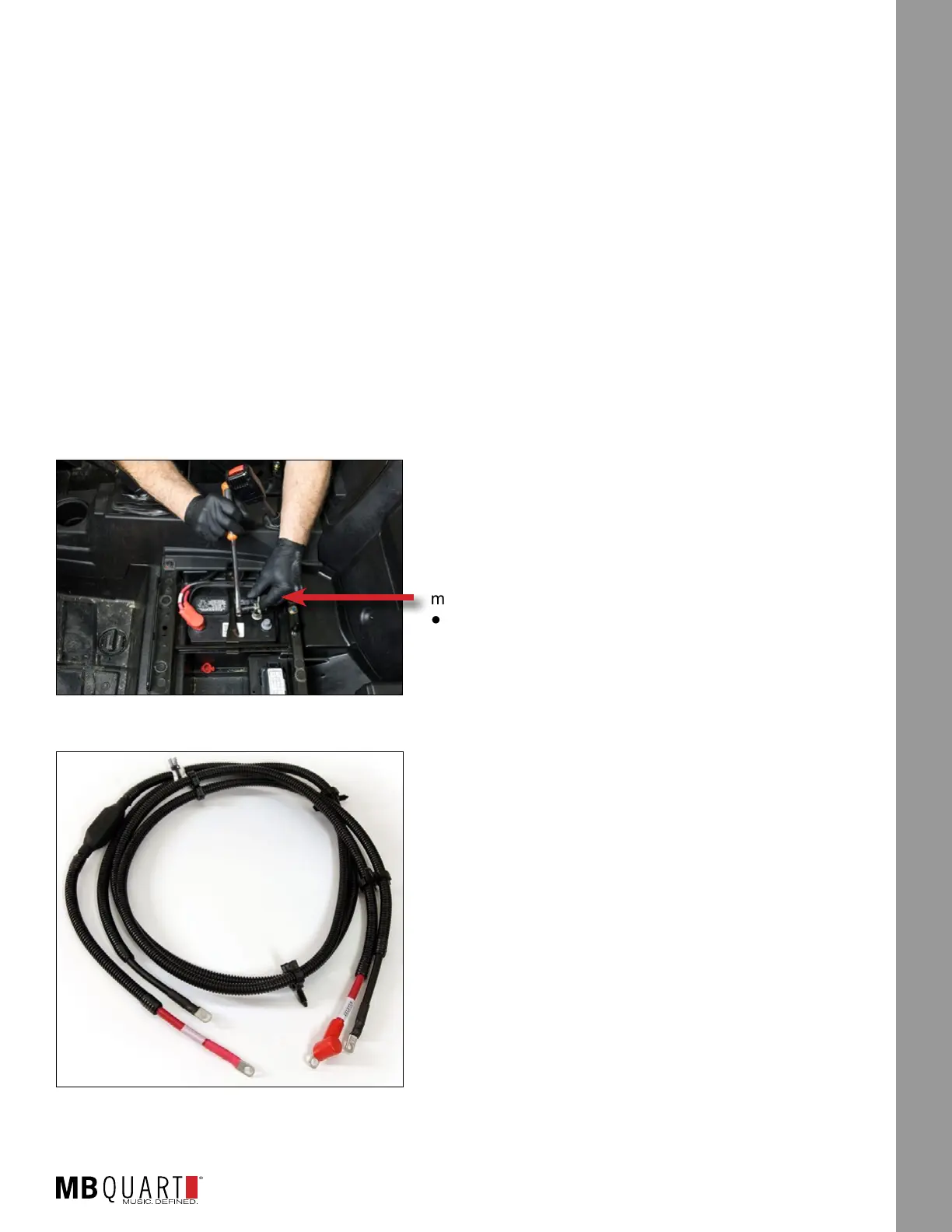

Figure S-1
Figure 1-1
To Next Page
