18
©2019 Maxxsonics USA, Inc.
REAR SPEAKER POD INSTALLATION
Every roll cage angle is a bit different; therefore you should take the time to install the swivel mount
brackets. We suggest you do this on a at surface or work bench.
These brackets are designed to allow 180 degree tilt. This
guaranties that the speaker points directly forward. This exibility
in positioning improves sound quality and overall volume. Refer
to instructions for the swivel bracket packaged with the speaker

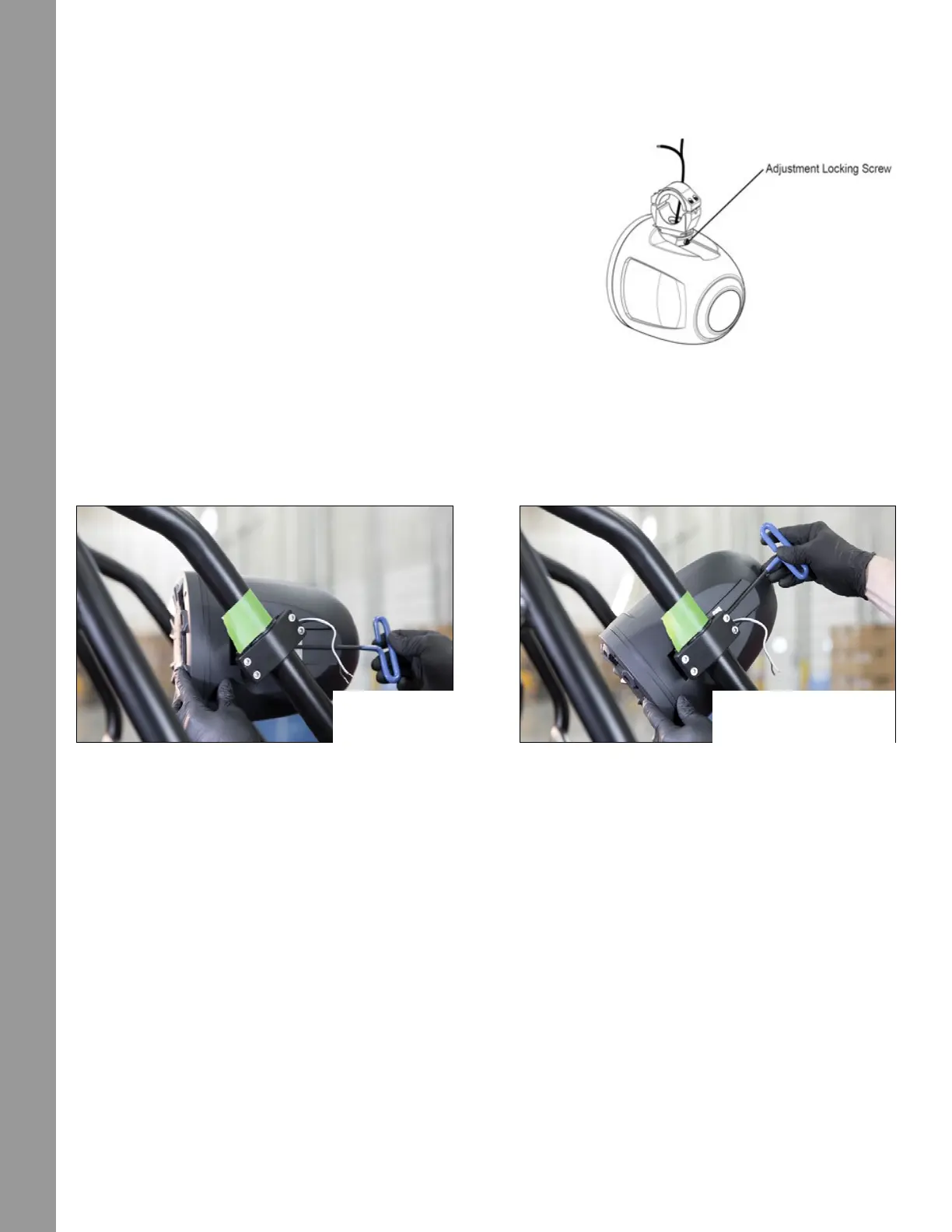

pods. Also ensure that the Adjustment Locking Screw is at the
rear of the assembly (not the front) as shown in Figure 13-1.
STEP 1 – TEST MOUNT SPEAKER PODS w/BRACKETS
Stock RZR roll cages use the 1.75 inch tube. If you have an
aftermarket or custom cage you will nd the correct bushings and
mounts included in the box with the pods. Refer to the manual
included with your pods for additional details on mounting and wiring.
Mount the pod and swivel bracket to the roll cage tube. Once the speakers are on the roll cage tube, you
can gently slide the pod up or down on the tube to determine where your nal height will be. Use painter’s
tape to measure and mark a general position so it’s even on both sides. Figures 13-2a and 13-2b show
potential mounting options to try out.
Once the general mounting position is chosen, do not fully tighten the pods as you may want to do nal
adjustments for your ear height after the seat is in position and the system is playing music.
STEP 2 – CONNECT WIRING
Wire up the rear speaker wiring to the speaker pods. If your pods also feature illumination, connect those
wires as well. The harness ran in the vehicle should be color coded and have the correct male/female
connectors to make this an easy task.
Do not zip-tie the wires along the roll cage or gather up excess wire until the system has been fully tested.
REAR SPEAKER PODS
Figure 13-1
Figure 13-2a Figure 13-2b
SWIVEL STRAIGHT
This position offers
MAXX volume
SWIVEL DOWN
This position will have less
volume to riders in the RZR
