PRE-INSTALLATION
STEP 2 - PREPARE KICK PANEL COMPRESSION HORNS

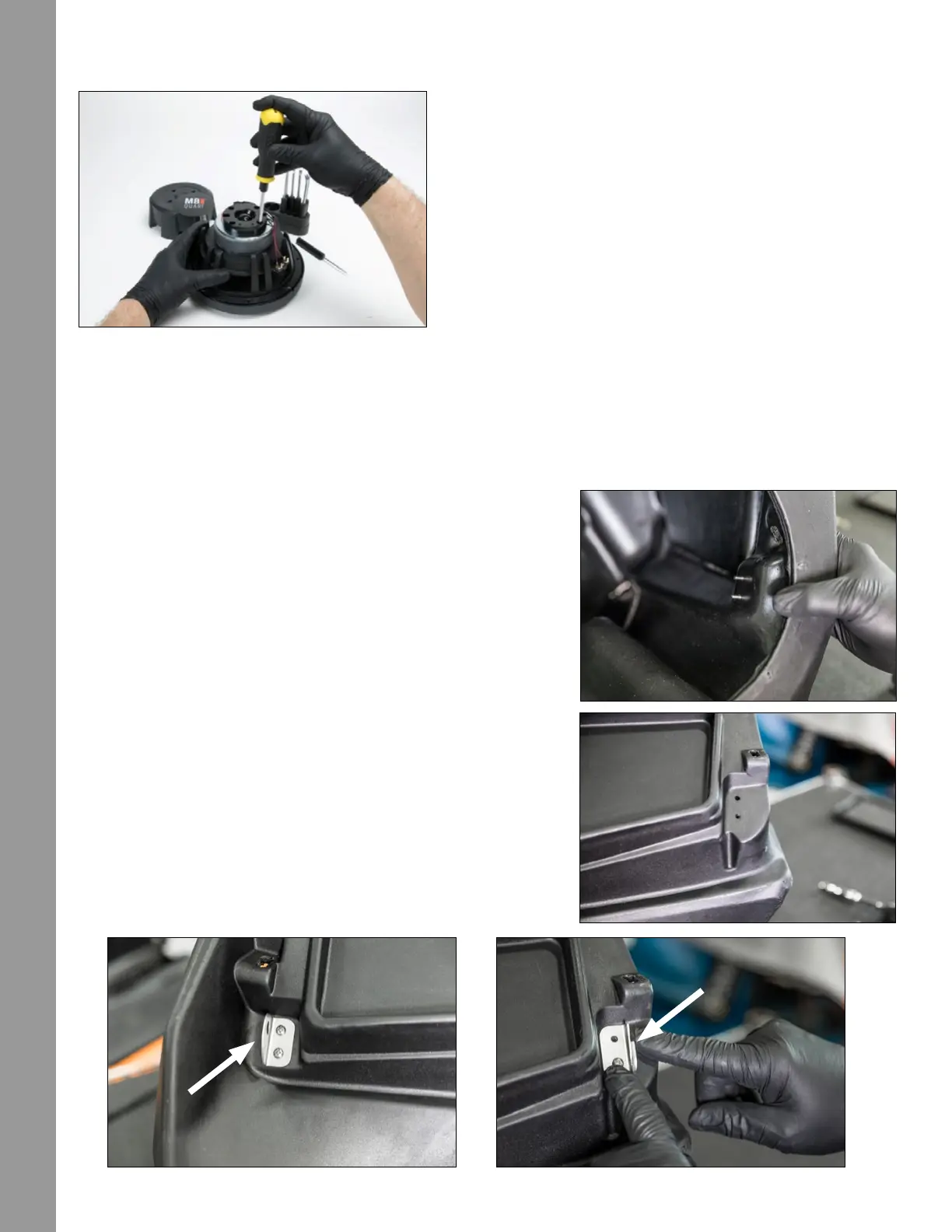

Figure 2-1 is from the MBQ-POD manual which guides you
step-by-step through preparing the kick panel compression
horn speakers for installation into the kick panel enclosure
and the RZR.
Removing the large back plate and installing the special
compression horn diaphragm covers dramatically reduces
the depth of the compression horns which ultimately allows
our overall kick panel enclosure to be shallower than you
would think. This assures maximum leg room for driver and
passenger in the vehicle.
Do not proceed with the kick panel installation until you have properly prepared the speakers with their
compression diaphragm covers.
Refer to the manual in the kit called MBQ-POD. You can also nd this manual online by searching the model
number.
STEP 3 - SUBWOOFER ENCLOSURE & MOUNTING CLIPS
STEP 3a – LOCATE MOUNTING CLIPS
If your subwoofer is not pre-installed in the enclosure, you must
prepare the unit by installing the clips that hold the door from
your OEM glove box. See Figure 3-1.
STEP 3b –MOUNT CLIPS
Mount the included hinge brackets for the OEM glove box door
to be tted on to your subwoofer as shown in Figure 3-2 through
3-4. Use the provided nuts to secure the hinge brackets from the
inside of the subwoofer. Do not over tighten.
The hinge clip with the closed hole mounts on the driver side
with the screws on the inside where the glove box door will
cover the screws. See Figure 3-3.
The hinge clip with the open (hook-like) hole mounts on the
passenger side with the screws on the inside where the door will
cover the screws shown. See Figure 3-4.
Figure 2-1
Figure 3-1
Figure 3-2
Figure 3-3 Figure 3-4
