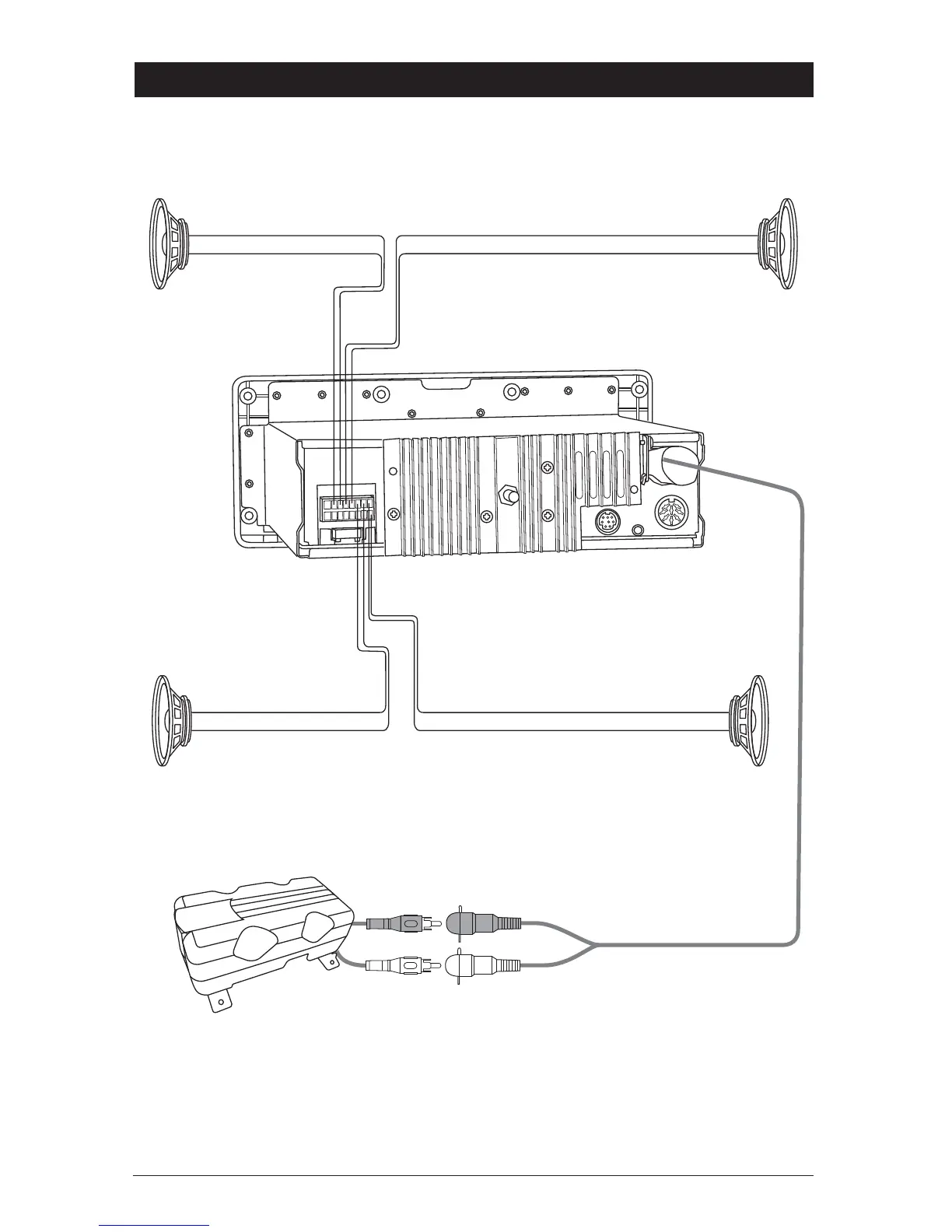

MB QUART WM1-CD - Speaker Connections; Front and Rear Speaker Wiring; Subwoofer Output Connection

27
_
+
White/Black Wire
White Wire
Left
Front
Speaker
_
+
Gray/Black Wire
Gray Wire
Right
Front
Speaker
_
+
Green/Black Wire
Green Wire
Left
Rear
Speaker
Powered Subwoofer
(Optional Model: LS-SUB-75)
_
+
Violet/Black Wire
Violet Wire
Right
Rear
Speaker
Subwoofer Output (Mono)
Green Cable
Speaker Connections
