MB QUART WM1-CD - Auxiliary Connections; Power, Ground, and Amplifier Wiring

28

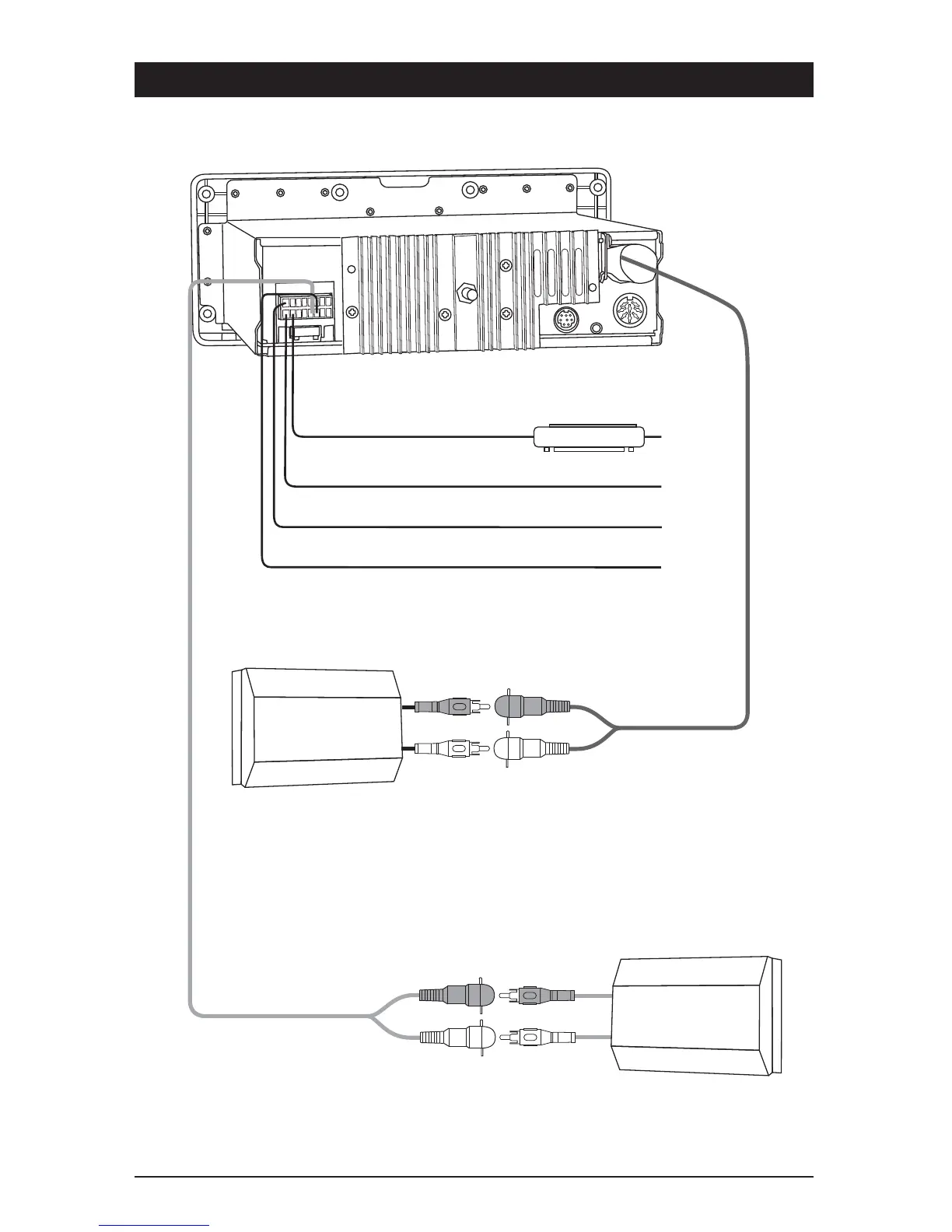

Red Wire (+) to 12 Volt Ignition
Black Wire Ground
This unit for use only with a 12 Volt DC power source with a negative ground.
2-Channel
Audio Output
Amplifier (Optional)
Yellow Wire (+) to 12 Volt Constant
2-Channel
Audio Output
Amplifier (Optional)
Front
Line Out
Brown Cable
Rear
Line Out
Gray Cable
Blue Wire Amplifier Control
Auxiliary Connections
