PART#
‘18008.3.
331216
996407
331308
56845
71391
305562
327225
319661
323328
120638
414072
323839
319660
319659
325463
56113
330517
329416
319710
180085.
996407
2307
56845
326986
120382
2483
327426-889
328386
328387
50325
330567
330289

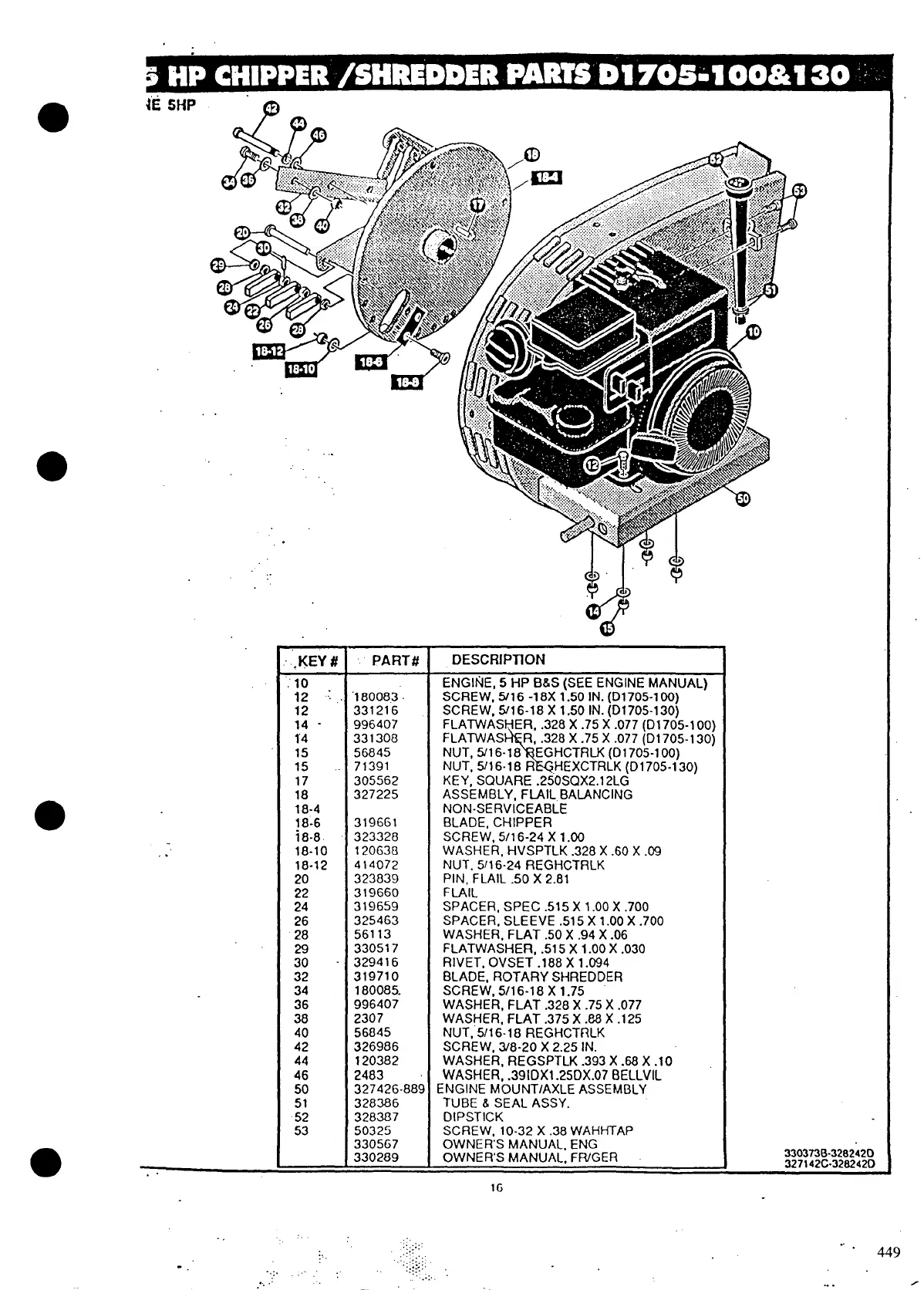

DESCRIPTION
ENG$JE.
5 HP B&S (SEE ENGINE MANUAL)
SCREW; 5/16 -18X
i.50 IN. (D1705-1 00) “
SCREW, 5/16-18 X 1.50
IN. (D1705-130)
FLATWASHER, .328X .75X .077 (D1705-1 00)
%
FLATWAS R, .328X .75X .077 (D I 705-130)
NUT, 5/1 6-18 EGHCTRLK (01 705-1 00)
NUT, 5/1 6-18 R .HEXCTRLK (01705-130)
KEY, SQUARE .250 SQX2.12LG
ASSEMBLY, FIAIL BAUNCING
NON-SERVICEABLE
BLADE. CHIPPER
SCREW, 5/1 6-24 X 1.00
WASHER, HVSPTLK .328X .60X .09
NUT. 5/1 6-24 REGHCTRLK
PIN. FLAIL .50 X 2.81
FLA’IL
SPACER, SPEC .515X 1.00X .700
SPACER, SLEEVE .515 X 1.00X .700
WASHER. FLAT .50 X .94X .06
FLATWASHER, .515X 1.00X .030
RIVET, OVSET .188X 1.094
BLADE, ROTARY SHREDDER
SCREW, 5/16-18 X 1.75
WASHER, FLAT .328 X .75X .077
WASHER, FLAT .375 X .88 X.125
NUT, 5/1 6-18 REGHCTRLK
SCREW, 3/8-20 X 2.25 IN.
WASHER, REGSPTLK .393X .68X .10
WASHER, .39[DX1 .25 DX.07 BELLVIL
ENGINE MOUNT/AXLE ASSEMBLY
TUBE & SEAL ASSY.
DIPSTICK
SCREW, 10-32 X .38 WAHHTAP
OWNER’S MANUAL, ENG
OWNER’S MANUAL, FR/GER
16
++. p
‘?
,.
3303730-3282420
327 142(X282420
..
449
