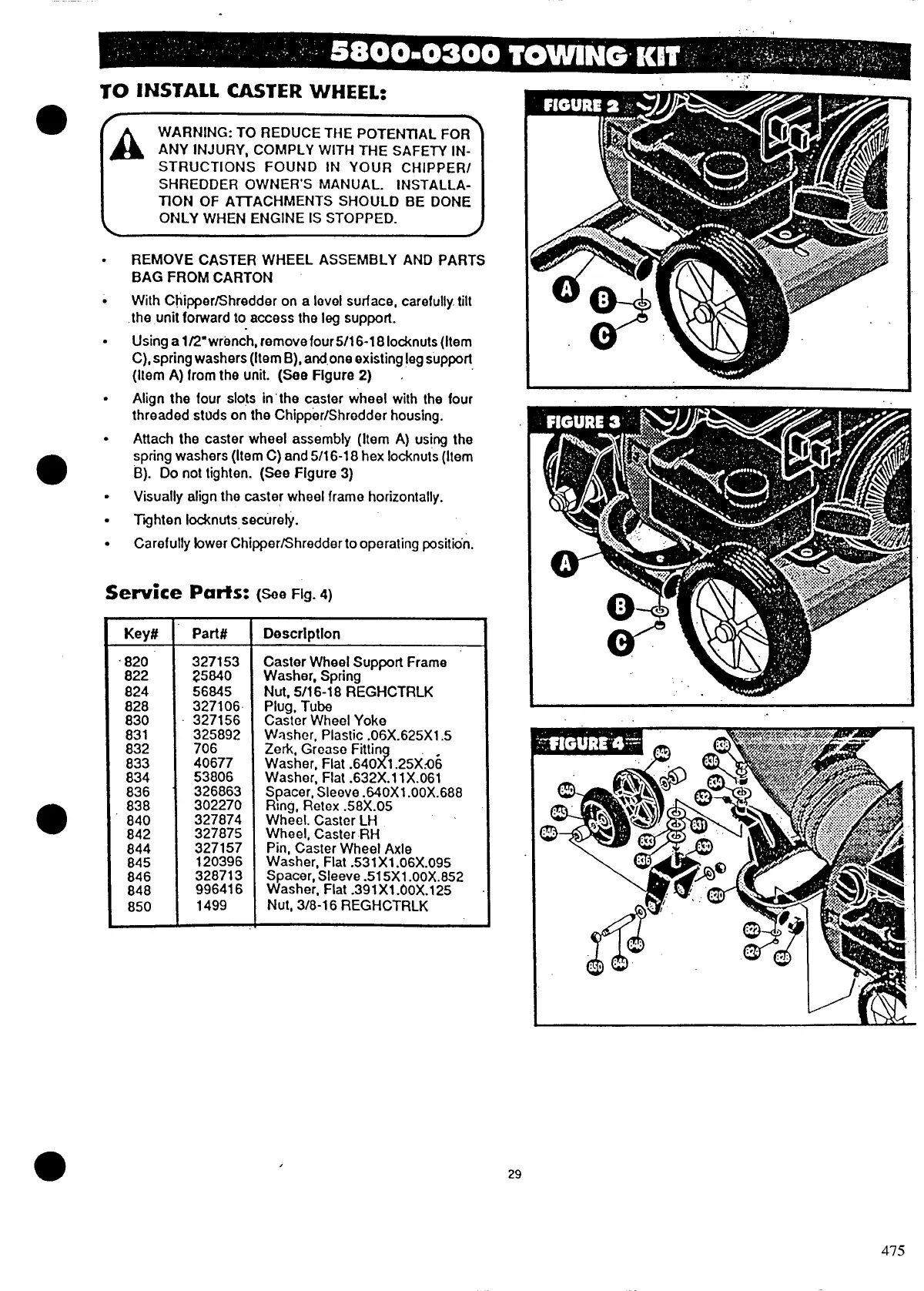

70 lNSTALL CASTER WHEEL:
F ●
A
WARNING: TO REDUCE THE POTENTtAL FOR
ANY INJURY, COMPLY WITH THE SAFETY iN-
STRUCTIONS FOUND IN YOUR CHIPPER/
SHREDDER OWNER’S MANUAL. lNSTALLA-
TtON OF ATTACHMENTS SHOULD BE DONE
ONLY WHEN ENGINE IS STOPPED.
L
d
●
REMOVE CASTER WHEEL ASSEMBLY AND PARTS
.
.
.
.
●
.
BAG FROM CARTON
With Chipper/Shredder
on a IOW4 surface, carefully till
the
unit forward to access the leg support.
Using
a 1/2”wrench, remove four 5/1 6-18 locknuts (Item
C), spring washers (Item B), andone existing leg support
(Ilem A) from the unit. (See Figure 2) .
Align the four slots in” the caster wheel with the four
threaded studs on the Chipper/Shredder housing.
Attach the caster wheel assembly (Item A) using the
spring washers (Item C) and 5/16-18 hex locknuts (Item
B). Do not tighten. (See
Figure 3)
Visually align
the caster wheel frame horizontally.
Tghten Iocknuts,secure$.
Carefully fewer Chipper/Shredder to operating positio”n.
Service
Patfs: (See Fig. 4)
Key#
Part# Descrlptlon
820 327153 Caster
Wheel Support Frame
822
25840
Washer, Spring
824
56845
Nut. 5/1 6-18 REGHCTRLK
828
327106
Plug, Tube
830
327156
Caster Wheel Yoke
831
325892
Washer, Plastic .06X.625X1.5
832
706
Zerk, Grease Fittin
833
40677
?
Washer, Flat .640 1.25X~6
834
53806
Washer, Flat .632 X.1 lX.061
836
326863
Spacer, Sleeve .640X1 .00X.688
838
302270 Ring, Retex .58X.05
840
327874
Wheel. Caster LH
842
327875
Wheel, Caster.RH
844
327157
Pin, Caster Wheel Axle
845
120396
Washer, Flat .531 Xl .06X.095
846
328713
Spacer, Sleeve .51 5X1 .00X.852
848
996416
Washer, Flat .391 Xl .00X.125
850
1499
Nut, 3/8-1 6 REGHCTRLK
