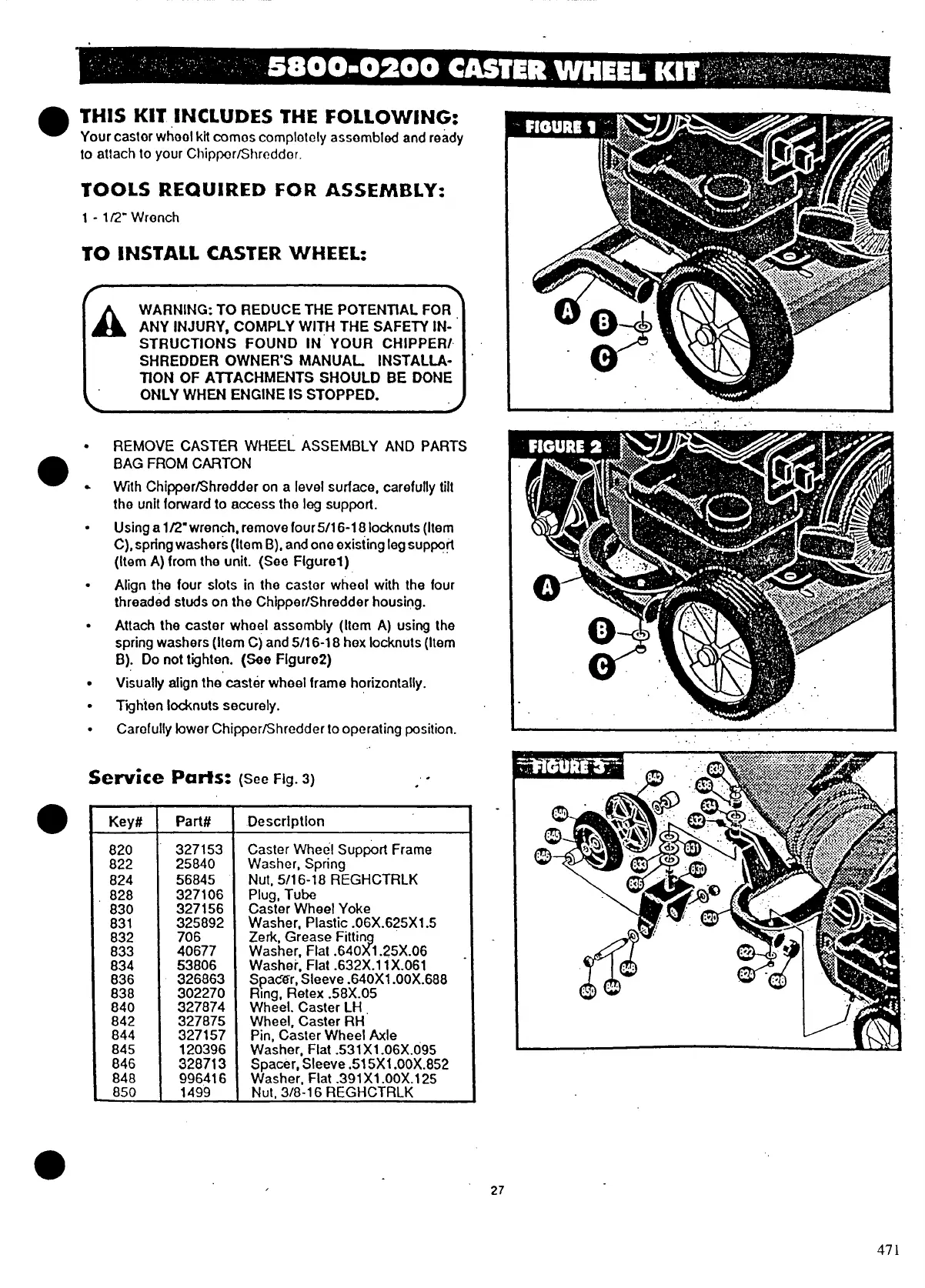

McCulloch Pro-Mac 5000 - 5800-0200 CASTER WHEEL KIT; TOOLS REQUIRED FOR ASSEMBLY; TO INSTALL CASTER WHEEL

●
THIS KIT INCLUDES THE FOLLOWING:
Your castor whool kit comos complotcly assembled and ready
to attach
to your Chipper/Shredder
TOOLS REQUIRED FOR ASSEMBLY:
1- 1/2”
Wrench
TO INSTALL CASTER WHEEL:
A
WARNING: TO REDUCE THE POTENTIAL FOR
ANY
INJURY, COMPLY WITH THE SAFETY iN-
STRUCTIONS FOUND IN
YOUR CHIPPER/
SHREDDER
OWNERS MANUAL lNSTALLA-
TfON OF ATTACHMENTS SHOULD BE DONE
ONLY WHEN ENGINE IS STOPPED.
1
.
REMOVE CASTER WHEEL ASSEMBLY AND PARTS
●
BAG FROM CARTON
.
With Chipper/Shredder on a level surface, carefully tilt
the
unit (o-rWard to access the leg support. -
.
Using a 1/2-wrench, remove four 5/1 6-18 Iod(nuts (Item
C), spring washers (Item B), and one existing leg suppo~
(Item A) from the unit. (Soo Figurel)
.
Align the four slots in the caster wheel with the four
threaded studs on the Chipper/Shredder housing.
●
Attach the caster wheel assembly (Item A) using the
spring washers (item C) and 5/16-18 hex iocknuts (Item
B). Do not tghten. (See Figuro2)
.
Visually align the’castir wheel frame horizontality.
.
Tghien locknuts securely.
●
Carefully lower Chippor/Shredder to operating position.
S63EWiCe Pa?fSS (See Fig. 3)
.
.
Key#
Part# Description
820
327153
Caster Wheel Support Frame
822 25840
Washer, Spring
824
56845 Nut, 5/1 6-18 REGHCTRLK
828
327106 Plug, Tube
830
327156 Caster Wheel Yoke
831
325892
Washer, Piastic .06X.625X 1.5
832
706 Zerk, Grease Fittin
833
40677 t
Washer, Flat .640 1.25X.06
834
53806
Washer, Fiat .632X.1 1X.061
836 326863 SpaCar, Sleeve .640X1 .00X.688
838 302270
Ring, Retex .58X.05
84o 327874 Wheel. Caster LH.
842 327875
Wheel, Caster RH
844
327157
Pin, Caster Wheel Axle
845
120396
Washer, Flat .531 Xl .06 X.095
846
328713
Spacer, Sleeve .515X1 .00X.852
848
996416
Washer, Fiat .391 Xl .00X.125
850
1499
Nut, 3/8-1 6 REGHCTRLK
;
