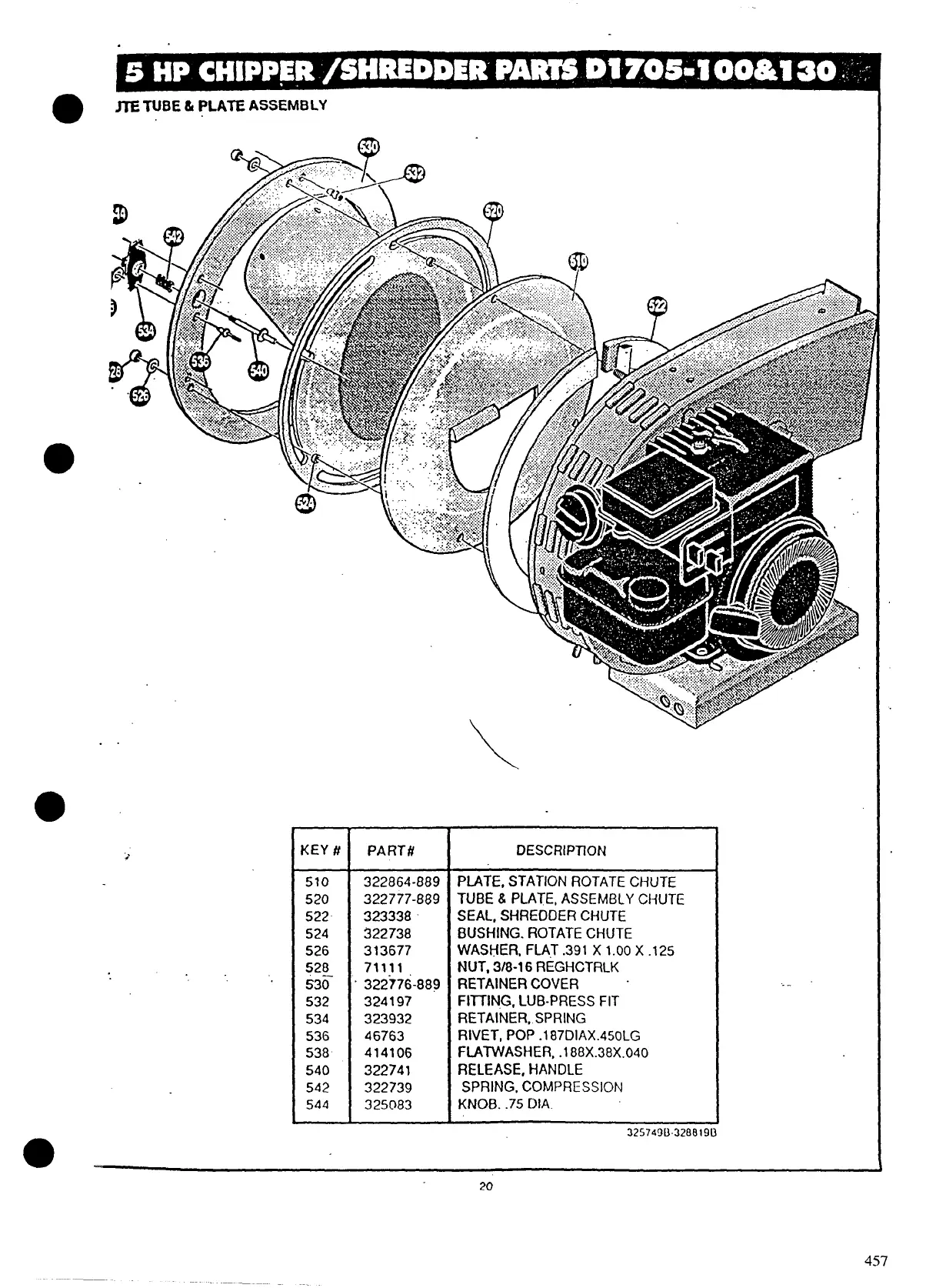

McCulloch Pro-Mac 5000 - CHUTE TUBE & PLATE ASSEMBLY

.
JTETUBE & PLATE ASSEMBLY
‘.
1-
(EY #
PART#
DESCRIPTION
510 322864-889 PIATE, STATION ROTATE CHUTE
520
322777-889 TUBE & PLATE, ASSEMBLY CHUTE
522 323338
SEAL,SHREODER CHUTE
524 322738
BUSHING.ROTATE CHUTE
526 313677
WASHER, FL$T .391 X 1.00X .125
528 711-11
NUT, 3/8-1 6 REGHCTRLK
s36- 322776-889 RETAINER COVER “
532 324197
FITTING, IJ.JB-PRESS FIT
534 323932
RETAINER, SPRING
536
46763 RIVET, POP .187 DIAX.450LG
538
414106
FIATWASHER, .188X.38X.040
540 322741
RELEASE, HANDLE
542 322739
SPRING, COMPRESSION
544
325083
KNOB. .75 DIA.
-, -,.7.-,, -.-, ””. ,n,-
.. .
3
●
20
457
