(EY #
PART#
DESCRIPTION

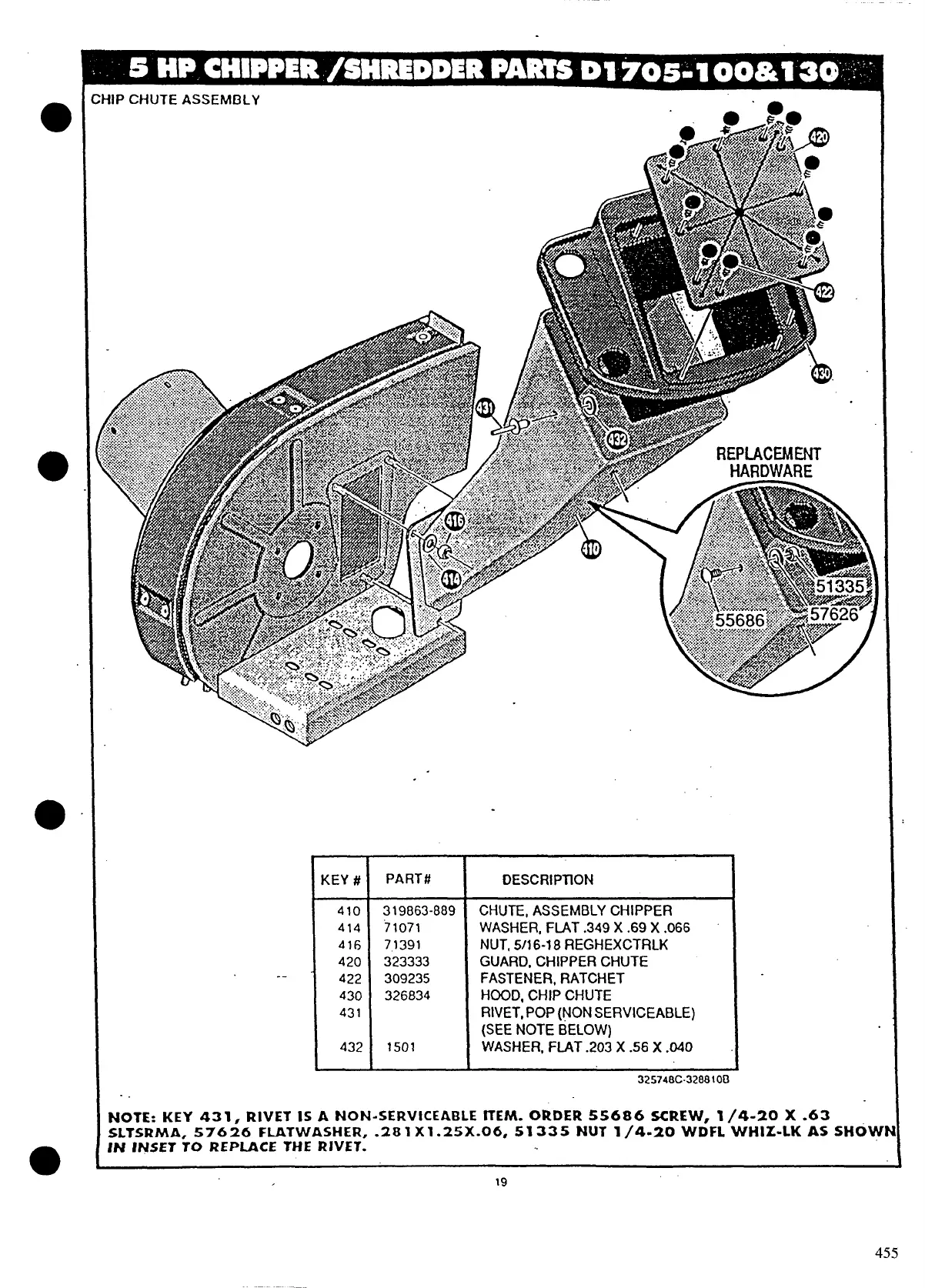

410 319863-889 CHUTE, ASSEMBLY CHIPPER
414
71071 WASHER, FIAT .349 X .69X .066
416
71391
NUT, 5/1 6-18 REGHEXCTRLK
420
323333 GUARD, CHIPPER CHUTE
422
309235 FASTENER, RATCHET
430 326834
HOOD,
CHIP CHUTE
431
RIVET,
POP (NON SERVICEABLE)
(SEE NOTE BELOW)
432
1501
WASHER, FIAT .2o3 X .56 X .040
. . . . .. .
“n..14 al-
NOTE: KEY 431, RIVET Is A NON-SERVICEABLE ITEM. ORDER 55686 SCREW, 1/4-20 X .63
SLTSRMA, 57626 FLATWASHER, .
281 Xl .25 X.06, 51335 NUT 1/4-20 WDFL WHIZ-LK AS SHOM
IN
f?+JSET TO REPLACE THE RIVET.
19
455
