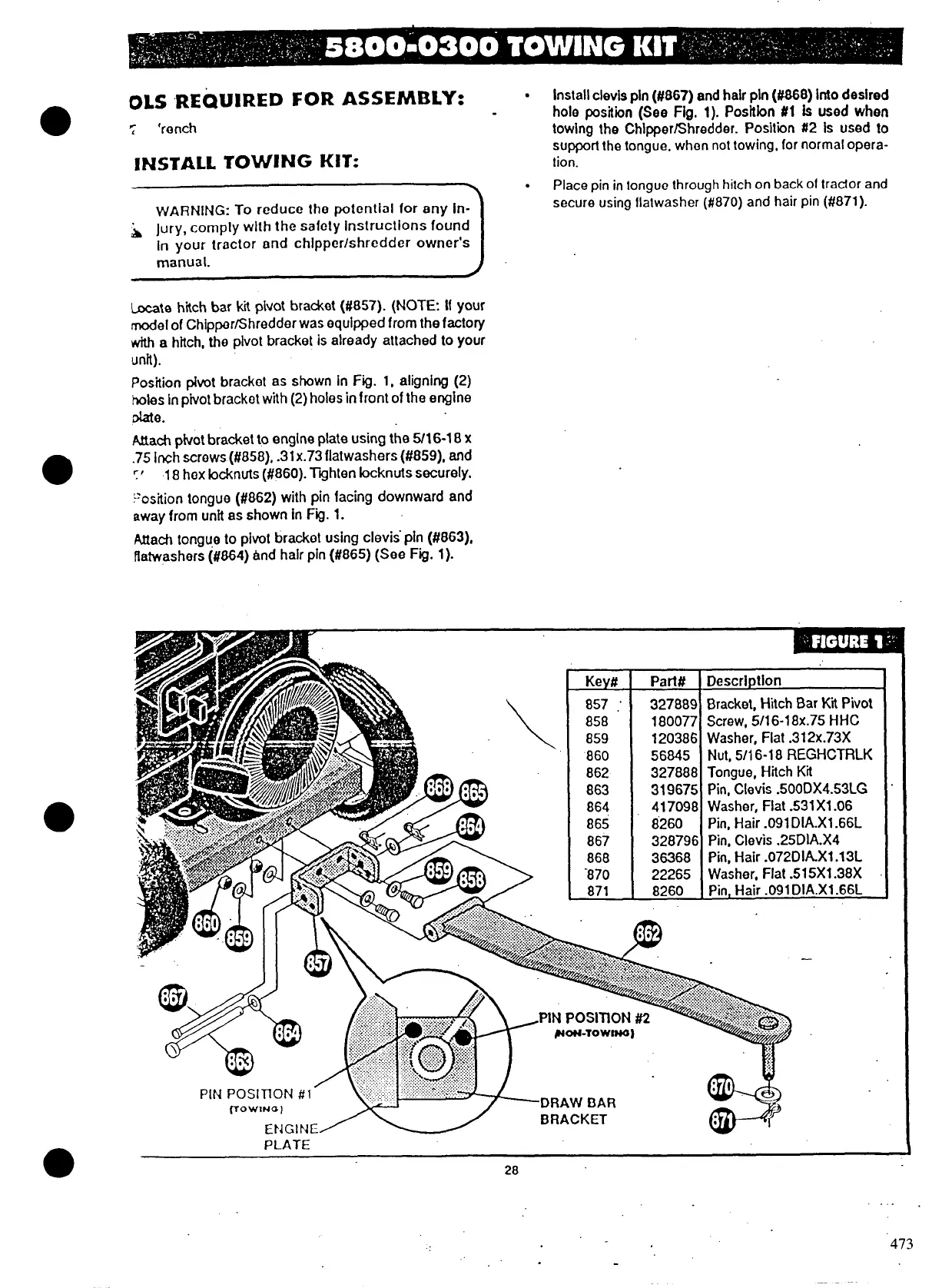

01S REQUIRED FOR ASSEMBLY: ●
Install clevis pin (#867) andhair pln (W68) intodesired
hole position(See
Fig. 1). Positbn #1 is used when
:
‘ranch
towing the Chipper/Shredder. Position #2 is used to
support the
tongue, when not towing, for normal opera-
INSTALL TOWING KIT:
tion.
~.”
Place pin in tongue through hitch on back Of tractor and
WARNING:
To reduce the potential for any in-
secure
using flatwasher (#870) and hair pin (#871).
& jury, comply with the saf@ty instructions found
in your tractor and chipper/shredder owner’s
Imca\e hitch bar kii pivot bracket (#857). (NOTE. If your
model of Chipper/Shredder was equipped from the factory
with a hitch, the pivot bracket is already attached to your
unit).
Position pivot braclmt as shown in
Fig. 1,aligning (2)
tales
in pivot bracket with (2) holes in f rent of the engine
date.
Attach pivot bracket to engine plate using the 5/16-18x
●
.75 inch screws (#858), .31x.73 flatwashers (#859), and
:‘ 18 hox bcknuts (#860). Tighten bcknuts securely.
:osition tongue (#862) with pin facing downward and
away from
unit as shown in Fg. 1.
Attach tongue to pivot bracket using clevis pin (#863),
flatwashers (#864) And hak pin (#865) (See Fw. 1).
-EY!L
857 ,“
858
859
860
862
863
864
865
867
868
’870
871
Pari#
Description
327889 f3racket, Hitch Bar Kii Pivot
180077 Screw, 5116-1 8x.75 HHC
120386 Washer, Flat .31 2x.73X
56845 Nut,
5116-18 REGHCTRLK
327888
Tongue, Hitch Kt
319675 Pin, Clevis .500DX4.53LG
417098
Washer, Flat .531 Xl .06
8260
Pin, Hair .091 DIA.X1 .66L
328796 Pin, Clevis .25DIA.X4
36368 Pin, Hair .072DIAX1 .13L
22265
Washer, Flat .515X1 .38X
8260
Pin, Hair .091 DIA.X1 .66L
28
“473
