OtE:
●
,barkif mus~ be used with castor whool kit (See separate
zwuctlon shoot suppllod with castor wheel for caster
leel Installation).
●
Imovo draw bar kit pivot bracket (# f357). longuo (#862) and
rts bag from Iho carton.
DOLS REQUIRED FOR ASSEMBLY: .
1/2 Inch wrench (or adjustable wrench)
0
INSTALL HITCH KIT:
●
~.
WARNING: To reducethe potential for any InJury, .
comply with the safety instructions found In
your tractor and chlpperlshredder
owners
Locate hitch bar kit pivot bracket (#857). (NOTE: If
your
model of Chipper/Shredder was equipped from the
●
●
factory with”a hitch, the pivot bracket Is already “.
.atiached ‘to your unit).

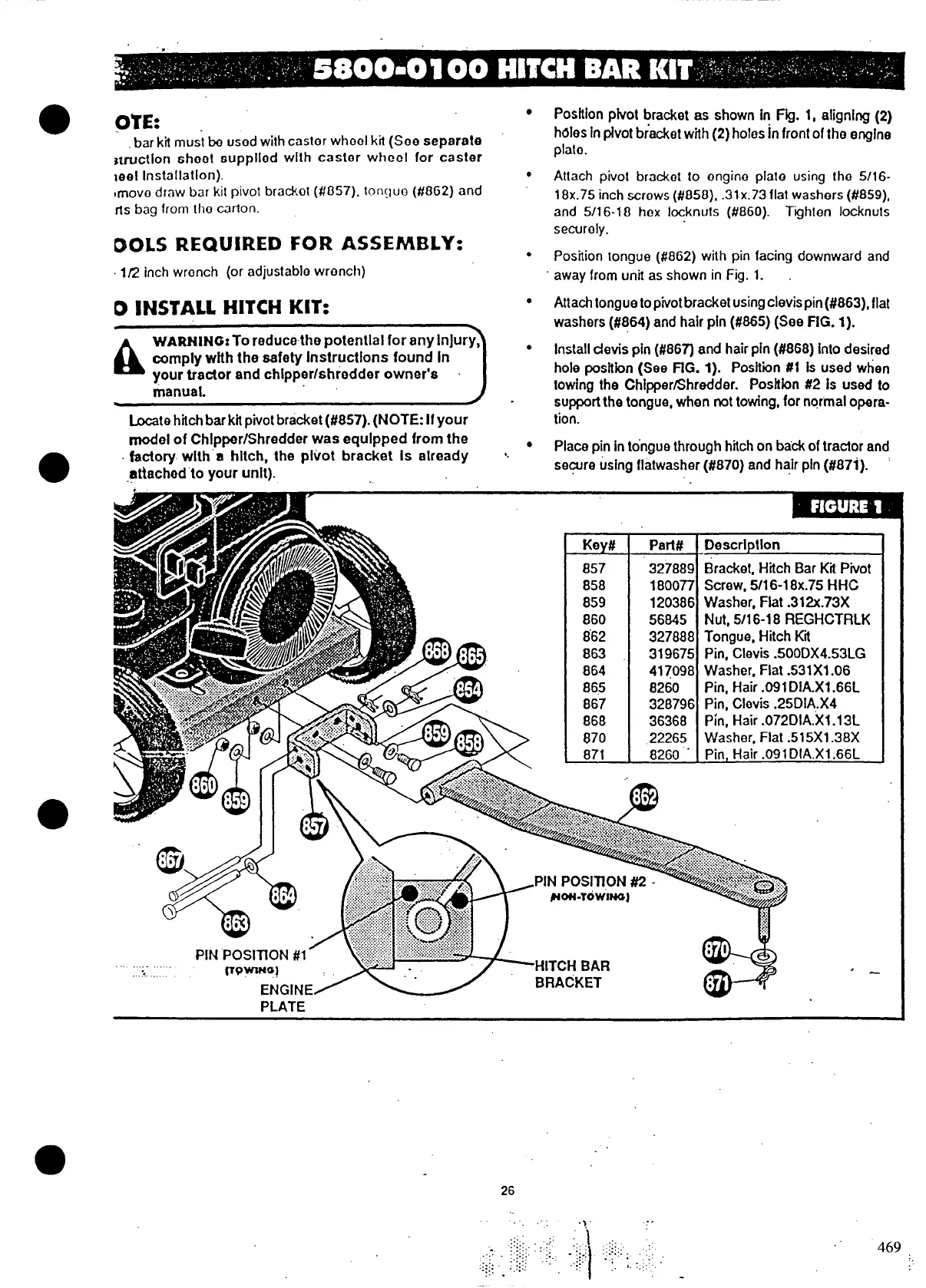

Position pivot bracket as shown in Fig. 1, aligning (2)
holes in pivot bracket with (2) bolos In front of the engine
plate.
Attach
pivot bracket to ongino plato using tho 5/16-
18x.75 inch screws (#t158), .31x.73 flat washc+rs (#859),
and 5/1 6-18 hox locknuts (#860). Tghton locknuts
securely.
Position tongue (#862) with pin facing downward and
away from
unit as shown in Fig. 1.
Anadr tongue to pivot bracket using clevispin (#863), Ilat
washers (#864) and hair pin
(#865) (See FIG. 1).
Install devis pin (#867) and hairpin
(#868) into desired
hole position (See flG.
1). Position #1 1s used when
towing the Chipper/Shredder.
Position #2 is used to
support the tongue, when not towing, for normal opera-
tion.
Place pin in tongue through htich on back of tractor and
se$we using flatwasher (#870) and hair pin (#871). ‘
X!2Y!L
857
858
859
860
ti62
863
864
865
867
868
870
871
Part#
327889
180077
120386
56645
327888
319675
417098
8260
328796
36368
,22265
8260 -
Description
Bracket, Hitch Bar Kti Pivot
Screw, 5/1 6-18x.75
HHC
Washer, Flat .312x.73X
Nut, 5/16-18 REGHCTRLK
Tongue, Hitch Kfi
Pin, Clevis .500DX4.53LG
Washer, Flat .531X1 .06
Pin, Hair .091 DiA.Xl .66L
Pin, Clovis .25 DIA,X4
Pin, Hair .072 DIA.X1 .13L
Washer, Flat
.51 5X1 .38X
Pin, Hair .091 DIA.X1 .66L
-
.
PLATE
—
._
26
.,,.
;,
. .
,.
469
