Overview
2 - 4

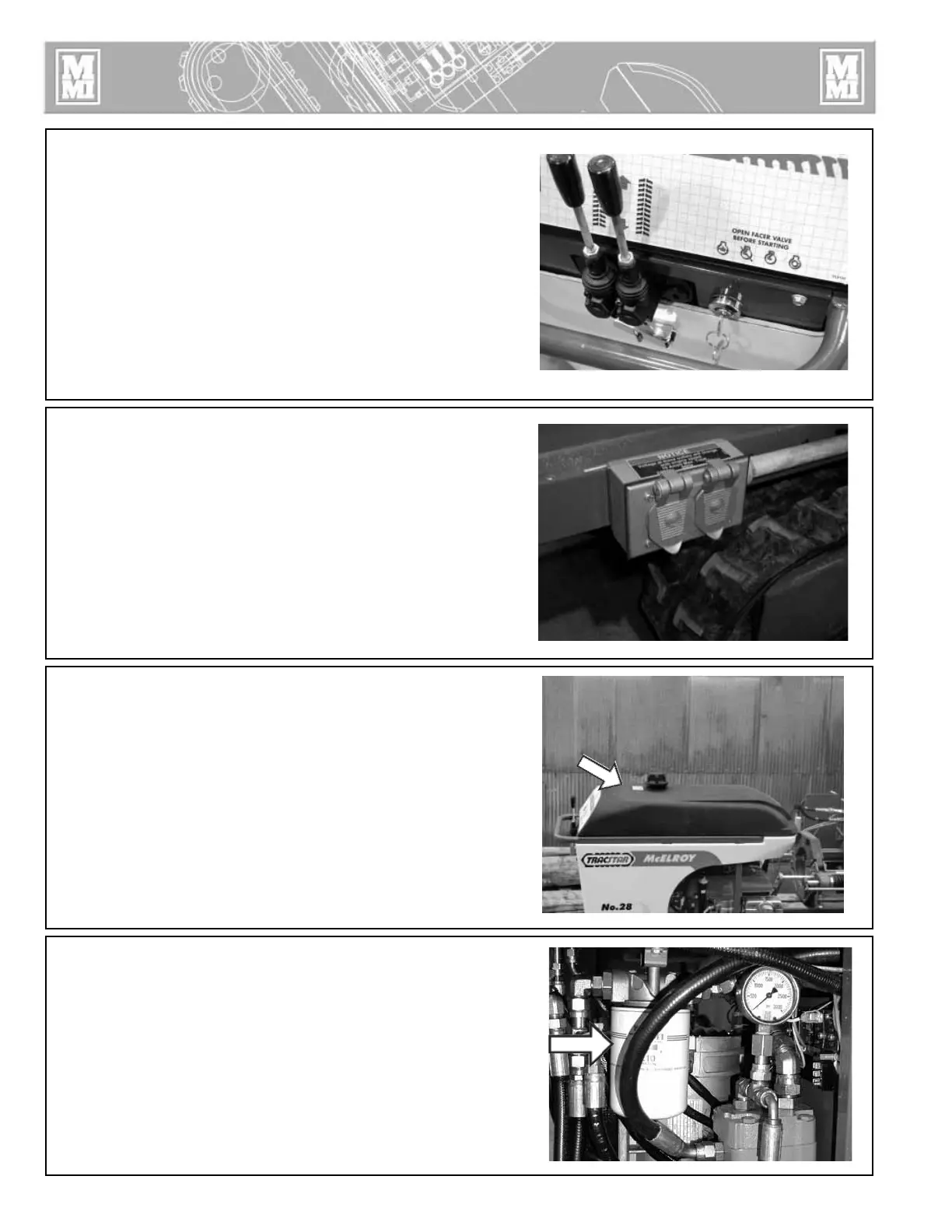

Hydraulic Oil Filter
This machine is equipped with a 10 Micron filter on the return
side of the hydraulic system.
TX01893-11-15-00
PH01916-11-15-00
Diesel Engine Controls
Read the operating and maintenance instructions for the engine
before operating.
There is a key ignition on the console that shows the preheat off,
run, and start positions.
Gas Engine Controls
Choke and throttle control is on the dash.
There is a key ignition on the console that shows the off, run, and
start positions.
TX01986-1-10-02
PH01969-11-15-00
Oil Reservoir
The oil reservoir is located above the engine.
TX02306-7-28-04
PH02709-07-29-04
Power for Heater
The heater cord plugs into a receptacle on the frame.
The 110V receptacle is used for the No.28 Butt Fusion Heater.
The 220V receptacle is used for the No.412 Butt Fusion Heater
and the No.28 Sidewall Heaters.
TX01856-9-28-00
PH01922-11-15-00
