McElroy TracStar 412 - Specifications; Tracstar No.28 & No.412 Fusion Machine Specifications

11 - 1
Specifications
TracStar
®
No.28 Fusion Machine
Specifications:
 Engine: 11HP, OHV, Air Cooled
 Starting System: Electric and Recoil
 Fuel Type: Gasoline
 Fuel Tank Capacity: 5 Gals.
 Operational Tank Capacity: 8 Hrs.
 System Pressure: 1750 PSI
 Hydraulic Reservoir Capacity: 8 Gals
 Vehicle Speed: 2.5 MPH
 AC Output: 120V & 240 V, 60Hz, 15 Amp
 Entire Machine Weight: 1320 lbs (598.7kg)
 3-jaw Carriage Weight: 185 lbs (83.9kg)
 4-jaw Carriage Weight: 230 lbs (104.3kg)
 Facer Weight: 39 lbs (17.7kg)
 Heater Weight: 17 lbs (7.7kg)
TracStar
®
No.412 Fusion Machine Specifications:
 Engine: 18.5 HP Liquid cooled
 Starting System: Electric
 Fuel Type: Diesel
 Fuel Tank Capacity: 5 Gals.
 Operational Tank Capacity: 8 Hrs.
 System Pressure: 1750 PSI
 Hydraulic Reservoir Capacity: 8 Gals
 Vehicle Speed: 2.5 MPH
 AC Output: 120 & 240V, 60Hz, 15 Amp
 Entire Machine
Weight: 1 ,500 lbs (680kg)
 3-jaw Carriage Weight: 283 lbs (128.4kg)
 4-jaw Carriage Weight: 343 lbs (155.6kg)
 Facer Weight: 57 lbs (25.6kg)
 Heater Weight: 22 lbs (10kg)
0
100
200
300
400
500
600
700
800
900
1000

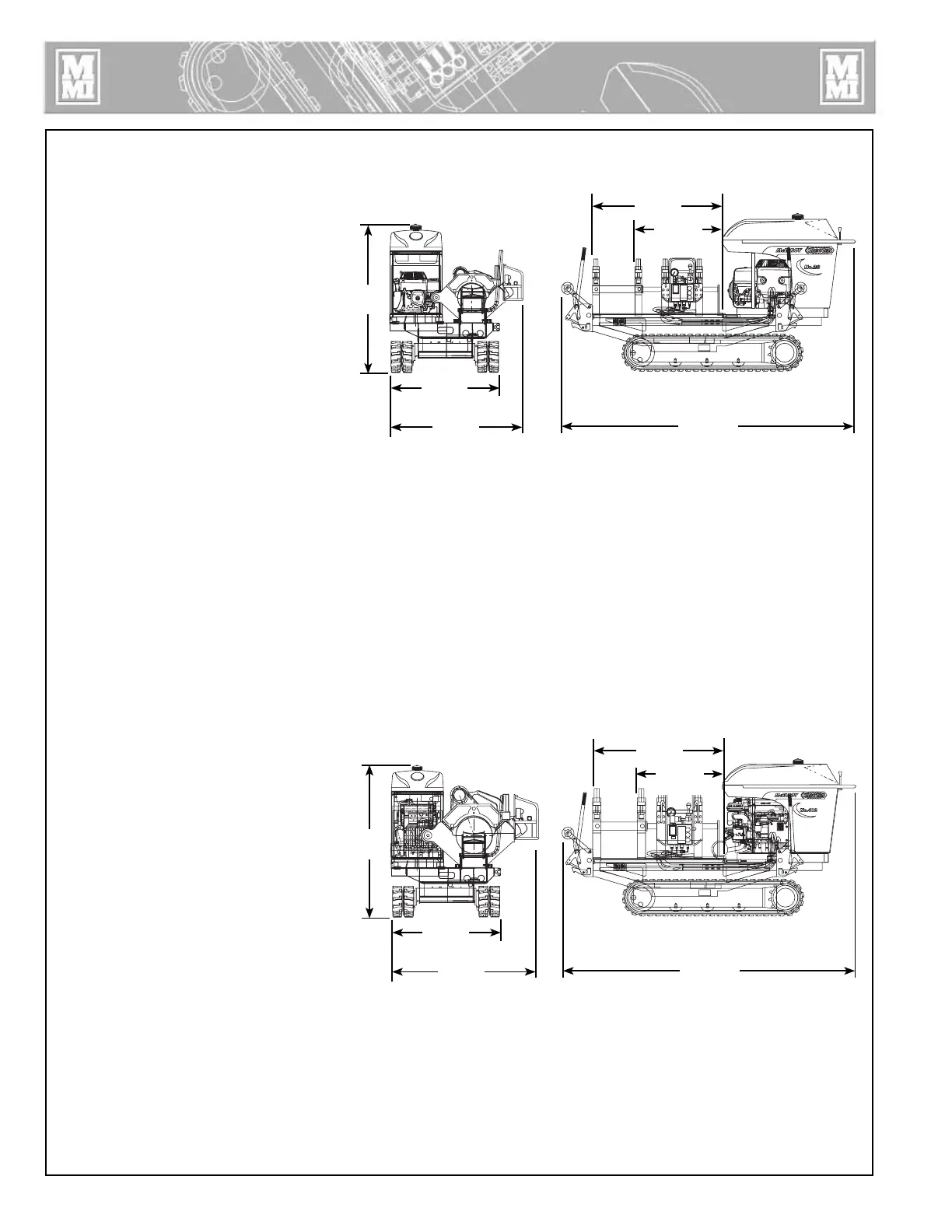

DIRECTIONAL
CONTROL
VALVE
FACING
PRESSURE
HEATING
PRESSURE
FUSING
PRESSURE
SELECTOR
VALVE
50.4''
1280mm
96''
22438mm
33''
838mm
48.5''
1232mm
44''
1118mm
30''
762mm
0
100
200
300
400
500
600
700
800
900
1000
DIRECTIONAL
CONTROL
VALVE
FACING
PRESSURE
HEATING
PRESSURE
FUSING
PRESSURE
SELECTOR
VALVE
47.4''
1204mm
96''
2438mm
33''
838mm
43''
1092mm
44''
1118mm
30''
762mm
