Special Operations
- Lifting Fusion Machine
6 - 2

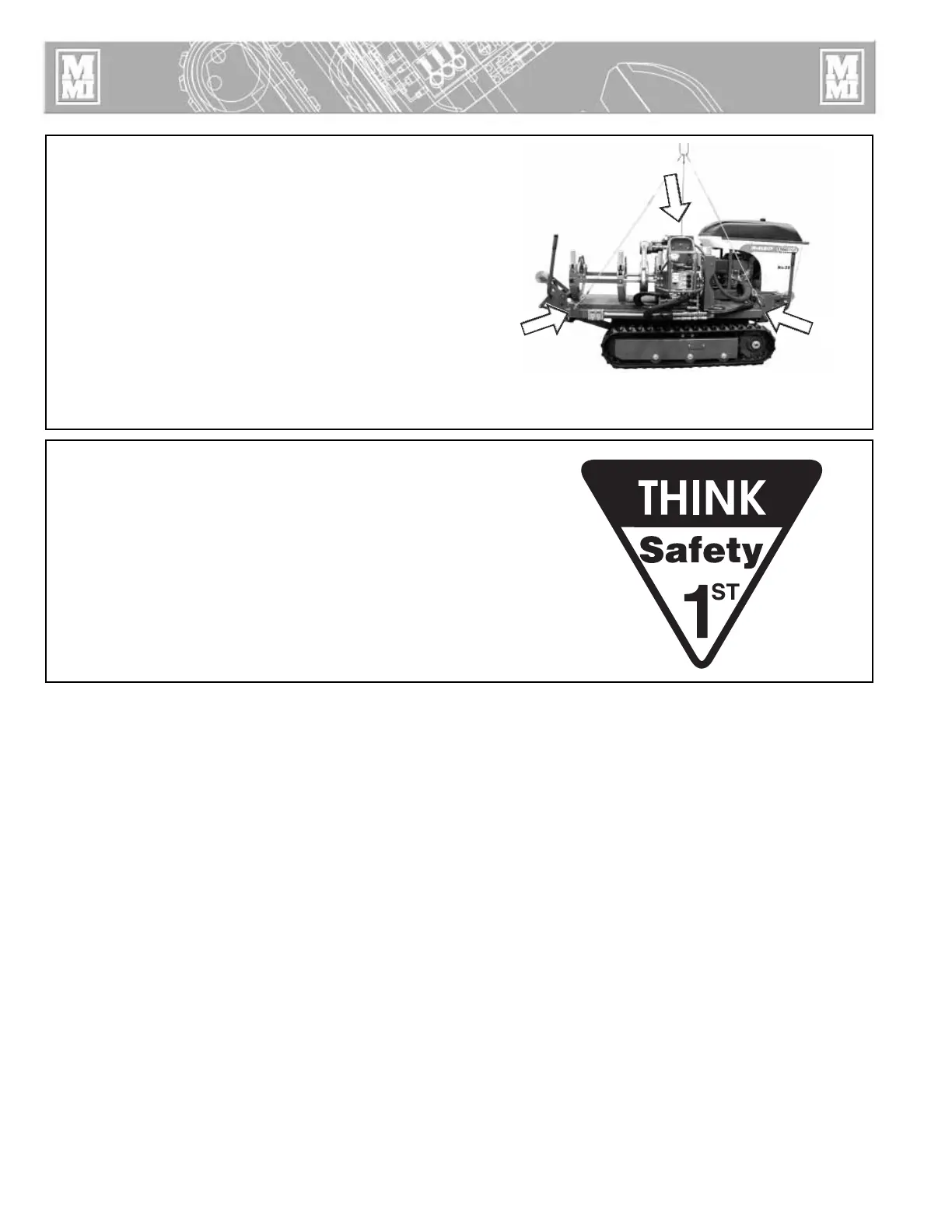

Attach Slings
Attach the sling to the pick-up points. The cables are color coded
to the chassis. Connect the yellow cables to the yellow lift points,
etc. For machines that are not color coded, attach the longest
leg cable at position A and the shortest leg cable at position B.
When lifting the TracStar
®
No.618, pivot the facer out before
attaching the lifting sling. The cable attached at position A will
run through the inner fixed jaw. Small pipe diameter inserts in
the upper fixed jaw may need to be removed to prevent the
cable from deflecting.
TX02059-9-19-02
Lifting Safety
Follow all applicable federal, state, local, and industry specific
regulations when lifting unit.
Never carry loads over people.
TX00410-10-12-93
SAFE1ST-12-14-92
PH01937-11-15-00
B
A
C
