8
Connecting Components
The identification of Rear Panel Connections for the
C47 Audio Preamplifier is located on a separate folded
VKHHWFRQWDLQHGLQWKH2ZQHU¶V0DQXDO3DFNHW
Refer to separate sheet “Mc2B” for the Rear Panel
Connections.

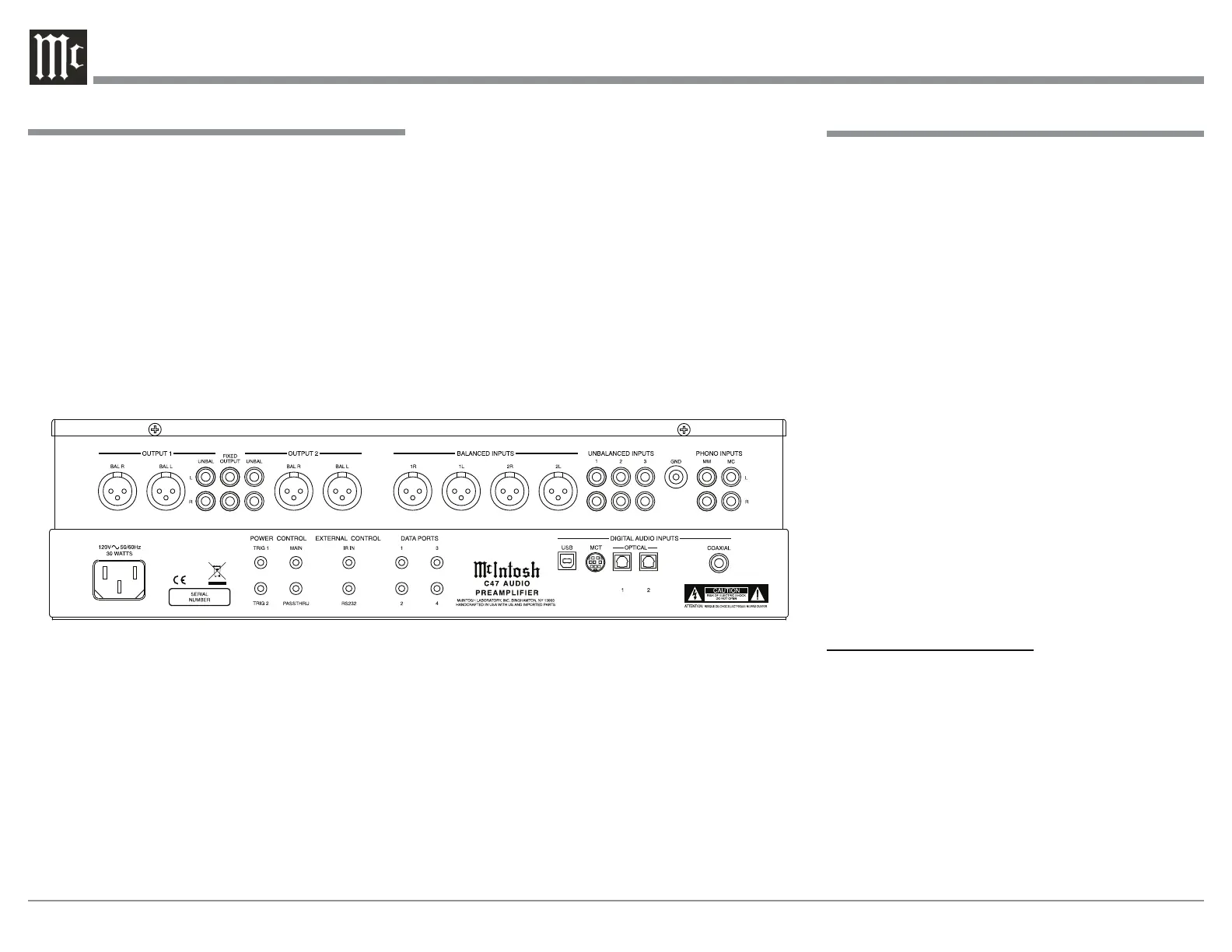

Rear Panel Connections
C47 Audio Preamplifer Rear Panel
The C47 has the ability to automatically switch power
2Q2IIWR6RXUFH&RPSRQHQWVYLDWKH3RZHU&RQ-
trol connections. The Data Port Connections allow
for the remote operation of basic functions using the
C47 Remote Control HR085. With an external sensor
connected to the C47, remote control operation of the
system is possible from another room and/or when the
C47 is located in a cabinet with the doors closed.
The connection instructions below, together with
the C47 Input/Output/Control Connection Diagrams
located on the separate folded sheets “Mc1A/1B and
Mc2A”, are an example of a typical audio system.
Your system may vary from this, however the actual
components would be connected in a similar manner.
For additional information refer to “Connector and
Cable Information” on page 4.
Notes: 1. The C47 allows renaming of the Audio Inputs
Names as indicated on the Front Panel Infor-
mation Display. Example, “UNBAL 1” may be
changed to “TUNER” or your own personal
preference. Refer to Setup “Renaming Input” on
page 14.
2. For convenience, an “Input Assignment Chart”
on a separate sheet “Mc5A/5B” has been pro-
vided to keep track of changes.
Power Control Connections:
1. Connect a Control Cable from the C47 POWER
&21752/0$,1-DFNWRWKH3RZHU&RQWURO,Q
on the Turntable.
2. Connect a Control Cable from the Turntable Pow-
er Control Out Jack to the Digital Audio Player
Trigger In Jack.
3. Connect a Control Cable from the Digital Audio
3OD\HU7ULJJHU2XW-DFNWRWKH6$&'7UDQVSRUW
Power Control In Jack.
&RQQHFWD&RQWURO&DEOHIURPWKH6$&'7UDQV-
