8
Connecons on the Back
The Inputs
One stereo pair of Moving Coil Phono inputs (A)
One stereo pair of Moving Magnet Phono inputs (B)
Two pair of stereo Unbalanced inputs- RCA Jacks
(C) (D)
One Stereo pair of Balanced inputs (E)
One 1/8-inch jack for RS232 connector (K)
One 1/8-inch jack for wired IR Input (L)
One 1/8-inch PASSTHRU jack (N)
One AC power connector (I)
One USB upgrade service port (Y)
One DA2 expansion slot (X)
One Ground Connector (Z)
The Outputs
One Pair unbalanced RCA Output #1 (G)
One pair balanced XLR audio Output #1 (H)
One pair unbalanced RCA SUB/Output #2 (F)
Two 1/8-inch Data Output jack (J)
Three 1/8-inch jack Power Control (trigger) Outputs
(M) (O) (P)
Making Connecons
Phono/Unbalanced Inputs
Unbalanced Inputs such as the two PHONO
INPUTS and UNBALANCED INPUTS 1 and 2
use RCA/phono cables to connect the C8 to other
components. See “Figure 05– RCA/Phono Plugs”
on page 9. Traditionally, the red connector is
used to connect the right channel. You are free to
break tradition but keep the channels straight or left
and right might be reversed.

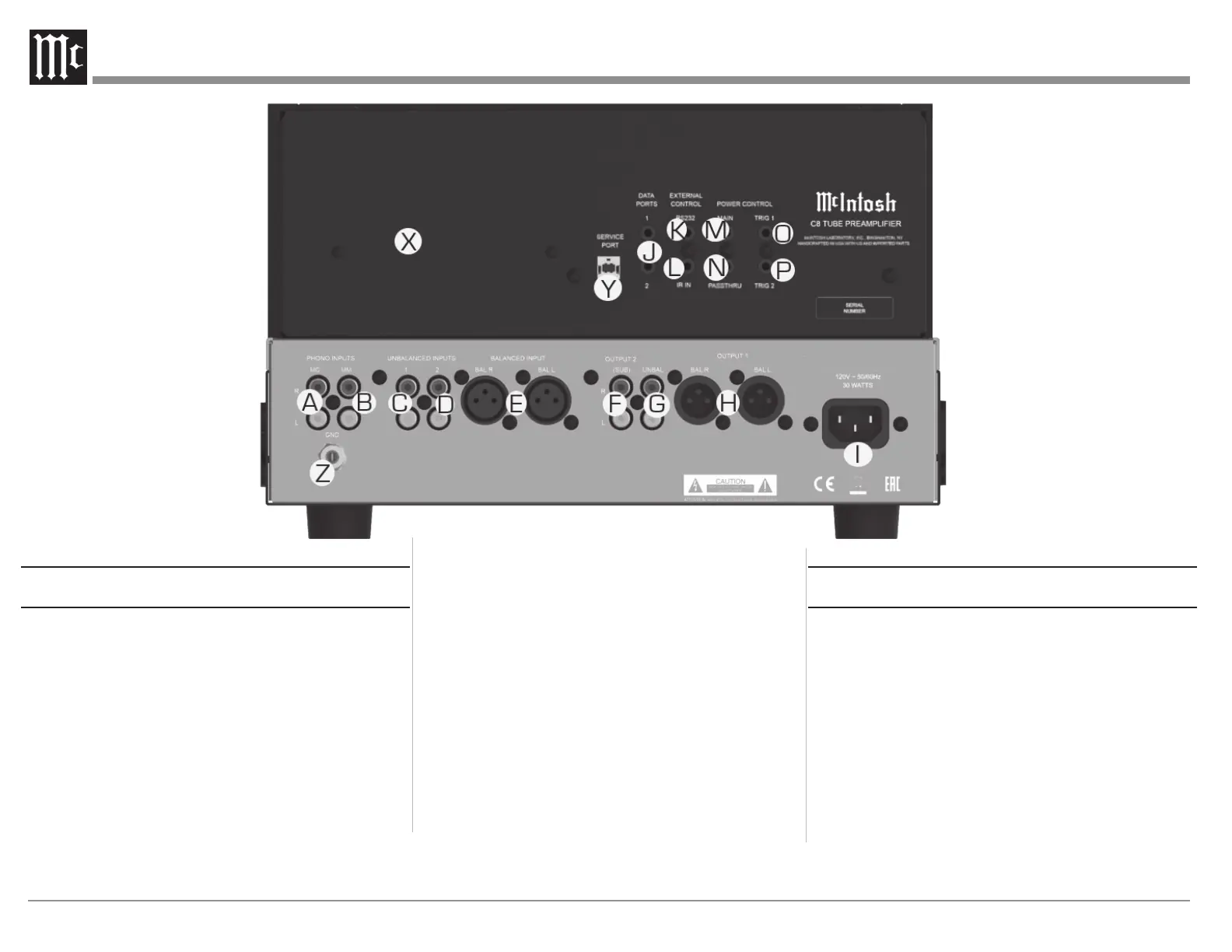

Figure 04– C8 Rear View
