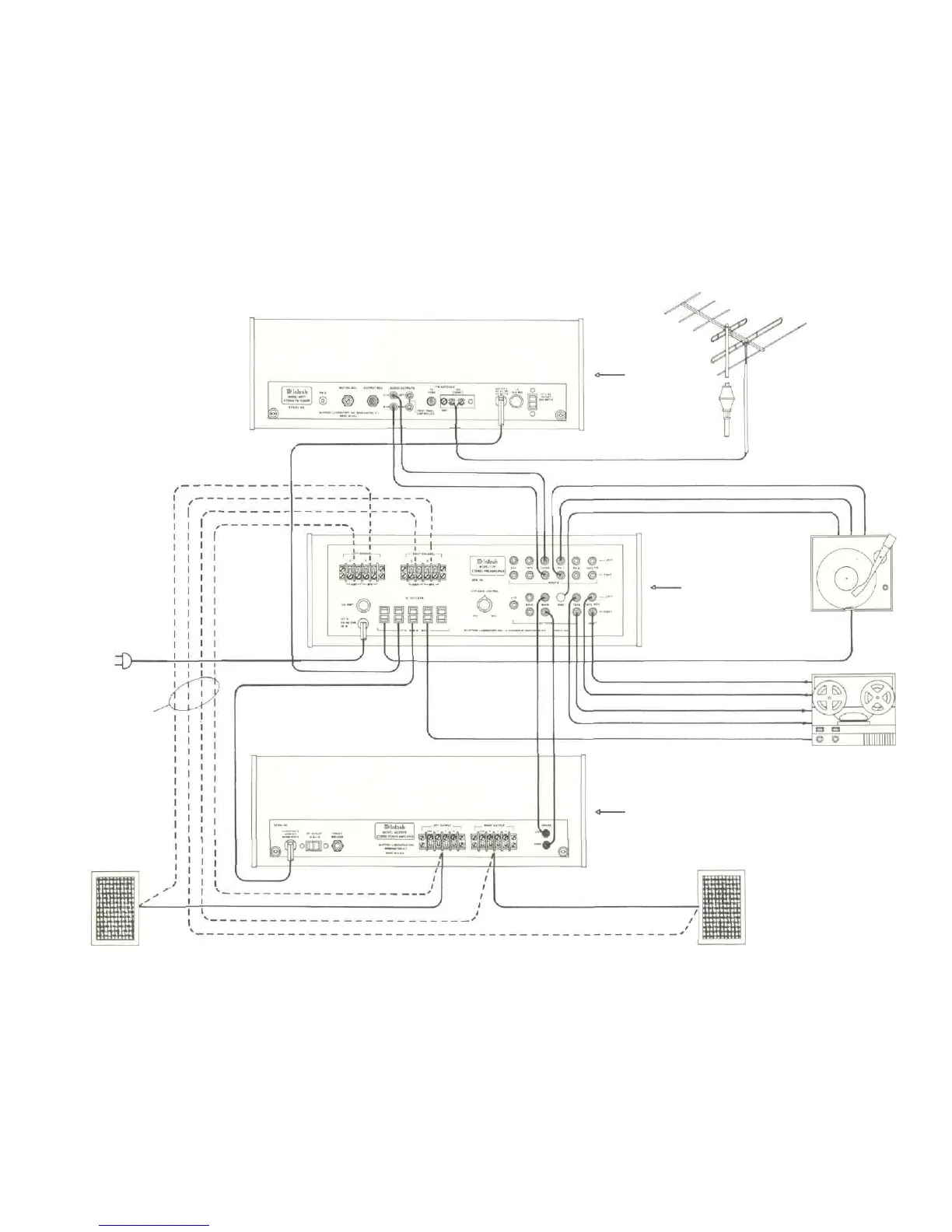

TYPICAL HOOK UP
TO 117 V
AC OUTLET
ALTERNATE SPEAKER
LEAD CONNECTION
TO BE USED WHEN
PHASE SWITCH AND
PHONE JACK ON C24
ARE TO BE USED.
12
TUNER
ROTATOR
DIRECTIONAL
FM ANTENNA
PREAMPLIFIER
MC2505 POWER AMPLIFIER
AC LINE
AC LINE
