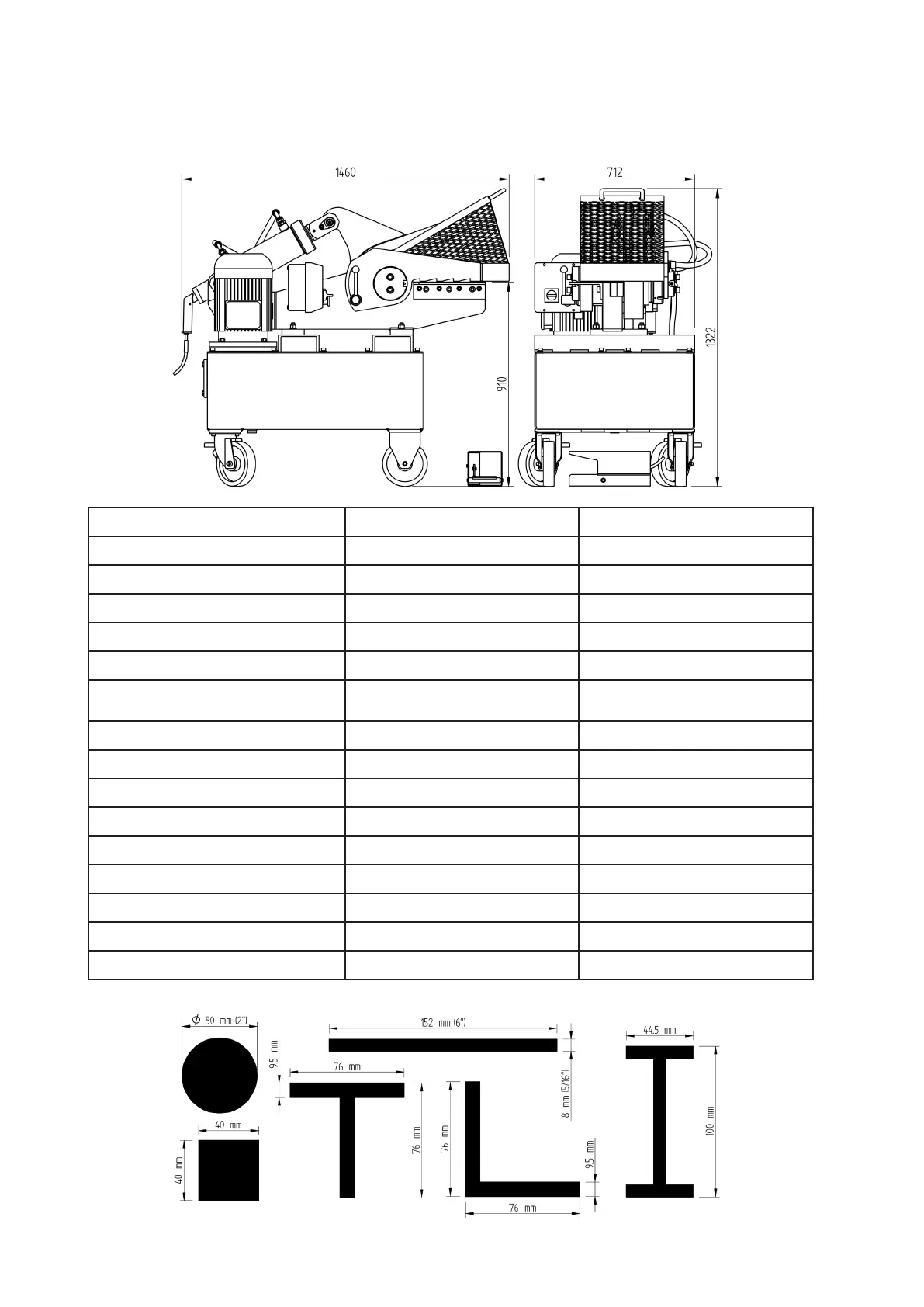

3.4. Dimension&TechnicalSpecication
3.4.1. 320 Shear
Single Phase Three Phase
Blade Length 320mm (12.5”) 320mm (12.5”)
Tip to Tip Opening 165mm (6.5”) 165mm (6.5”)
Shearing Height 910mm (35.8”) 910mm (35.8”)
Weight (with Oil) 830kg 830kg
Oil Capacity 200 Litres (44 Imp Gal) 200 Litres (44 Imp Gal)
Sound Pressure Level
(Operating Position - normal conditions)
TBC 77 +/-3 dBA
Peak Sound Pressure Level TBC 84 dBC
Sound Power Level TBC 83 +/- 3 dBA
Cutting Control Single Cut - Repeating Single Cut - Repeating
Standard Power Supply 63A 1ph 230V 50hz 32A 3ph 380-415V 50hz
Motor Rating 5.5kW (7.5hp) @ 1420rpm 7.5kW (10hp) @ 1450rpm
Max System Pressure 172Bar (2500psi) 172Bar (2500psi)
Max Shear Force 67 Tonnes 67 Tonnes
Cutting Speed (Max Stroke) up to 11 cycles/min up to 16 cycles/min
Cutting Speed (40% Stroke) up to 29 cycles/min up to 41 cycles/min
Cutting Capacity (Mild Steel 43A):
