McIntyre 320 - 500 LGT and 500 Catcutting Capacity (Mild Steel 43 A)

14
320/407/500/600.41912-ENG

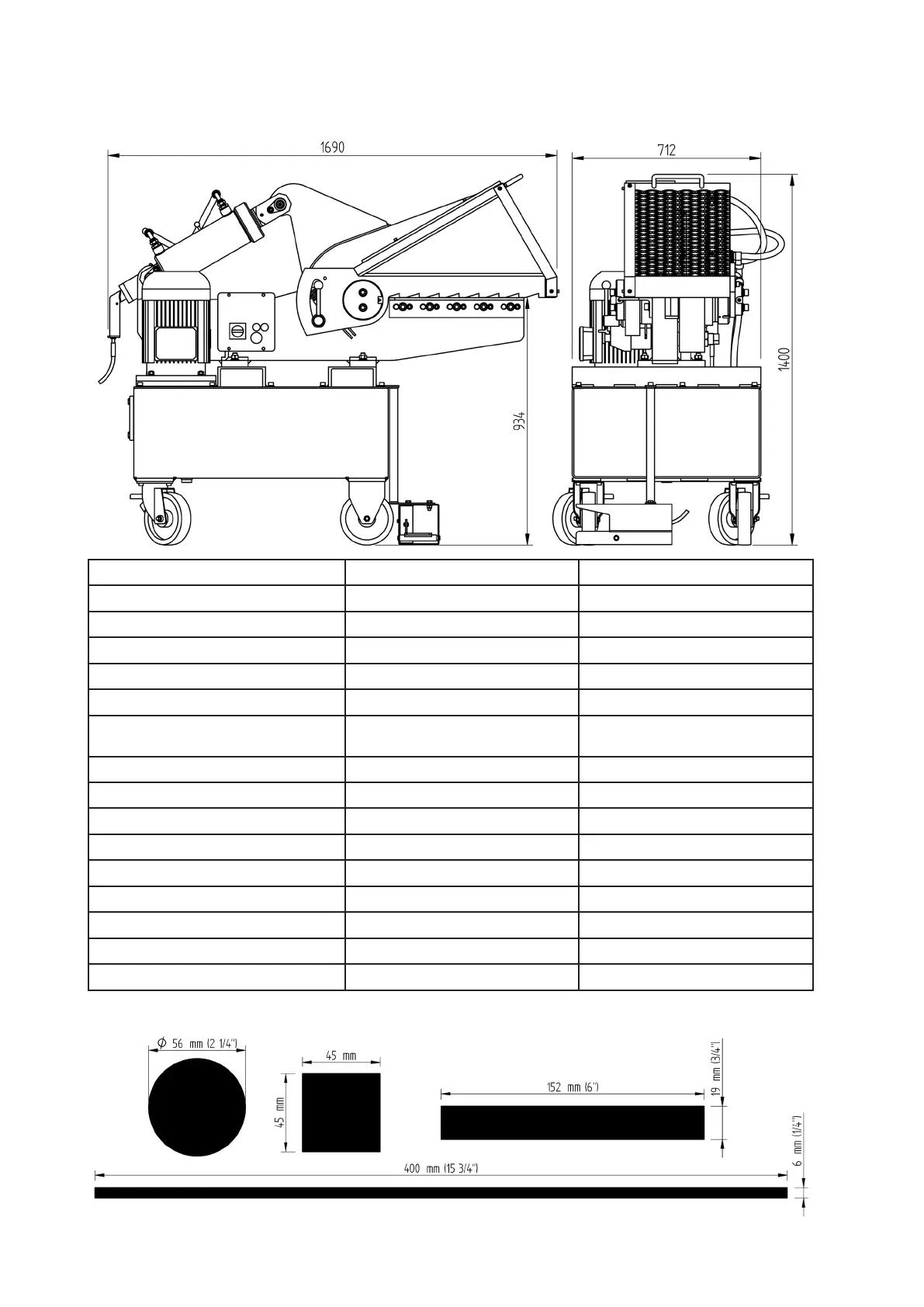

3.4.3. 500 LGT and 500 CAT
Single Phase Three Phase
Blade Length 508mm (20”) 508mm (20”)
Tip to Tip Opening 225mm (8.9”) 225mm (8.9”)
Shearing Height 934mm (36.75”) 934mm (36.75”)
Weight (with Oil) 990 kg 990 kg
Oil Capacity 200 Litres (44 Gal) 200 Litres (44 Gal)
Sound Pressure Level
(Operating Position - normal conditions)
TBC 76 +/-3 dBA
Peak Sound Pressure Level TBC 82 dBC
Sound Power Level TBC 74 +/-3 dBA
Cutting Control Single Cut - Repeating Single Cut - Repeating
Standard Power Supply 63A 1ph 230v 50hz 32A 3ph 380-415v 50hz
Motor Rating 5.5kW (7.5hp) @ 1420rpm 7.5kW (10hp) @ 1450rpm
Max System Pressure 193 Bar (2800 psi) 241 Bar (3500 psi)
Max Shear Force Up to 96 Tonnes Up to 120 Tonnes
Cutting Speed (Max Stroke) Up to 8 cycles/min Up to 8 cycles/min
Cutting Speed (40% Stroke) Up to 21 cycles/min Up to 21 cycles/min
Cutting Capacity (Mild Steel 43A):
