McIntyre 320 - Electrical Cable Schedule - Three Phase; Jmc001; Jmc002

32
320/407/500/600.41912-ENG

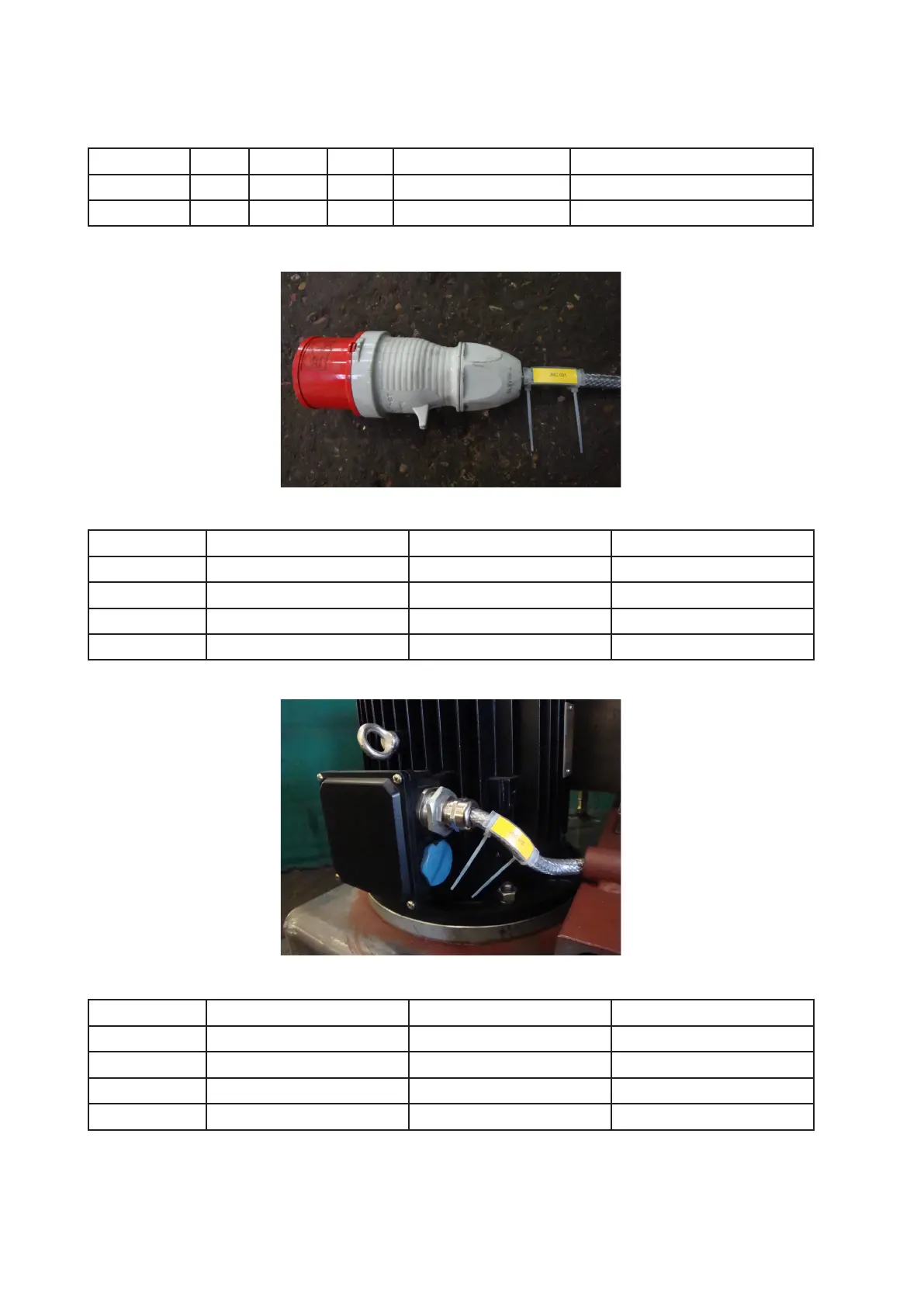

6.2. Electrical Cable Schedule - Three Phase
Cable No. Size Cores Cable Source Destination
JMC001 4.0 3 SY 32A Plug Control Panel Isolator
JMC002 4.0 3 SY Starter Relay Pump Motor
6.2.1. JMC001
Source: 32A Plug Destination: Control Panel Isolator
Core No. Plug Terminal No. Isolator Terminal No. Function
Earth Earth Earth Earth
1 1 L1 Power Supply
2 2 L2 Power Supply
3 3 L3 Power Supply
6.2.2. JMC002
Source: Starter Relay Destination: Pump Motor
Core No. Relay Terminal No. Motor Terminal No. Function
Earth Earth Earth Earth
1 2 U1 Motor Winding
2 4 V1 Motor Winding
3 6 W1 Motor Winding
Note: Connect Motor Terminals for Motor rotation to be CLOCKWISE at
fan end.
