Extreme 9" Monitor/DVR System© 2014 McNeilus Truck and Manufacturing, Inc.
16
Main Menu Functions
Camera Settings
Enters the functions for camera set up. The system can hold a maximum of four (4) cameras.
• Mirror - reverse image shown left to right or right to left (if you want the mirror image to appear correctly in
the DVR recording, you will need to either A. change the camera mirror setting to ON (press OK to save the
change) or B. remove the threaded plug off the back of the camera. See Page 5 for more details) (Figure
4).
• Jump Setup - sets up the Jump function to “jump” or alternate among selected cameras (Figure 4). Allows
for a Jump 1 selection and a Jump 2 selection.
• Single video image, dual images, triple images, quadruple (quad) images, and DVR function
• In single video view, screen will display only one (1) channel image at a time (A, B, C, D)
• In dual video view, screen will display two (2) channel combination views such as A+B, A+C, A+D, B+C
• In triple video view, screen will display the combinations of A+(B+C), D+(B+C), (B+C)+A, (B+C)+D
• In quad video view, screen will display four (4) channel combination views at one time (A+B+C+D)
• NOTE: Cameras D and E are toggle cameras. You cannot view cameras D and E at the same time.

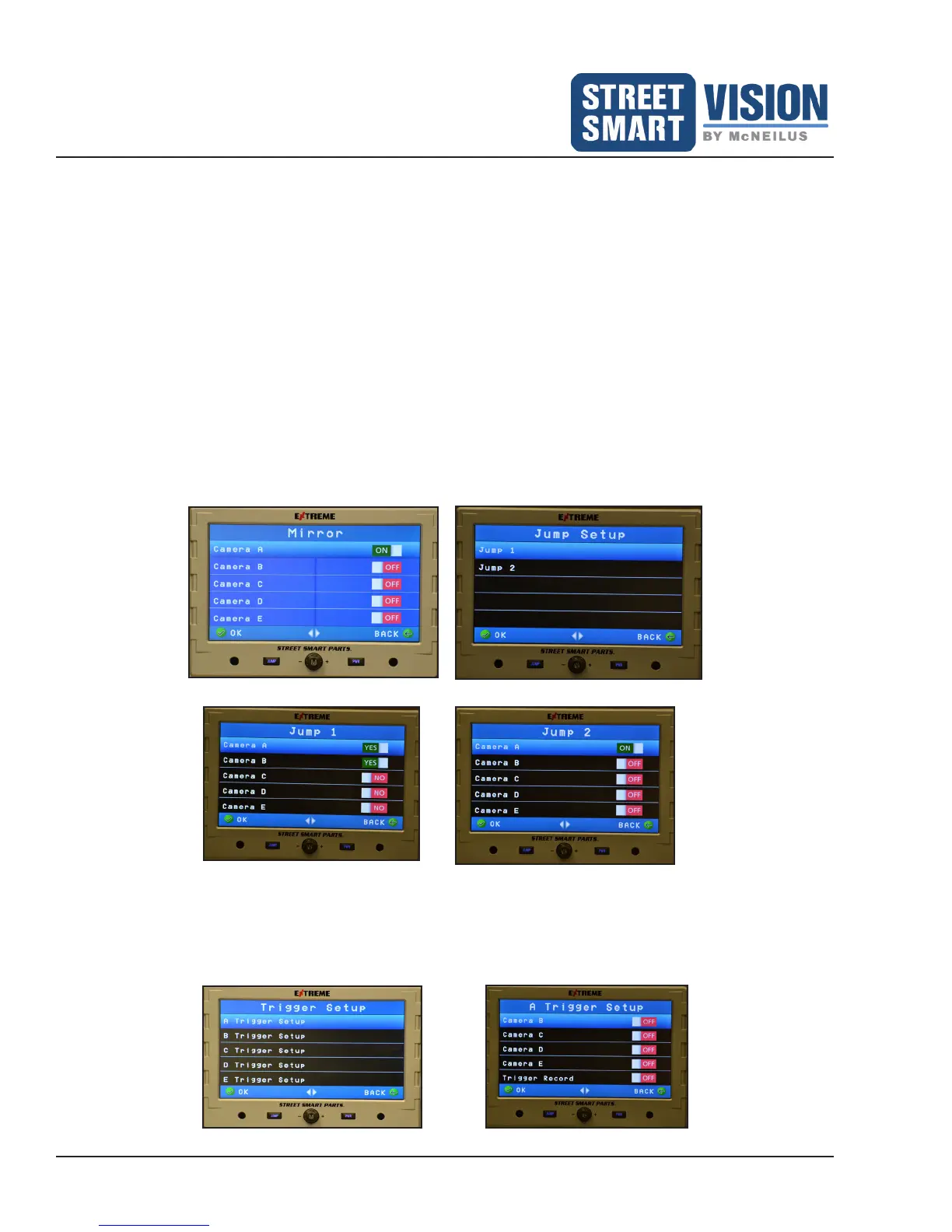

Figure 4: Mirror and Jump screens in the Camera Settings.
Jump 1 and Jump 2 screens.
• Trigger Setup - telling the monitor which image/camera(s) to display when a particular trigger wire is activated.
This set up is for the camera signied in the menu, plus any additional cameras you want to display, up to
four cameras. Distance grid function is only available if selecting the single camera conguration (Figure 4).
• Trigger Record: Select ON if you want the triggered camera to record when it appears on the screen.
Figure 5: Trigger Setup Main Menu and Trigger Setup for Camera (A).
