McNeilus 1487747 - Zero Radius

Extreme 9" Monitor/DVR System © 2014 McNeilus Truck and Manufacturing, Inc.
39

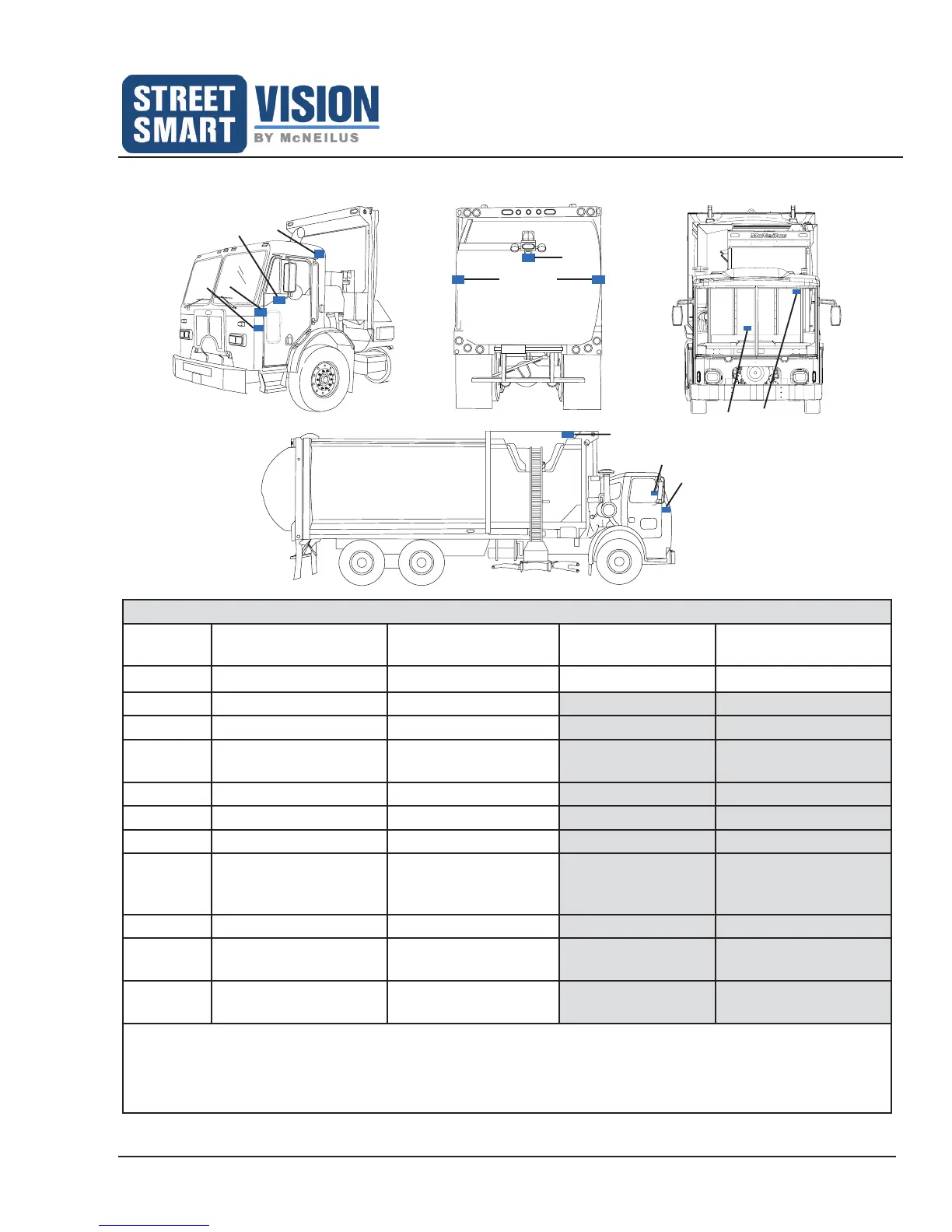

Camera Locations
Zero Radius
3
2
1
4
10
11
5
6
10
12
9
8
Zero Radius
Ref. No. Bracket Type Standard Bracket
For Smart Light
Mounting
For Big Bubble
Tailgate Mounting
1 Rear 1140988, 1235556 1260649, 1235556 1431792, 1321476
2 Alley Right 1260747
3 Alley Left 1260752
4 Hopper
1 3
1408134, 1408138,
1408136
5 Mirror Bolt to Door
2
1145490
6 Mirror Clamp to Tube
2
1143992
8 Driver Facing in Cab
4
1486114
9
Forward Drive Facing
in Cab
4
Dash Mount: 1178933
In Cab Ceiling Mount:
1166535
10 Cab Side Rear Facing 1486114
11
Right Side Cab
Mounted Side Facing
1470030
12
Left Side Cab Mounted
Side Facing
1530362
NOTE:
1
For reference number 4, the Hopper Camera is located on the Street Side in the front of the Hopper.
2
For reference numbers 5, 6, and 10, cameras can be placed on either side of the truck or on both sides.
3
When installing a hopper camera on a dump body truck, it is necessary to purchase an 82’ cable (P/N 1431526).
4
When installing reference numbers 8 and 9, it may be necessary to purchase a 16' cable (P/N 1433196).
For reference number 9, the IR on the camera must be turned off. See Page 5 for instructions to turn off IR.
