McNeilus 1487747 - Rear End Loader

Extreme 9" Monitor/DVR System © 2014 McNeilus Truck and Manufacturing, Inc.
37

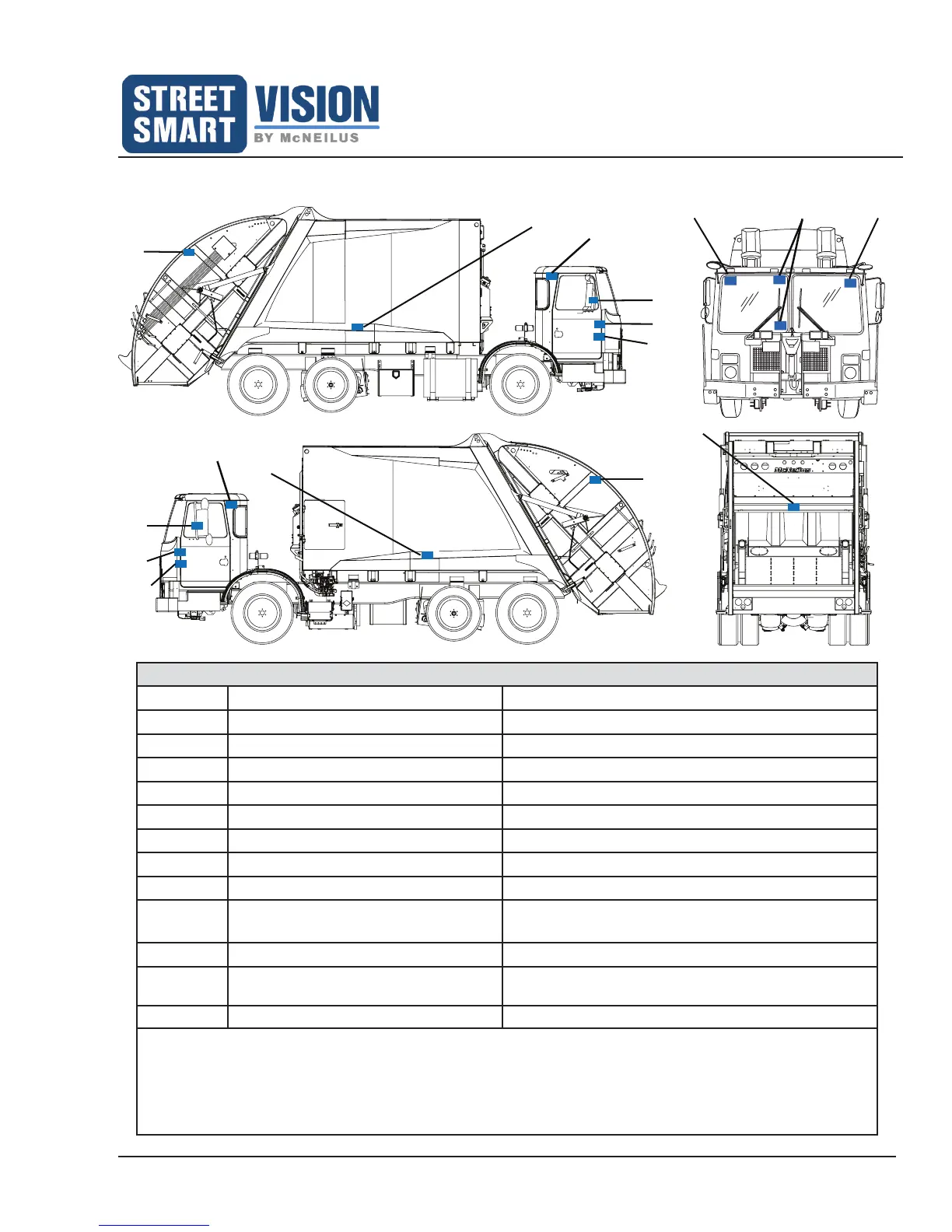

Camera Locations
Rear End Loader
1
2
6
7
3
10
11
7
6
4
5
10
12
88
9
Rear End Loader
Ref. No. Bracket Type Bracket
1 Rear
2
1166535
2 Alley Right Mounted to Tailgate
3 Alley Right 1178933
4 Alley Left Mounted to Tailgate
5 Alley Left 1178933
6 Mirror Bolt to Door 1145490
7 Mirror Clamp to Tube 1143992
8 Driver Facing in Cab
1
1486114
9 Forward Drive Facing in Cab
1
Dash Mount: 1178933
In Cab Ceiling Mount: 1166535
10 Cab Side Rear Facing
2
1486114
11 Right Side Cab Mounted Side Facing 1470030
12 Left Side Cab Mounted Side Facing 1530362
NOTE:
1
When installing reference numbers 8 and 9, it may be necessary to purchase a 16' cable (P/N 1433196).
For reference number 10, cameras can be placed on either side of the vehicle or on both sides.
For reference number 9, the IR on the camera must be turned off. See Page 5 for instructions to turn off IR.
2
For reference number 1, if the crossbeam on the tailgate has a hole in the center of it, use 1166535 bracket to
mount the camera inside the crossbeam. If the crossbeam does not have the hole, or you wish to have the camera
mounted outside the crossbeam, brackets 1484152 and 1484153 must be used in conjunction with each other.
