Extreme 9" Monitor/DVR System© 2014 McNeilus Truck and Manufacturing, Inc.
40

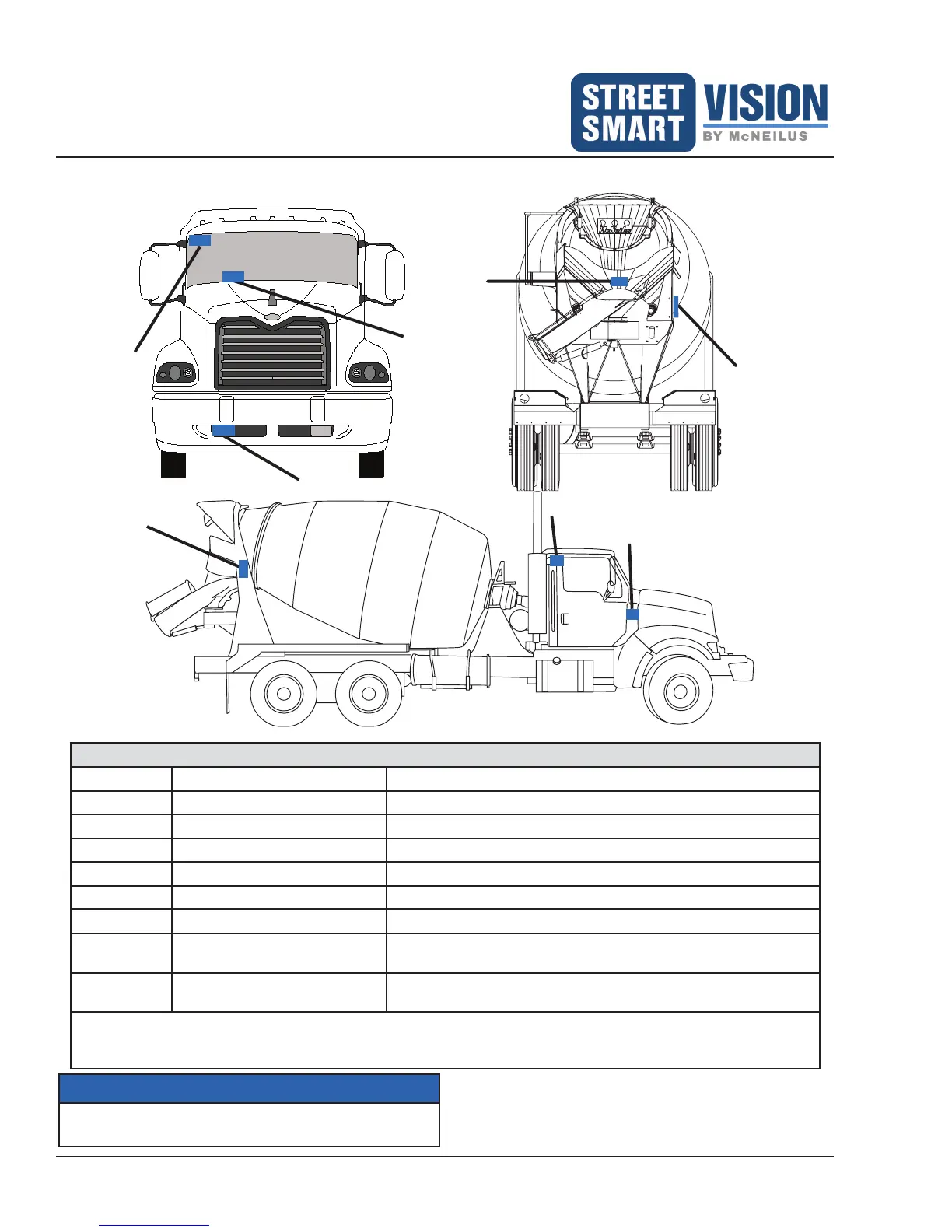

Camera Locations
Mixer
2
3
3
4
Shown on
side view
5
1
6
7
NOTE: Left side
mount (Ref. No.
8) same location
on left side of cab
Mixer
Ref. No. Bracket Location Bracket
1 Front Bumper 1166535
2 Chute Hopper 0084330
3 Rear Pedestal Mounted directly to the rear pedestal
4 Forward Drive Facing in Cab Mounted directly to the dashboard in the cab
5 Driver Facing in Cab 1486114
6 Cab Side Rear Facing 1486114
7
Right Side Cab Mounted Side
Facing
1470030
8
Left Side Cab Mounted Side
Facing
1530362
NOTE: When installing reference numbers 4 and 5, it may be necessary to purchase a 16' cable (P/N 1433196).
For reference number 6, cameras can be placed on either side of the truck or on both sides.
For reference number 9, the IR on the camera must be turned off. See Page 5 for instructions to turn off IR.
Do NOT get muriatic acid or any other acid on
cameras when rinsing concrete from the Mixer.
IMPORTANT
