McNeilus 1487747 - Front End Loader

Extreme 9" Monitor/DVR System© 2014 McNeilus Truck and Manufacturing, Inc.
36

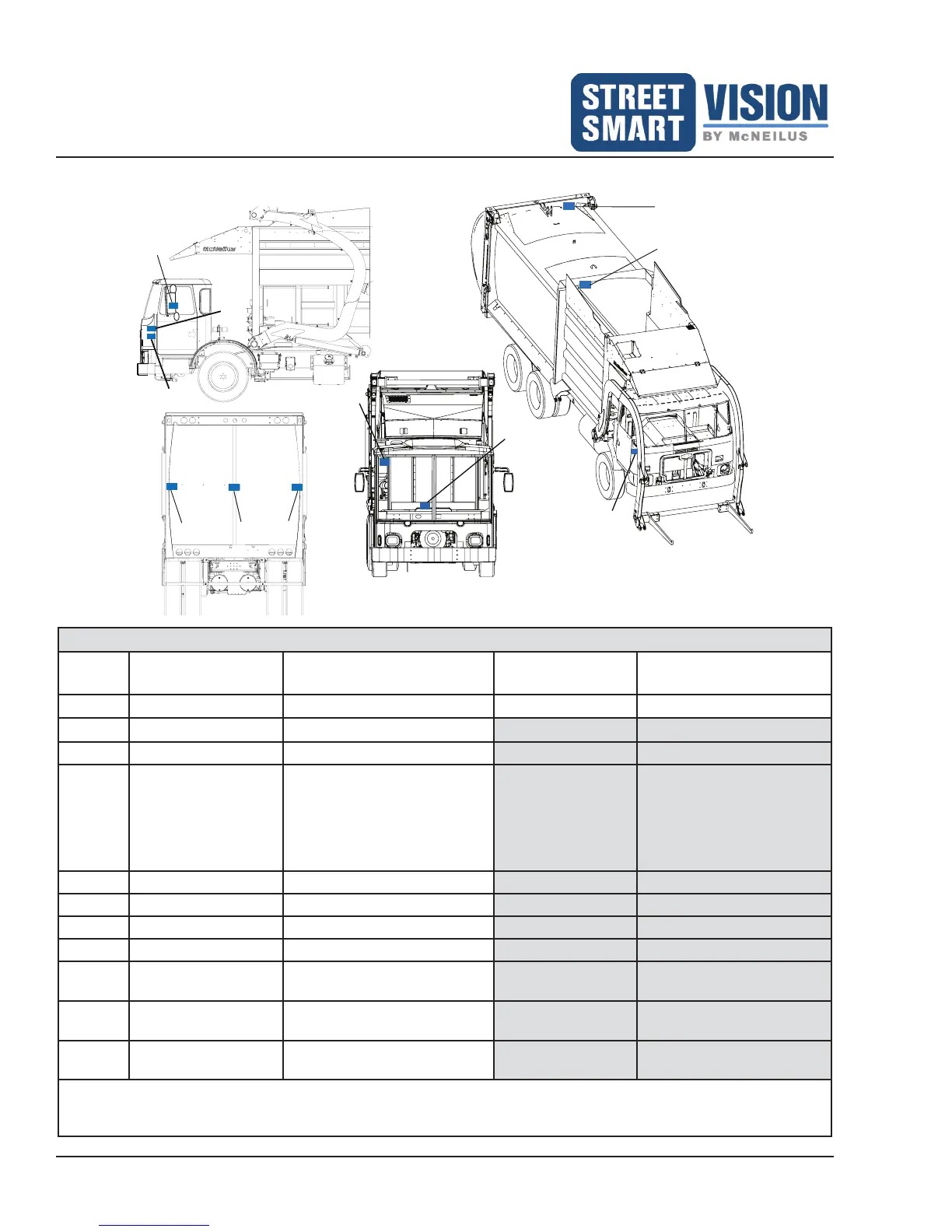

Camera Locations
Front End Loader
1
3
2
4
5
10
7
6
11
8
9
Front End Loader
Ref. No. Bracket Type Standard Bracket
For Smart Light
Mounting
For Big Bubble Tailgate
Mounting
1 Rear 1140988, 1235556 1260649, 1235556 1431792, 1321476
2 Alley Right 1260747
3 Alley Left 1260752
4 Hopper
2
• Atlantic: 1483269 and
1483253 hopper camera
guard
• Contender and Pacic Ultra:
1494170 and 1483253
hopper camera guard
5 Top Door Atlantic 1428569
6 Mirror Bolt to Door
1
1145490
7 Mirror Clamp to Tube
1
1143992
8 Driver Facing in Cab 1486114
9
Forward Drive Facing
in Cab
Dash Mount: 1178933
In Cab Ceiling Mount: 1166535
10
Right Side Cab
Mounted Side Facing
1470030
11
Left Side Cab
Mounted Side Facing
1530362
NOTE:
1
For reference numbers 6 and 7, cameras can be placed on either side of the vehicle or on both sides.
2
When installing a hopper camera on a dump body truck, it is necessary to purchase an 82’ cable (P/N 1431526).
For reference number 9, the IR on the camera must be turned off. See Page 5 for instructions to turn off IR.
