Extreme 9" Monitor/DVR System© 2014 McNeilus Truck and Manufacturing, Inc.
62
Preco Preview Radar System
• Detection Zone Set Up
Set up and test the PreView
®
Single Sensor system outdoors. It is important to make sure the sensor has a clear
eld of view, especially if it the detection zone set up must take place indoors. Two people are needed to set up
the detection zone.
1. With the parking brake applied, power up the PreView
®
system by turning on the vehicle's ignition and
placing the transmission in reverse. DO NOT start the engine unless it is necessary to engage reverse gear.
2. Make sure the SSV Extreme Monitor/DVR System display is illuminated and the system does not detect any
objects (all black/white indicator circles are off/not visible).
3. Have an assistant test the detection zone by walking in the direction of the arrows in approximately 3 ft.
(1M) increments, starting from direction 1, then 2, and nally 3 (see Figure 40).
4. Use the monitor to determine view points. Have the assistant place a trafc cone or other highly visible
object at the rst point of detection of the assistant on the monitor screen (Figure 40). Mark each point of
detection for each arrow direction. Repeat as necessary to conrm accurate detection zone.

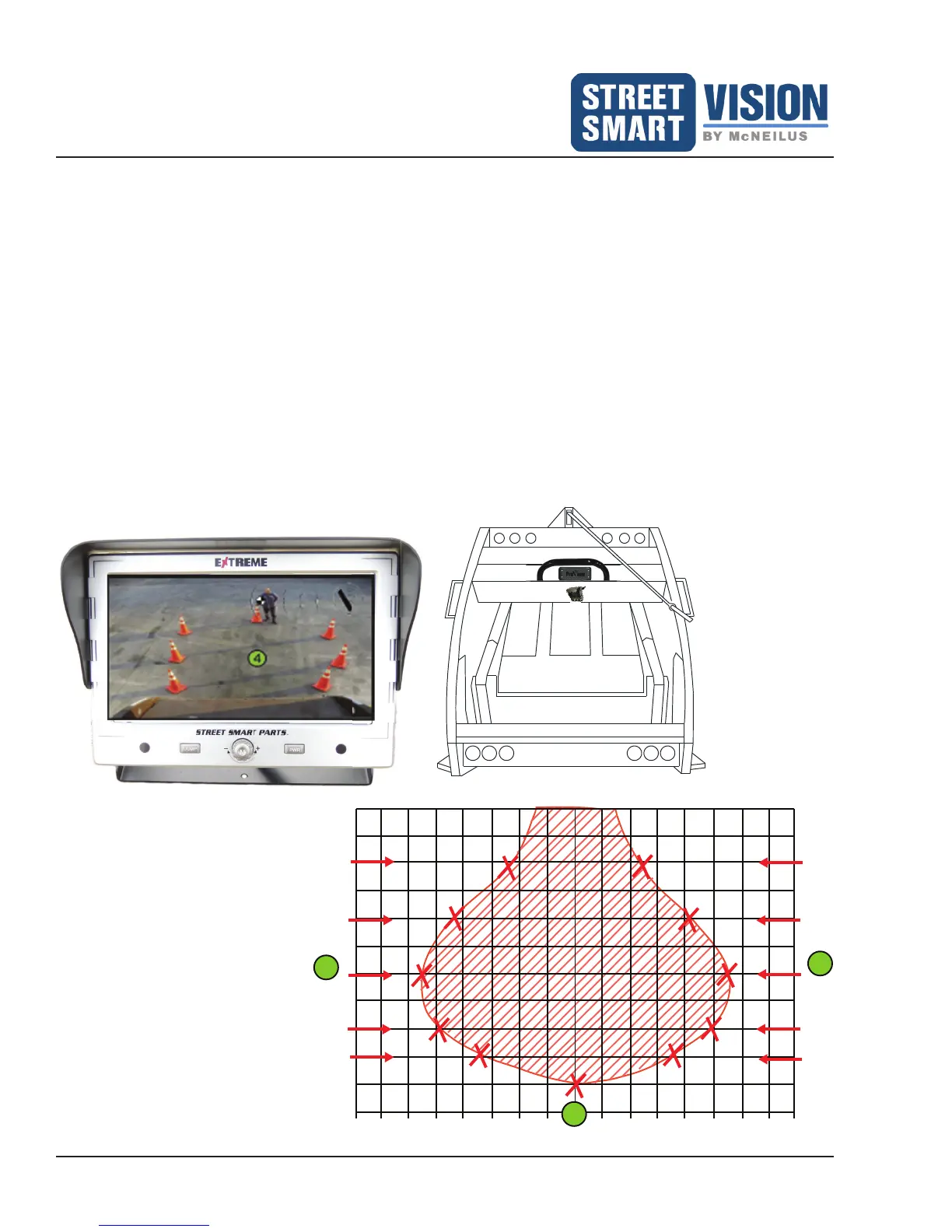

5. The nal detection zone, as viewed through the monitor, should look similar to Figure 40. The Xs indicate
the points of detection of the assistant on the monitor.
4
Approximate Pattern
1
2
3
4
5
1
2
3
Figure 40: Detection Zone as
viewed through the monitor.
