Extreme 9" Monitor/DVR System© 2014 McNeilus Truck and Manufacturing, Inc.
64
Preco Preview Radar System
• Mount the Dual PreView
®
Sensors on Front End or Side Loaders
• The PreView
®
sensors are typically mounted below the rear light frame rail on either the Front End or Side
loaders.
• Bolt or weld the sensor mounting brackets with the sensors underneath the frame rail. The 10 degree angle
of the brackets should be toward the center of the truck. See Figure 42.
Dual PreView Sensor
(P/N 1407329)
PreView
PreView
Camera
10°

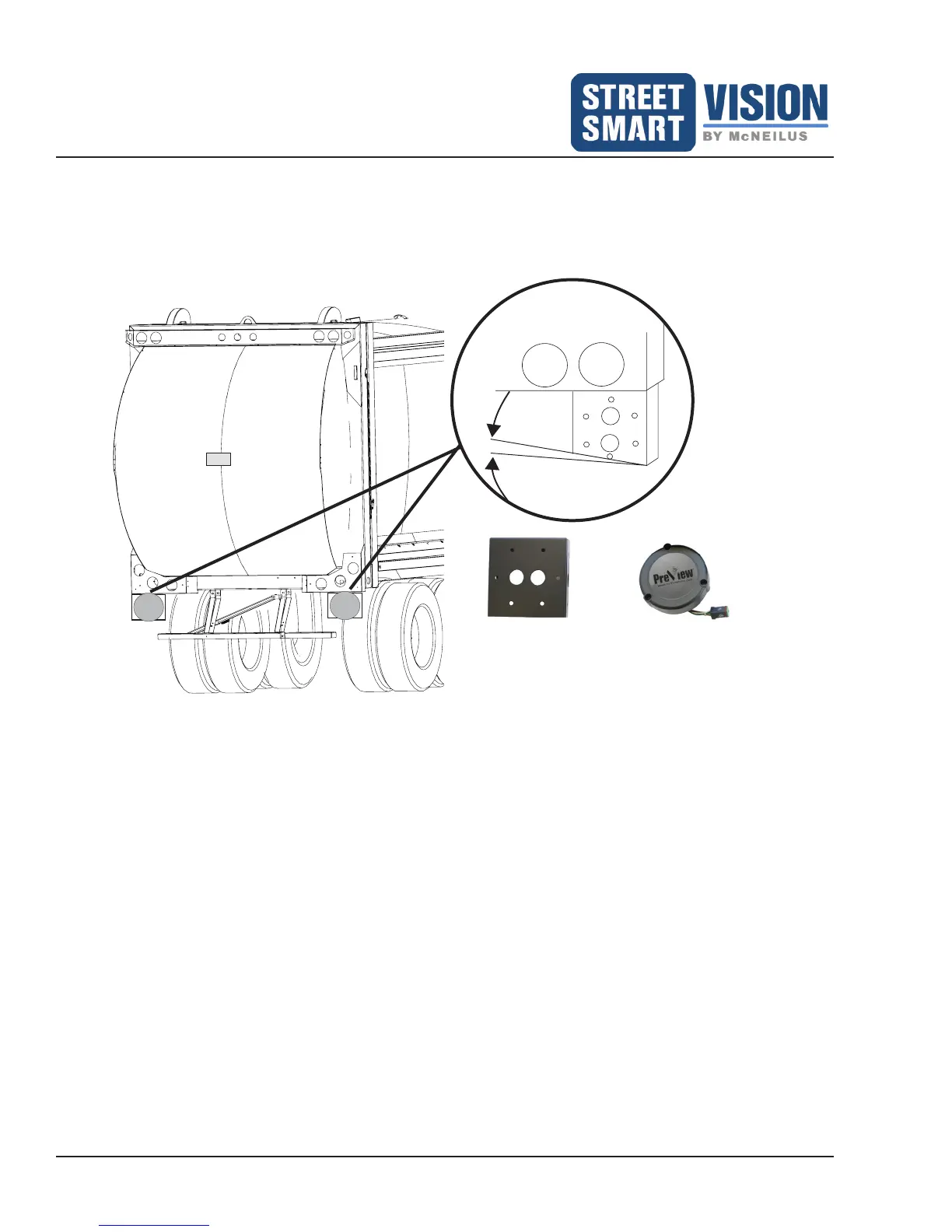

Figure 42: Mount the Dual PreView Sensor on Front End or Side Loaders.
Dual PreView Sensor
Bracket (P/N 1483959)
