1.1.2 Indicator Lights

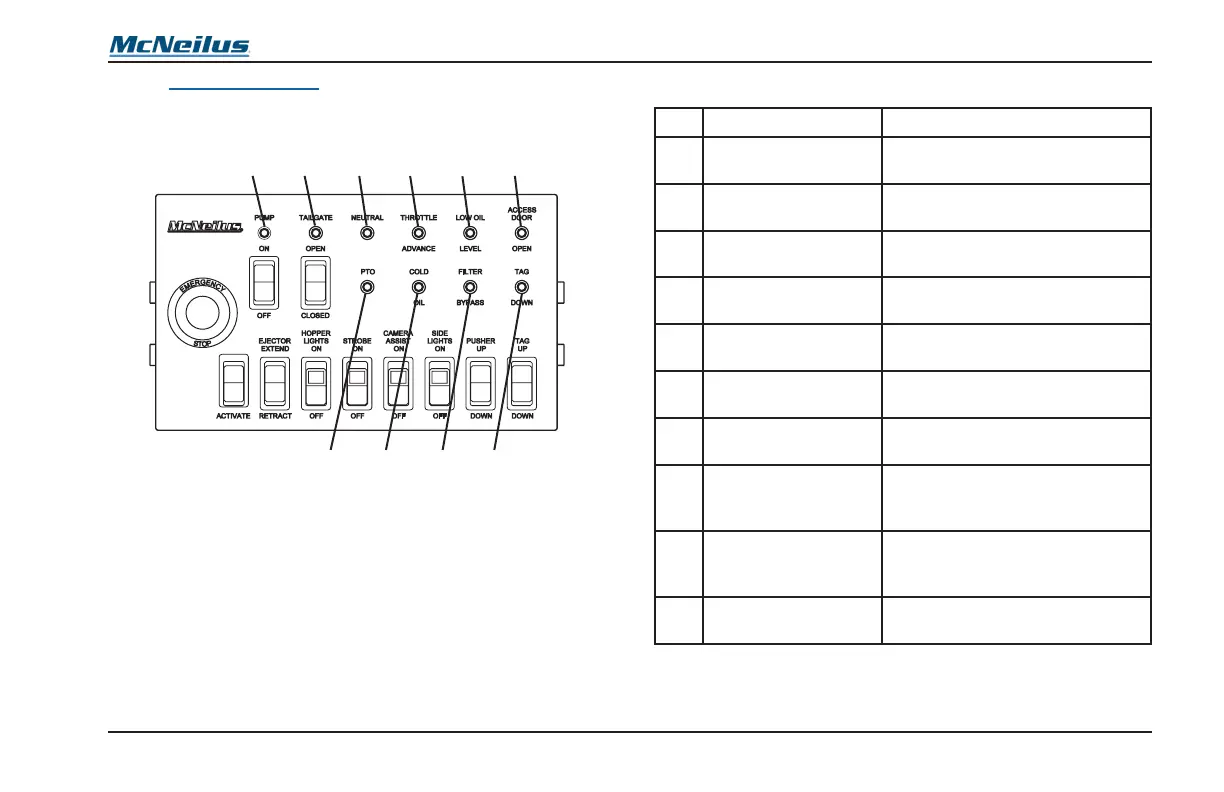

The indicator lights (Figure 8) display the status of various
functions.
1 23 54 6
78910
Figure 8
The following table describes each item shown in Figure 8.
No. Position Normal Use or Reading
1
PUMP ON Indicator
Light
Light indicates when the pump is
ON.
2
TAILGATE OPEN
Indicator Light
Light indicates when tailgate is not
in the CLOSED position.
3
NEUTRAL Indicator
Light
Light indicates when the
transmission is in NEUTRAL.
4
THROTTLE ADVANCE
Indicator Light
Light indicates when the throttle
advance is being used.
5
LOW OIL LEVEL
Indicator Light
Light indicates that the hydraulic oil
level is low.
6
ACCESS DOOR
OPEN Indicator Light
Light indicates when the access
door is not in the CLOSED position.
7
TAG DOWN Indicator
Light
Light indicates when the tag axle is
DOWN.
8
FILTER BYPASS
Indictor Light
Light indicates when the hydraulic
lter is restricted and is being
bypassed.
9
COLD OIL Indicator
Light
Light indicates when the hydraulic
oil is cold and is not sufciently
warmed up.
10 PTO Indicator Light
Light indicates when the PTO is
engaged.
