4.0 Optional Equipment
4.1 Residential Cart Tipper Panel
Controls for the cart tipper panel option are typically located
externally on the back of the truck, and consist of one or two
dump panels that can be attached in the center (for one) or
side-by-side (for two). The function is controlled by the cart
tipper lever, which is located at the rear of the vehicle on the
curb side.
WARNING
Be sure non-operator personnel are clear of the
hopper areas when operating the cart dump
panel. Serious personal injury or death may
result if someone is near the cart when the
function is operating.
1. PULL the cart tipper lever up to dump the residential cart
contents into the hopper (Figure 27).
2. PUSH the cart tipper lever down to lower the cart to the
ground.

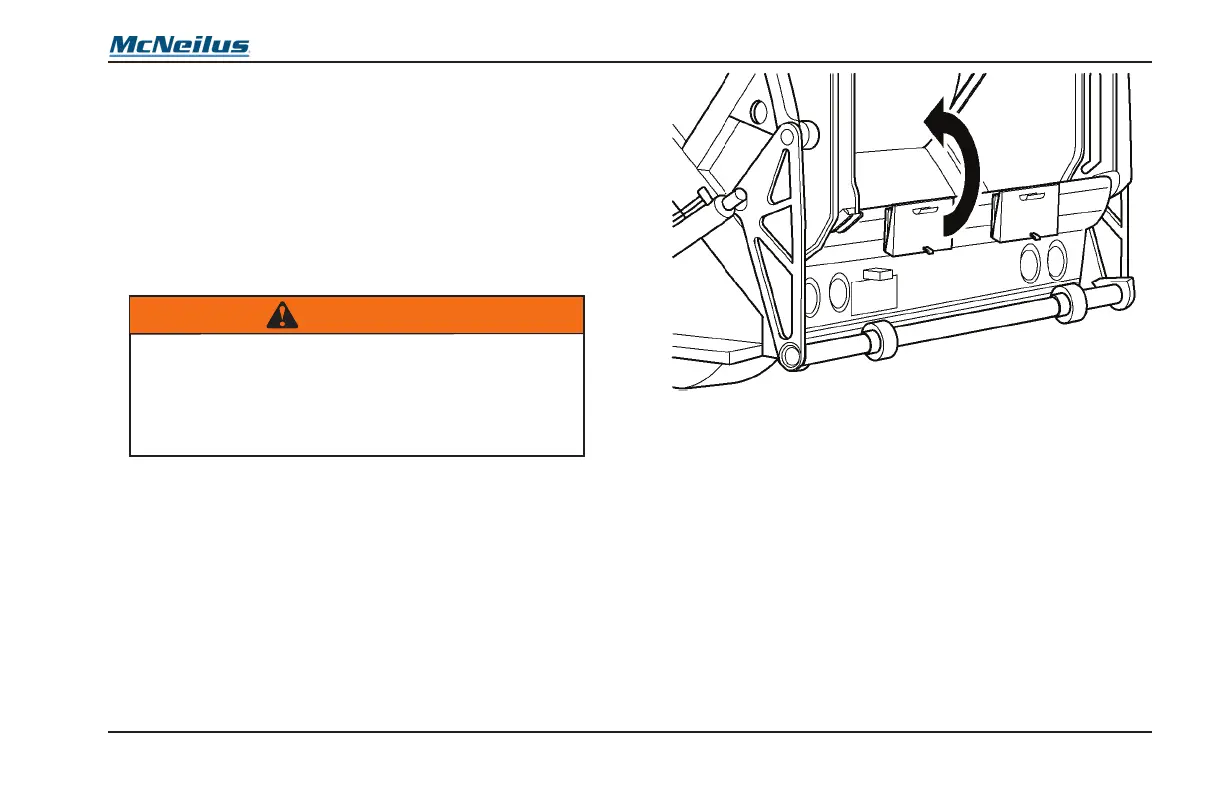

Figure 27
Operation
