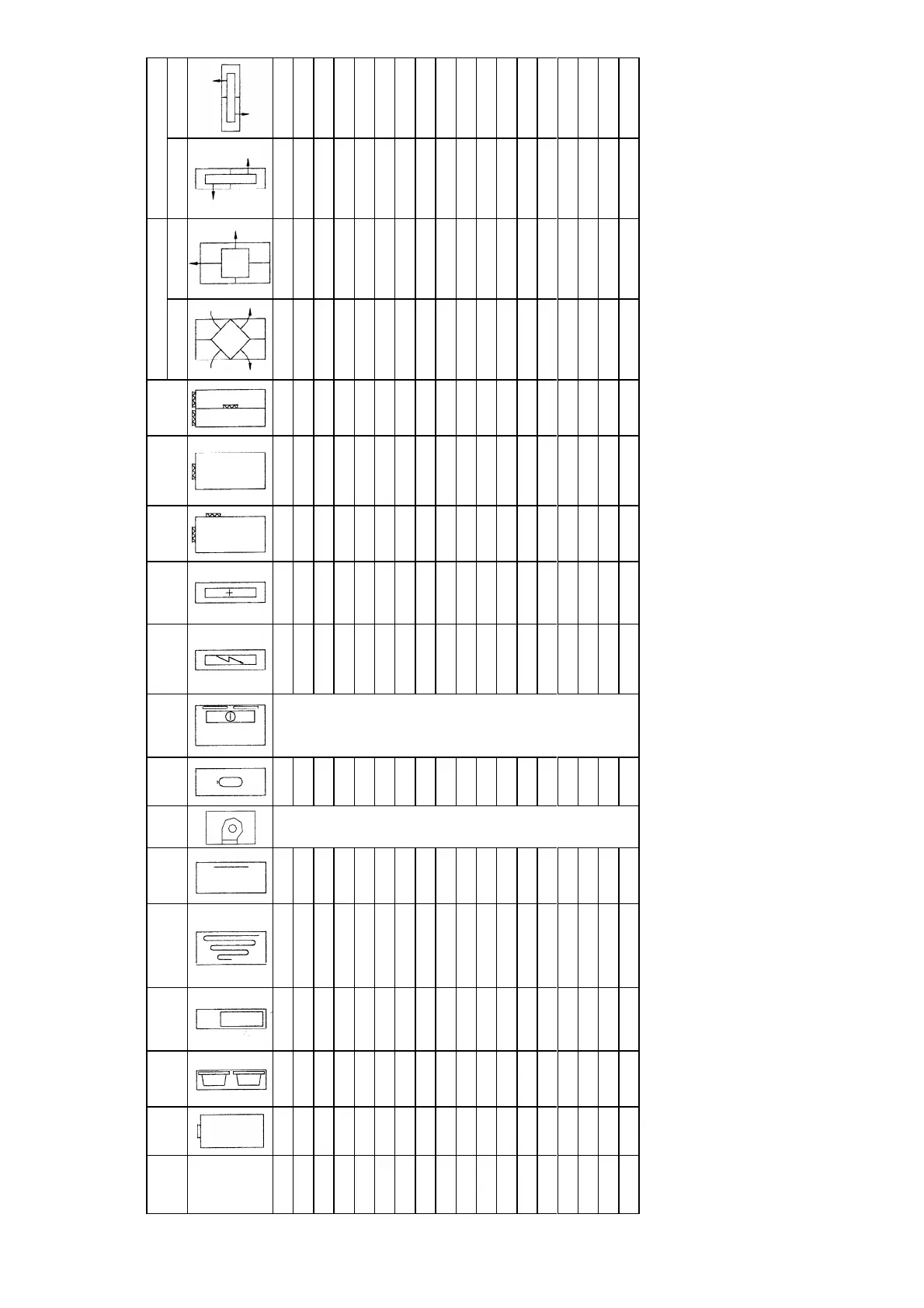

Sections Length Modulus Table
Length (M)
plate heat recovery rotary wheel heat recovery
Section
name
exhaust bag filter access door sound attenuation diffuser fan humidifier
cooling coil
prefilter
electric heating heating coil mixing box
secondary
mixing box
diffluence
scheme A scheme B scheme A scheme B
air flow
(CMH)
5000 4M 4M 4M 5M~7M 4M 4M 2M 2M 4M 3M 8M 8M 6M 4M 10M
10000 4M 4M 4M 5M~7M 4M 4M 2M 2M 4M 3M 8M 18M 12M 4M 14M
15000 4M 4M 4M 5M~7M 4M 4M 2M 2M 4M 3M 8M 18M 12M 4M 16M
20000 6M 4M 6M 5M~7M 6M 4M 2M 2M 6M 4M 12M 18M 12M 5M 18M
25000 6M 4M 6M 5M~7M 6M 4M 2M 2M 6M 4M 12M - - 5M 20M
30000 6M 4M 6M 5M~7M 6M 4M 2M 2M 6M 4M 12M - - 5M -
35000 6M 4M 6M 5M~7M 6M 4M 2M 2M 6M 4M 12M - - 5M -
40000 6M 4M 6M 5M~7M 6M 4M 2M 2M 6M 4M 12M - - 5M -
45000 8M 4M 6M 5M~7M 6M 4M 2M 2M 8M 4M 16M - - 5M -
50000 8M 4M 6M 5M~7M 6M 4M 2M 2M 8M 4M 16M - - 5M -
55000 8M 4M 6M 5M~7M 6M 4M 2M 2M 8M 4M 16M - - 5M -
60000 8M 4M 6M 5M~7M 6M 4M 2M 2M 8M 5M 16M - - 5M -
65000 10M 4M 6M 5M~7M 6M 4M 2M 2M 10M 5M 20M - - 5M -
70000 10M 4M 6M 5M~7M 6M 4M 2M 2M 10M 5M 20M - - 5M -
75000 10M 4M 6M 5M~7M 6M 4M 2M 2M 10M 5M 20M - - 5M -
80000 10M 4M 6M 5M~7M 6M 4M 2M 2M 10M 5M 20M - - 5M -
85000 10M 4M 6M 5M~7M 6M 4M 2M 2M 10M 5M 20M - - 5M -
90000 10M 4M 6M 5M~7M 6M
Please refer to fan section dimension table
4M
Please refer to coil section dimension table
2M 2M 10M 5M 20M - - 5M -
Notes :
1) M = 160mm
2) Section length = Section length modulus x 160 + 50 (mm)
3) The total length of the unit = ? (All the section length modulus) x 160 + The quantities of sections x 50 (mm)
4) The principle to define the length modulus of the section is choosing the smallest modulus because there are multiple choices for the same airflow
