McQuay MicroTech II - Figure 13. Mounting Detail

IM 781-2 Page 15

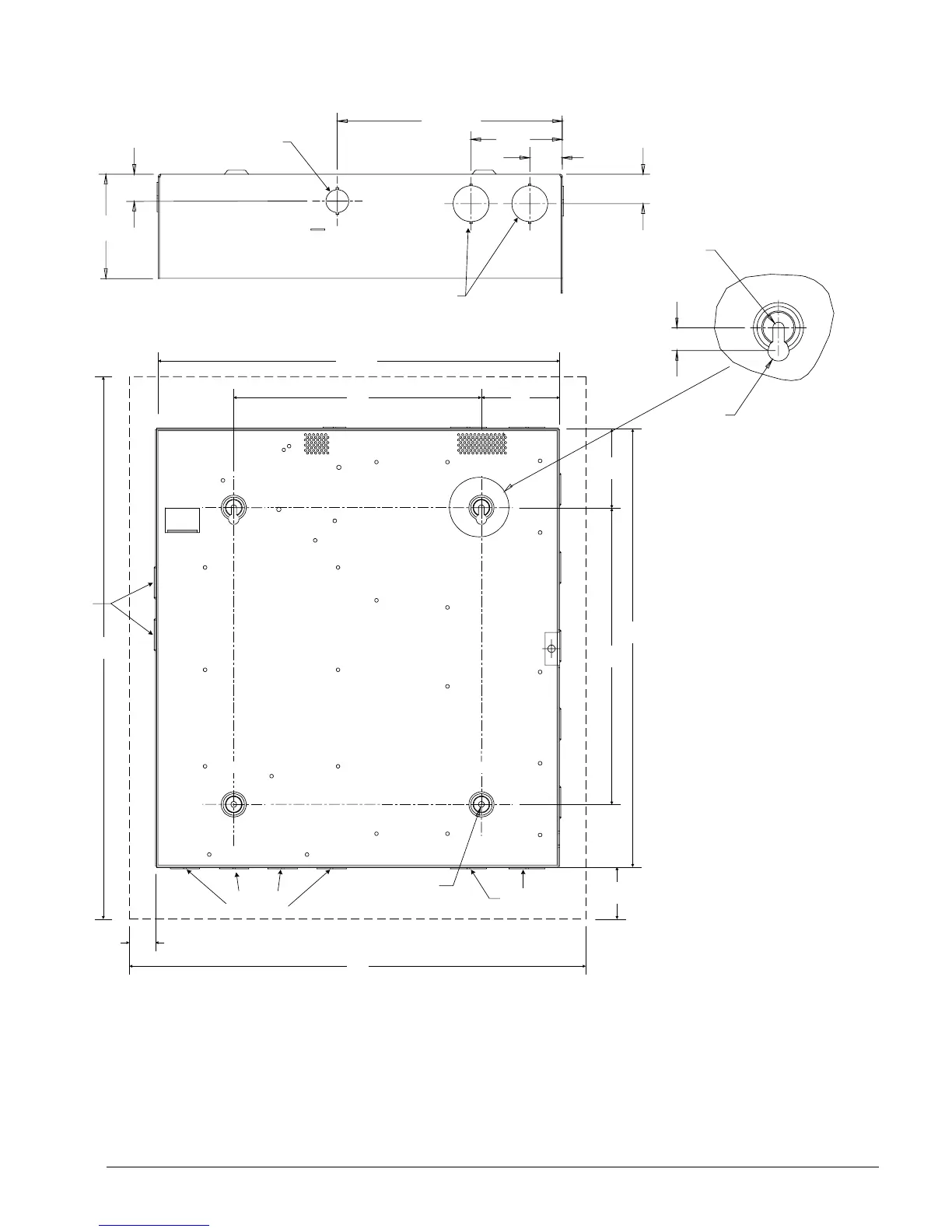

Figure 13. Mounting Detail
0.218
(5.5)
0.406
(10.3)
0.438
(11)
DETAIL
KEYHOLE
MTII-UC-1/MTII-UC-2
MOUNTING DETAIL
3/4" CONDUIT
KNOCKOUTS
NOTES:
1. ALLOW MINIMUM OF 1 " CLEARANCE AROUND ALL SIDES OF UNIT FOR COOLING.
2. ALLOW MINIMUM OF 24" IN FRONT OF UNIT FOR DOOR OPENING.
3. MOUNT ONLY WITH IN POSITION SHOWN (BATTERY AND TRANSFORMER AT TOP).
4. DO NOT BLOCK AIR FLOW BEHIND UNIT.
5. DIMENSIONS ARE IN INCHES (MM).
3/4" CONDUIT
KNOCKOUTS
(5 TOTAL THIS SIDE)
1/2" CONDUIT KNOCKOUT
FOR AC POWER ENTRY
1" CONDUIT
KNOCKOUTS
8.63 (219)
4.00
(102)
1.25
(31.8)
1.130
(29)
3.5 (89)
1.030
(26)
0.218
(5.5)
9.50
(241)
3.00
(76)
3.05
(77)
11.375
(289)
15.5 (394)
16.846
(428)
1" CONDUIT
KNOCKOUTS
3/4" CONDUIT
KNOCKOUTS
17.5
(444)
1.00
(25.4)
2.00
(51)
20.8
(528)
MINIMUM CLEARANCE AREA
