26 McQuay IM 672-3
Service and Maintenance
Front Load Filter Option
Front loaded filter options require that the filters be removed
and replaced from inside the unit.
To remove filters, rotate the wire clips. This releases both the
prefilter and the final filter. When installing clean filters, check
to verify the filters are fully seated in the frame. See Figure 42.

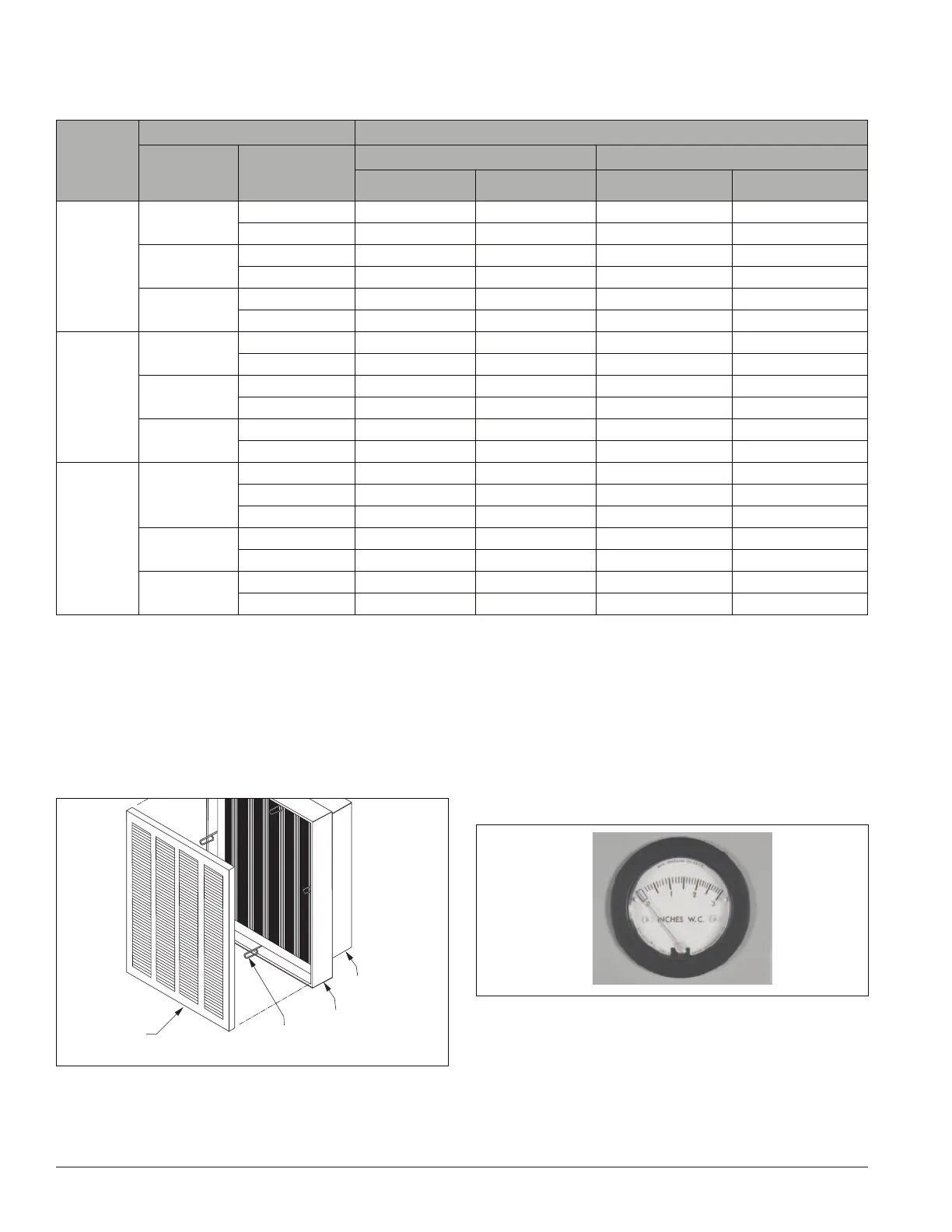

Figure 42: Frame and filters with holding clips
Filter Gauges
Filter gauges indicate pressure drop for installed filters.
Table 16 shows the typical filter pressure drop for clean filters
at rated air flow. The tables also show a final pressure drop for
front loaded filters.
Where a single filter gauge is used, the prefilters can be
removed to check the pressure drop of the final filters.
Figure 43: Filter gauge
Table 15: Belt deflection force (per Browning specifications)
Cross
section
Sheave diameter (in) Deflection force (lbs)
Smallest
sheave
diameter range
rpm
range
Cross section A, B, 5V Cross section AX, BX, 5VX
Used belt New belt Used belt New belt
A, AX
3.0 to 3.6
1000 to 2500 3.7 5.5 4.1 6.1
2501 to 4000 2.8 4.2 3.4 5.0
3.8 to 4.8
100 to 2500 4.5 6.8 5.0 7.4
2501 to 4000 3.8 5.7 4.3 6.4
5.0 to 7.0
1000 to 2500 5.4 8.0 5.7 9.4
2501 to 4000 4.7 7.0 5.1 7.6
B, BX
3.4 to 4.2
850 to 2500 4.9 7.2
2501 to 4000 4.2 6.2
4.4 to 5.6
860 to 2500 5.3 7.9 7.1 10.5
2501 to 4000 4.5 6.7 7.1 9.1
5.8 to 8.6
860 to 2500 6.3 9.4 8.5 12.6
250 to -4000 6.0 8.9 7.3 10.9
5V, 5VX
4.4-6.7
500-1749 10.2 15.2
1750-3000 8.8 13.2
3001-4000 5.6 8.5
7.1-10.9
500-1740 12.7 18.9 14.8 22.1
1741-3000 11.2 16.7 13.7 20.1
11.8-16.0
500-1740 15.5 23.4 17.1 25.5
1741-3000 14.6 21.8 16.8 25.0
F i l t e r
F r a m e
R o t a t e
W i r e C l i p s
P r e f i l t e r
F i n a l
F i l t e r
