McQuay WDC User Manual

Product Manual PM WSC/WDC 43
Marine Water Boxes
Marine water boxes are an available option on all evaporator and condenser sizes. Epoxy coating of the water
boxes and clad tube sheets are available for extreme duty applications.

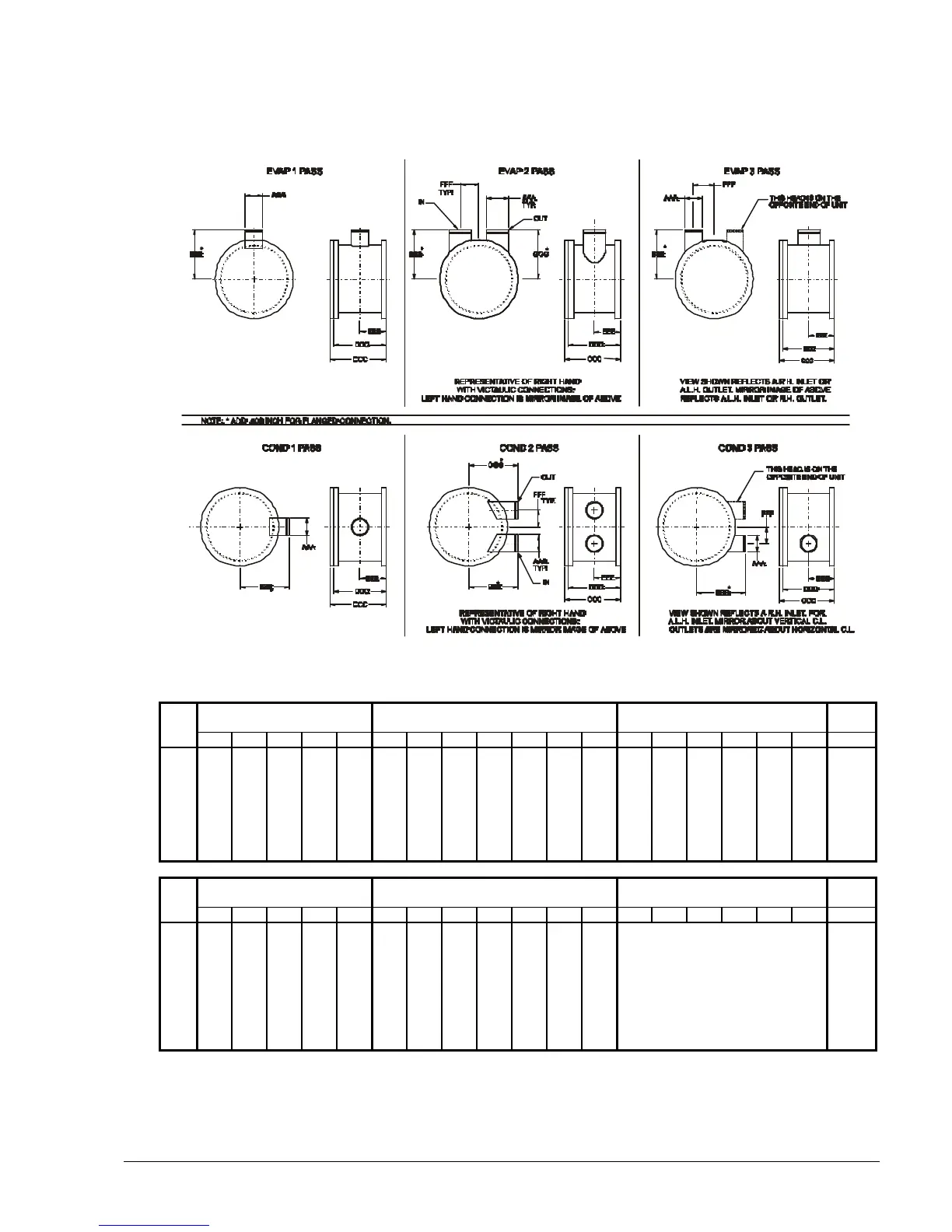

Dimensions with Victaulic or Flanged Connections
150 PSI Non-ASME - Victaulic Connection
1 PASS 2 PASS 3 PASS
Return
Head
Evap.
Dia.
'AAA' 'BBB' 'CCC 'DDD' 'EEE' 'AAA' 'BBB' 'CCC' 'DDD' 'EEE' 'FFF' 'GGG' 'AAA' 'BBB' 'CCC' 'DDD' 'EEE' 'FFF' 'UU'
E18 8.625 15.00 19.25 18.00 9.00 6.625 15.00 19.25 18.00 9.00 4.78 15.00 4.500 15.00 19.25 18.00 9.00 5.85 6.50
E20 8.625 16.00 19.25 18.00 9.00 6.625 16.00 19.25 18.00 9.00 5.63 16.00 4.500 16.00 19.25 18.00 9.00 6.69 7.00
E22 10.750 17.00 21.25 20.00 10.00 8.625 17.00 21.25 20.00 10.00 5.59 23.00 5.563 17.00 21.25 20.00 10.00 7.12 7.50
E26 10.750 19.00 21.25 20.00 10.00 8.625 19.00 21.25 20.00 10.00 7.07 19.00 6.625 19.00 21.25 20.00 10.00 8.07 8.38
E30 14.000 21.00 28.50 26.50 13.25 10.750 21.00 28.50 26.50 13.25 8.13 21.00 6.625 21.00 28.50 26.50 13.25 10.19 7.50
E36 16.000 24.00 30.25 28.00 14.00 12.750 24.00 30.25 28.00 14.00 9.75 24.00 8.625 24.00 30.25 28.00 14.00 11.81 9.44
E42 20.000 27.00 32.50 30.00 15.00 14.000 27.00 32.50 30.00 15.00 11.63 27.00 10.750 27.00 32.50 30.00 15.00 13.25 10.50
E48 24.000 30.00 39.50 36.50 18.25 18.000 30.00 39.50 36.50 18.25 12.50 30.00 12.750 30.00 39.50 36.50 18.25 15.13 13.22
1 PASS 2 PASS 3 PASS
Return
Head
Cond.
Dia.
'AAA' 'BBB' 'CCC 'DDD' 'EEE' 'AAA' 'BBB' 'CCC' 'DDD' 'EEE' 'FFF' 'GGG' 'AAA' 'BBB' 'CCC' 'DDD' 'EEE' 'FFF' 'UU'
C16 8.625 14.00 15.25 14.00 7.00 5.563 14.00 15.25 14.00 7.00 4.35 14.00 6.00
C18 8.625 15.00 19.25 18.00 9.00 6.625 15.00 19.25 18.00 9.00 4.78 15.00 6.50
C20 8.625 16.00 19.25 18.00 9.00 6.625 16.00 19.25 18.00 9.00 5.63 16.00 7.00
C22 10.750 17.00 21.25 20.00 10.00 8.625 17.00 21.25 20.00 10.00 5.59 23.00 7.50
C26 10.750 19.00 21.25 20.00 10.00 8.625 19.00 21.25 20.00 10.00 7.07 19.00 8.38
C30 14.000 21.00 28.50 26.50 13.25 10.750 21.00 28.50 26.50 13.25 8.13 21.00 7.50
C36 16.000 24.00 30.25 28.00 14.00 12.750 24.00 30.25 28.00 14.00 9.75 24.00 9.44
C42 20.000 27.00 32.50 30.00 15.00 14.000 27.00 32.50 30.00 15.00 11.63 27.00 10.50
C48 24.000 30.00 39.50 36.50 18.25 18.000 30.00 39.50 36.50 18.25 12.50 30.00
Consult Factory
13.22
Note:
1. Dimensions in inches (mm).
2. Flanges are ANSI raised face. Mating flanges by others.
3. Some condensers with flanges may have staggered connections due to flange interference. Consult factory.
4. When built with flange connections instead of victaulic, the distance from the vertical centerline to the flange face is 0.5 inches more than
shown with victaulic (dimension D).
