March 2008 "3072RT / 3772RT / 3772RT HD" Service & Parts Manual - ANSI Specifications
Page 1-10

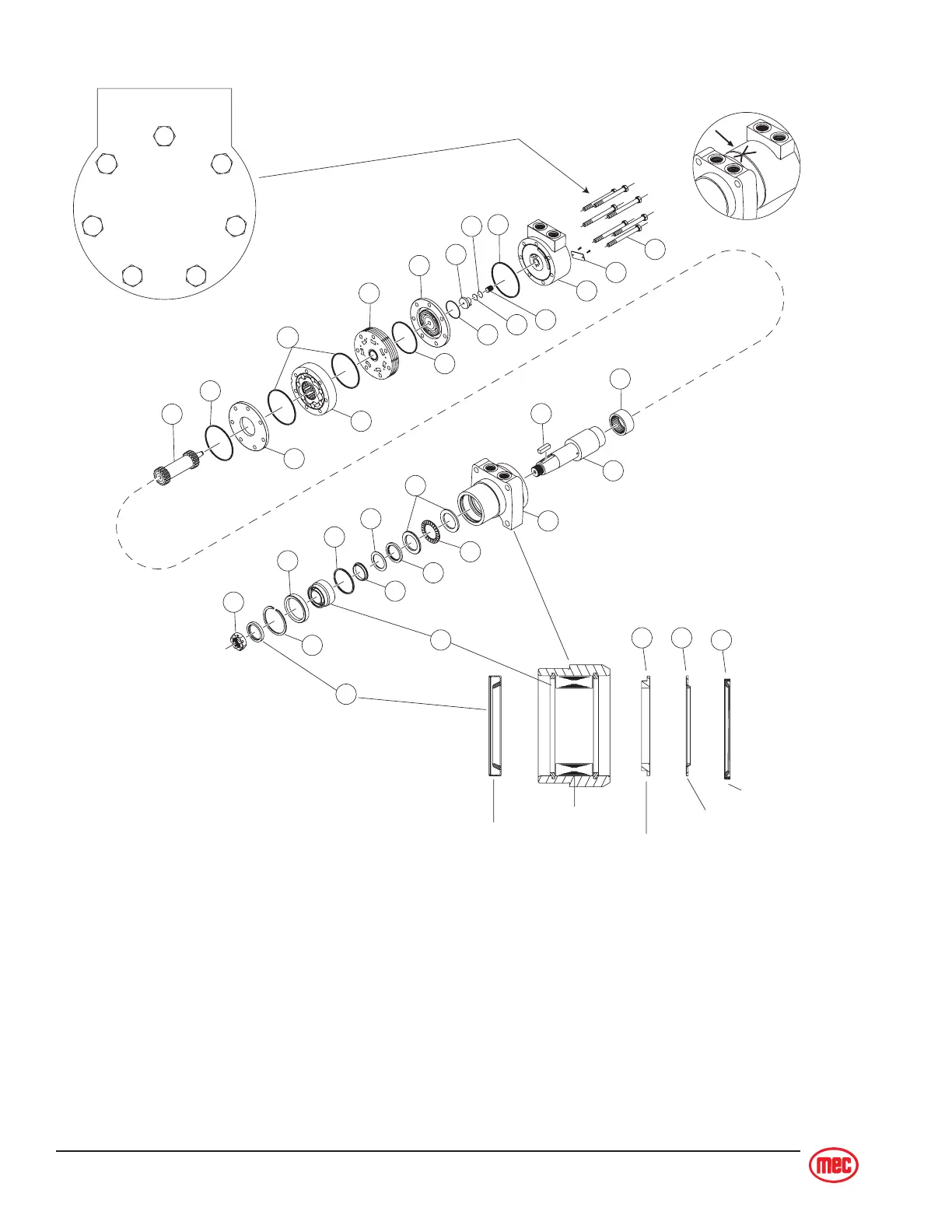

DT701 Series Motor Components
1. * Dust Seal
2. * High Pressure Seal
3. * Metal Backup Shim
4. * Backup Seal
5. * Shaft Seal
6. * Housing Seal
7. * Body Seals (3)
8. * Manifold Seal
9. * Commutator Seal
10. * O-Ring Seal
11. * Backup Seal
12. Retaining S
nap Ring
13. Bearing Spacer
14. 1.5" Bearing
15. Thrust Washers (2)
16. Thrust Bearing
17. Housing
18. Rear Housing Bearing
19. Drive Link
20. Divider Plate
21. Rotor Assembly
22. Manifold
23. Commutator Assembly
24. Endcover Piston
25. Piston Spring
26. Endcover
27. I.D. Tag Assembly
28. Assembly Bolts (7)
29. Shaft
30. Shaft Key
31.
Shaft Nut
* Contained in seal kit
6
28
27
26
25
10
9
8
21
20
7
7
11
24
23
19
22
18
29
17
30
15
16
5
3
14
12
4
2
13
31
1
BACKUP SEAL
1.5" BEARING
DUST SEAL
METAL BACKUP RING
SHAFT SEAL
43
5
1
6
3
7
2
5
4
TORQUE
SEQUENCE
“V” Marks for Reassembly
PRE-TORQUE = 10 FT LBS
FINAL TORQUE = 50 FT LBS
